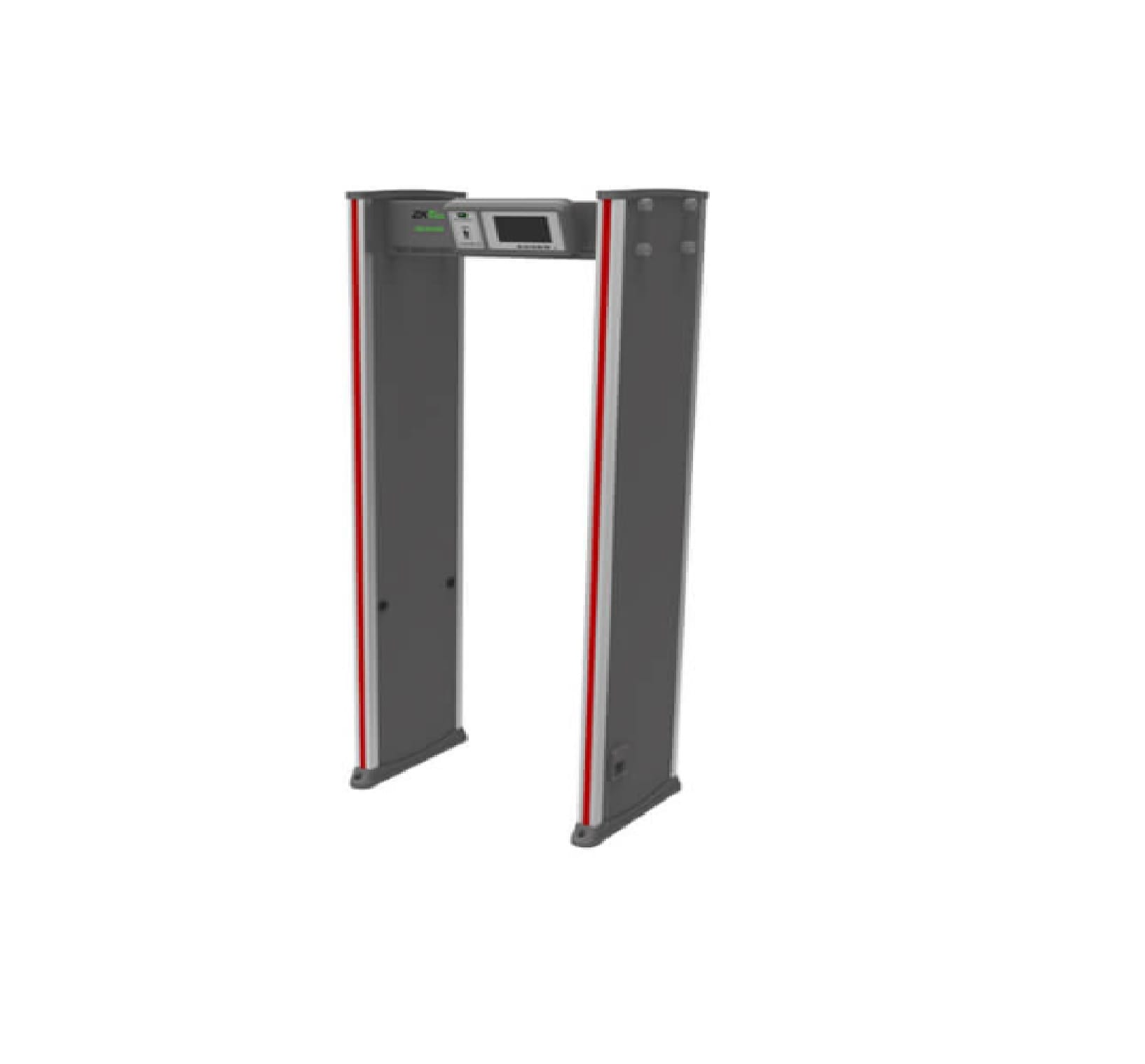

ZKTECO WALK-THROUGH METAL DETECTOR (ZK-D3180)
₱89,600.00
· Up to 33 detection zones and 500 sensitivity levels allow precise contraband detection.
· The 7-inch LCD display for easy set up.
· Compatible with ZK Metal Detector App/Software and ZKBio SIS for real-time monitoring and data logs.
· Different sensitivity levels can be set for both inbound and outbound.
· Clear threat indication with synchronous sound alert and LED indicator.
· Count the number of people entering and leaving separately.
· Linkage with entrance gate by relay
- Physical Keypad
5 keys
- Detection Zone
1 / 6 / 12 / 18 / 33 zones mode adjustable
- Sensitivity Level
500 levels
- Channel
100
- Smallest Metal Objects Detected
Φ22.25*T1.85 mm(Steel-nickel Alloy)
- Maximum Detection Distance
Vertical 20-2000mm
- Detection Sound Alert
16 types of alarm tones (adjustable)
0-100 levels of volume adjustable (Maximum volume 80 dB) - Detection Visual Indicator
2 sets of LEDs (red) are evenly distributed on the left and right door panels LED (Steady red= metal contraband detected)
- Throughput
> 40 persons per minute
- Self-diagnosis Program
Yes
- Detection Mode
Automatic Detection Mode / Infrared Detection Mode(default)
- Number of IR Groups
2
- Detected Contrabands
Ferrous and non-ferrous metal weapons
- Enclosure Material
Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC
- Power Supply
AC100V to 240V (DC12V/3A)
- Input Voltage
DC12V, POE (optional)
- Operating Current
1.2A
- Operating Power
14W
- Operating Time (Estimated)
24/7 operation capability (continuous operation)
- Operating Frequency
5.7KHz ~ 9.6KHz
- Operating Temperature
-20°C ~ 55°C
- Storage Temperature
-25°C ~ 60°C
- Operating Humidity
< 95% RH (non-condensing)
- Ingress Protection Rating
N/A (waterproof and dustproof)
N/A (vandal resistant) - Application Environment
Indoor
- Dimensions (L*W*H)
2226 * 845 * 580 (mm)
- Lane Size (L*W*H)
2000 * 710 * 498 (mm)
- Dimensions of Product with Packaging (L*W*H)
2280 * 347 * 660 (mm)
- Net Weight
46 kg
- Gross Weight
52kg
- Interface
Relay Output: YES
Network Interface: YES - Remote Control
Yes
- Certifications
CE, FCC, ISO9001
