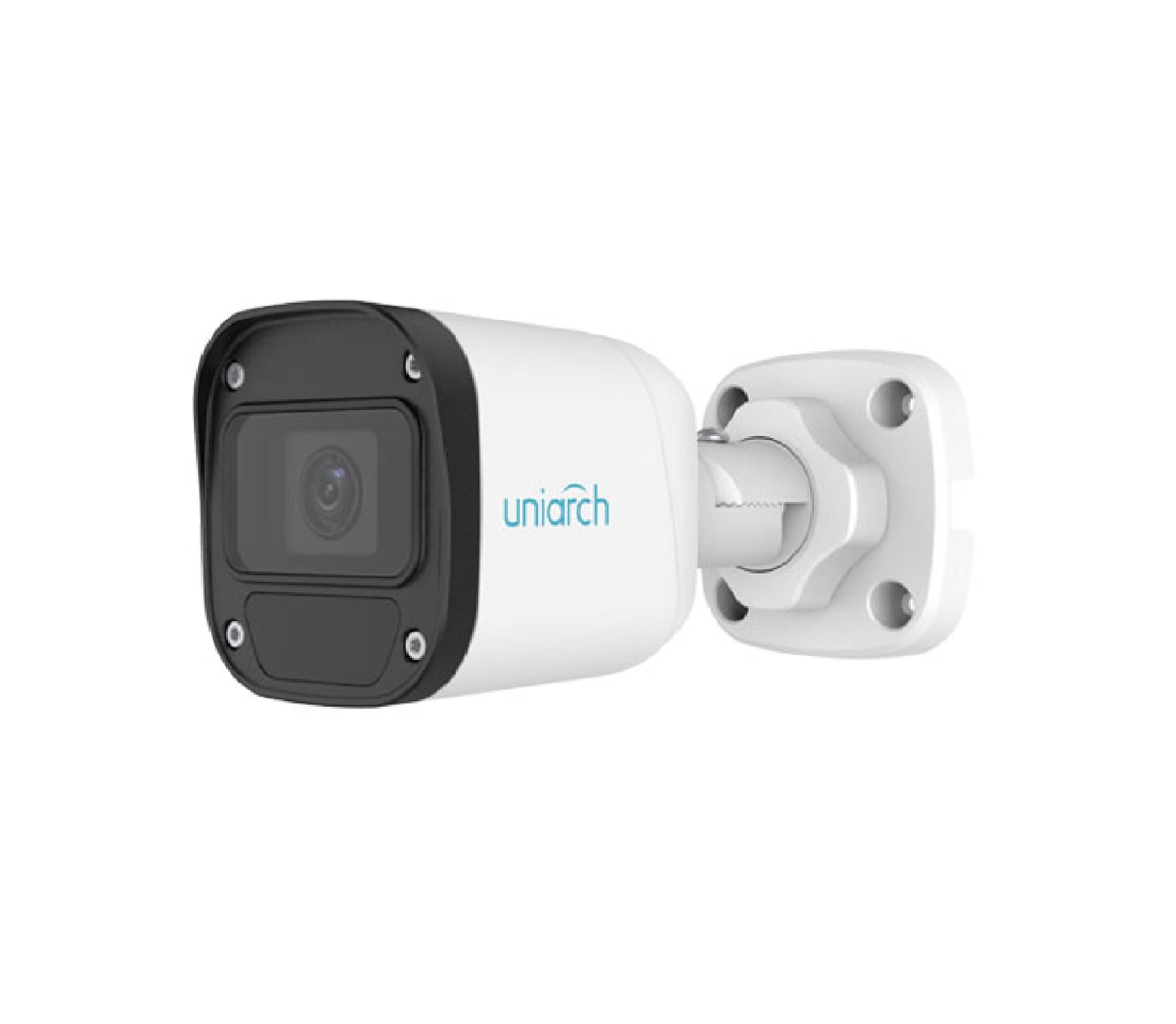

UNIARCH 2MP MINI FIXED BULLET NETWORK CAMERA WITH BUILT IN MIC (IPC-B122-APF28K)
₱2,500.00
• High quality image with 2MP,1/2.9’’ CMOS sensor
• 2MP(1920*1080)@25/20fps;720P (1280*720) @25/20fps
• Ultra 265, H.265, H.264
• 2D/3D DNR (Digital Noise Reduction)
• ROI (Region of Interest)
• ONVIF Conformance
• Smart IR, up to 30m (98ft) IR distance
• Support 128 GB Micro SD card
• 3-Axis
• Built-in Mic
• Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
• DC12V or PoE(IEEE 802.3af) power supply
• IP67
| Camera | ||||||||
| Sensor | 1/2.9″, 2.0 megapixel, progressive scan, CMOS | |||||||
| Minimum Illumination | Colour: 0.02Lux (F2.1, AGC ON) 0Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| WDR | DWDR | |||||||
| S/N | >52dB | |||||||
| Lens | ||||||||
| Lens Type | 2.8mm@F2.1 | 4.0mm@F2.1 | ||||||
| Iris | Fixed | |||||||
| Angle of View (H) | 101.1° | 83.7° | ||||||
| Angle of View (V) | 55.0° | 44.6° | ||||||
| Angle of View (O) | 111.0° | 89.1° | ||||||
| DORI | ||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 45.0(147.6ft) | 18.0(59.1ft) | 9.0(29.5ft) | 4.5(14.8ft) | ||||
| 4.0 | 64.3(210.9ft) | 25.7(84.4ft) | 12.9(42.2ft) | 6.4(21.1ft) | ||||
| Illuminator | ||||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264 | |||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 25fps; 720P (1280*720), Max 25fps; Sub Stream: D1 (720*576), Max 25fps; 640*360,Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max 25fps; | |||||||
| Video Bit Rate | 128 Kbps~6 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Video stream | Dual streams | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital Defog | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Audio detection | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 128 GB | |||||||
| Network Storage | ANR | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | N/A | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8KHZ | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS , RTMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile T, Profile G), API | |||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||
| Client | Uniarch Client Uniarch APP | |||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||
| Interface | ||||||||
| Audio I/O | N/A | |||||||
| Alarm I/O | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certifications | ||||||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 3.2W | ||||||||
| Dimensions (L × W × H) | 160 × 62 × 65mm (6.3” × 2.4” × 2.6”) | |||||||
| Weight | 0.21kg (0.46lb) | |||||||
| Working Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | |||||||
| Storage Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 4KV | |||||||
| Reset Button | N/A | |||||||
