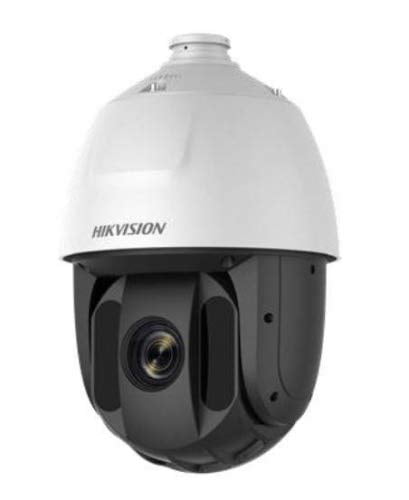

HIKVISION 5-INCH 2MP 32X POWERED BY DARKFIGHTER ANALOG SPEED DOME (DS-2AE5223TI-A)

₱29,400.00

High quality imaging with 2 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
32x optical zoom allows for closer viewing of subjects in expansive areas
Up to 150m IR range ensures safety at night
Water and dust resistant (IP66)

SKU: HIKVISION 5-INCH 2MP 32X POWERED BY DARKFIGHTER ANALOG SPEED DOME (DS-2AE5223TI-A) Categories: Hikvision, Hikvision HD Analog and IP Cameras, Hikvision PTZ Tag: HIKVISION 5-INCH 2MP 32X POWERED BY DARKFIGHTER ANALOG SPEED DOME (DS-2AE5223TI-A)

Description

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination
Color: 0.005 Lux @(F1.2, AGC ON)
B/W: 0.001 Lux @(F1.2, AGC ON)
0 lux with IR
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & NightIR cut filter
Zoom32 × optical, 16 × digital

Lens
Focal Length4.8 mm to 153 mm, 32 × optical
FOV
Horizontal FOV: 55.6° to 2.04° (wide to tele)
Vertical FOV: 32.4° to 1.14° (wide to tele)
Diagonal FOV: 63° to 2.34° (wide to tele)
FocusAuto, semi-auto, manual
ApertureF1.2 to F4.4
Zoom SpeedApprox. 5.6 s (optical, wide to tele)

Illuminator
Supplement Light TypeIR
Supplement Light Range150 m

PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speed
Pan manual speed: 0.1° to 120°/s
Pan preset speed: 120°/s
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional PanRotation speed can be adjusted automatically according to zoom multiples
Presets256
Preset FreezingYes
Patrol Scan10 patrols, up to 32 presets for each patrol
Pattern Scan5 patterns, record time over 10 minutes for each scan
Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status DisplayYes
Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-Off MemoryYes

Video
Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)

Network
ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)

Image SettingsAGC, white balance
Wide Dynamic Range (WDR)≥ 120 dB
Image StabilizationEIS
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask8 programmable privacy masks
Regional FocusYes

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm2 alarm inputs, 1 alarm output
RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General
Power24 VAC, max. 30 W (IR: 10 W)
DimensionΦ 208 mm × 305 mm (Φ 8.19″ × 12.01″)
WeightApprox. 3.3 kg (7.28 Ib.)
Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
LanguageEnglish

Approval
ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
