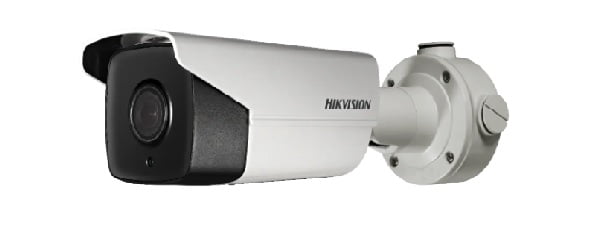

HIKVISION 2MP DARKFIGHTER LITE MOTO VARIFOCAL BULLET NETWORK CAMERA-2.8-12MM (DS-2CD4B26FWD-IZ)

₱24,080.00

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging even against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant (IP67)

SKU: HIKVISION 2MP DARKFIGHTER LITE MOTO VARIFOCAL BULLET NETWORK CAMERA-2.8-12MM (DS-2CD4B26FWD-IZ) Categories: Hikvision, Hikvision Bullet, Hikvision HD Analog and IP Cameras Tag: HIKVISION 2MP DARKFIGHTER LITE MOTO VARIFOCAL BULLET NETWORK CAMERA-2.8-12MM (DS-2CD4B26FWD-IZ)

Description

Camera
Image Sensor1/1.8” Progressive Scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR,B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.00027 Lux @ (F1.4, AGC ON), 0 Lux with IR”
Shutter Speed1 s – 1/100,000 s
Slow ShutterSupport
Day &NightIR Cut Filter
Wide Dynamic Range120dB
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
DNR3D DNR

Lens
Lens2.8 – 12 mm F1.4, horizontal angle of view 90.1° – 31°
Auto-IrisDC drive
Lens MountΦ14

Illuminator
IR Range10 m to 30 m

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps – 16 Mbps

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise FilteringSupport
Audio Sampling RateMax. 48 kHz

Smart Feature-Set
Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Region Of InterestSupport 4 fixed region for each stream, and dynamic face tracking

Image EnhancementBLC/HLC/3D DNR/Defog/EIS
Image SettingRotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target CroppingAuto/Schedule/Triggered by Alarm In (-S)
Day/Night SwitchAuto/Schedule/Triggered by Alarm In
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Distortion CorrectionSupport

Network
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

4G
StandardONVIF (PROFILE S, PROFILE G), ISAPI

Interface
Communication Interface1 RJ45 10M/100M Ethernet port; with –S model: 1 RS-485 interface
Audiosupport; With –S model: 1 input (line in), 1 output
AlarmWith –S model: 1 input, 1 output (up to DC24V 1A or AC110V 500mA)
Video Output1Vp-p composite output (75 Ω/BNC)
On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard
H.264+Support
H.265+Support

Smart Feature-Set
Exception DetectionScene change detection
Line Crossing DetectionCross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
Intrusion DetectionEnter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
Region Entrance DetectionEnter a pre-defined virtual region from the outside place
Region Exit DetectionExit from a pre-defined virtual region
Object Removal DetectionObjects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage DetectionObjects left over in the pre-defined region such as the baggage, purse, dangerous materials
RecognitionFace detection

General
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
ResetYes
Startup And Operating Conditions-30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply12 V DC ± 20%, PoE (802.3at, class 4)
Dimensions348.38 × 114.18 ×111.73 mm (13.72″ × 4.5″ × 4.4″)
WeightCamera: 1900 g (4.19 lb.),With package: 2100 g (4.63 lb.)
Power Consumption And Current12 V DC ± 20%: Max. 11.25 W/0.94 A,PoE (802.3at): Max. 15 W/0.31 A
Interface ProtectionIP67
