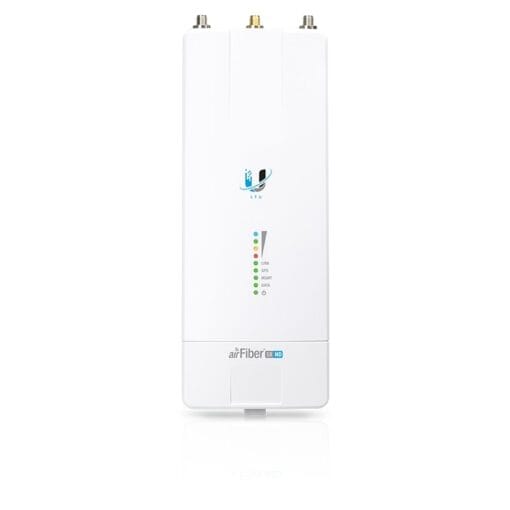

UBIQUITI 5XHD 1GBPS + PTP Radio w/ LTU Technology (AF-5XHD)

Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″)
Weight: 0.35 kg (12.3 oz)
RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1), (1) SMA Weatherproof (GPS)
GPS Antenna: External, Magnetic Base
Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
Power Method: Passive Power over Ethernet (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-))
Max. Power Consumption: 6-12W (Varies with firmware load and operational mode)
Supported Voltage Range: +18 to +54VDC (Full range depends on Ethernet cable length)
Mounting: airFiber X Mount (Rocket Mount Compatible), GPS Pole Mount (Included)
Operating Temperature: -40 to 55° C (-40 to 131° F)
Weatherproofing: IP67 (After installation of IP67 kit (available separately, model AF-X-IP67))
Certifications: CE, FCC, IC

Networking Interface

Data Port: (1) 10/100/1000 Ethernet Port
Management Port: (1) 10/100/1000 Ethernet Port
Bluetooth: v4.0

System

Processor: airFiber LTU IC
Maximum Throughput: 1.34 Gbps (values may vary depending on the environmental conditions)
Maximum Range: 100 km (values may vary depending on the environmental conditions)
Packets per Second: 2+ Million (Hardware bridge mode only)
Latency: 1.5 ms – 3.5 ms (Based on 2 ms frame)
Encryption: AES-256
OS: airOS 8 for airFiber
Wireless Modes: Master/Slave

Radio

Frequency Range: 4.8 GHz – 6.2 GHz (Dependent on Regulatory Region)
Max. Conducted TX Power: 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy: < 2 ppm
Channel Bandwidth: 10/20/30/40/50/60/80/100 MHz Selectable, Programmable Uplink and Downlink Duty Cycles
