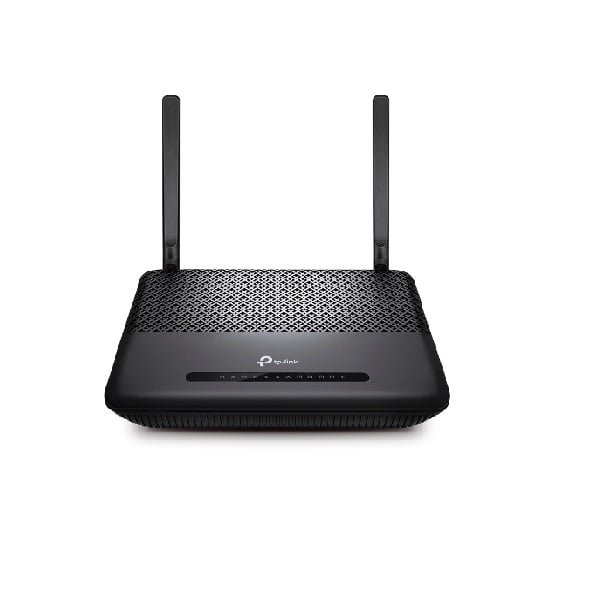

TPLINK AC1200 WIRELESS VOIP GPON ROUTER (XC220-G3v)
₱4,000.00
AC1200 Wireless VoIP GPON Router
- Superfast Dual Band Wi-Fi: Up to 1.2Gbps Wi-Fi speed, 300Mbps 2.4GHz, 867Mbps 5GHz
- Full Gigabit Port: Up to 10x faster than standard Ethernet, deliver lightning-fast wired performance
- Supports VOIP Calls: Simply make or receive phone calls over the Internet
- Easy Remote Management: Supports the ONT Management and Control Interface (OMCI), easy to configure and manage remotely from an OLT
- Smooth Connection: Supports VLAN, 802.1q, smooth network connection for IPTV and other services
| HARDWARE FEATURES | |
|---|---|
| Interface | 4 10/100/1000Mbps RJ45 LAN Ports, 1 SC/APC GPON Port, 1 RJ11 FXS Port |
| Button | Power On/Off Button, WPS/Wi-Fi Button, RESET Button |
| External Power Supply | 12V/1.5A |
| Antenna | 2 External Dual Band Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz (not Supports DFS) |
| Signal Rate | 867Mbps at 5GHz, 300Mbps at 2.4GHz |
| Transmit Power | 2.4GHz: 26dBm(EIRP), 5GHz: 27dBm(EIRP) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
| Wireless Schedule | Support 2.4GHz and 5GHz Wireless Schedule |
| Mesh Technology | WPA EasyMesh, TP-Link OneMesh |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Hardware QoS |
| Security | NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death” |
| Management | Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, Web Based Firmware Upgrade, Diagnostic Tools, OMCI |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| Protocols | Supports IPv4 and IPv6 |
| VOIP Features | Call hold, Call forward, Warm call, Do not disturb, Call restriction, Speed dial, etc. Caller ID, 3-party conference, SIP account – up to 8 accounts |
| Advanced Functions | Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3 |
| OTHERS | |
|---|---|
| Package Contents | AC1200 Wireless VoIP GPON Router RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
