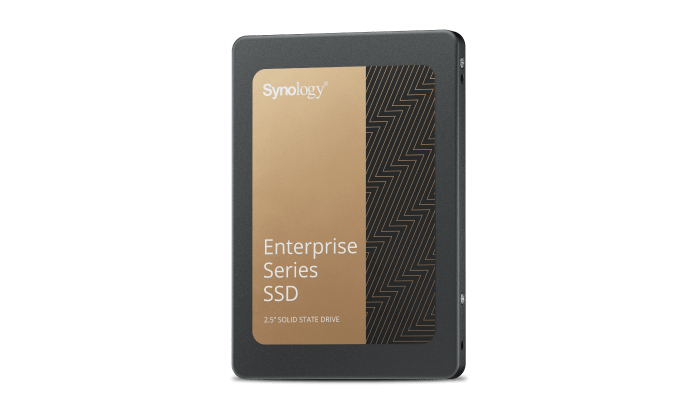

Synology SAT5210-480G 480GB Enterprise-Grade 2.5″ SATA 6Gb/s SSD

Name: Synology SAT5210-480G 480GB Enterprise-Grade 2.5" SATA 6Gb/s SSD
SKU: SAT5210-480G
Availability: InStock

₱0.00

Synology SAT5210-480G 480GB Enterprise-Grade 2.5″ SATA 6Gb/s SSD [R/W=530/500 MB/s]

Add to wishlist

SKU: SAT5210-480G Categories: For Server, HDD/SSD

Description

Enterprise Series 2.5″ SATA SSD

Modernize storage infrastructure with Synology solid-state drives

Enterprise solid-state drives

Synology SAT5200 Series SATA SSDs offer stable I/O performance while reducing the latency of critical services and applications. They are built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.

Performance

Up to 67,000 4K random write IOPS¹

Endurance

Up to 11,460 TBW for 24/7 enterprise workloads²

Analytics

Actionable insight for optimal performance and longevity³

Updates

One-click drive firmware updates through DSM⁴

Stable high performance for demanding environments

Engineered for demanding environments such as for online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 Series drives deliver consistently high performance.¹

Enterprise-grade endurance and reliability

11,460 TBW

Built to withstand 24/7 intensive workloads with endurance up to 11,460 TBW.²

End-to-end data protection

Data integrity and consistency are safeguarded over the entire data transfer path.

Power loss protection circuit design

Dedicated capacitors provide sufficient power to flush data-in-flight into NAND flash during a power loss event, further preventing data corruption.

Better analytics

Full integration with Synology DiskStation Manager (DSM) enables lifetime analytics for each SAT5200 Series drive based on actual workloads.³

Timely notifications

Plan further ahead for uninterrupted system performance and longevity with timely notifications.

Optimal use

Easy monitoring allows you to make optimal use of each SSD.

One-click firmware upgrades

Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights.⁴

Purpose-built for Synology systems

Synology SAT5200 Series SSDs are thoroughly validated for our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.

Hardware Specifications		SAT5210-480G	SAT5210-960G	SAT5220-1920G	SAT5220-3840G	SAT5210-7000G
General	Capacity	480 GB	960 GB	1.92 TB	3.84 TB	7 TB
	Form Factor	2.5″ 7mm	2.5″ 7mm	2.5″ 7mm	2.5″ 7mm	2.5″ 7mm
	Interface	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s	SATA 6 Gb/s
Performance	Sustained Sequential read (128 KB, QD32)	530 MB/s	530 MB/s	530 MB/s	530 MB/s	530 MB/s
	Sustained Sequential write (128 KB, QD32)	500 MB/s	500 MB/s	500 MB/s	500 MB/s	500 MB/s
	Sustained Random Read (4KB, QD32)	96,000 IOPS	98,000 IOPS	98,000 IOPS	98,000 IOPS	97,000 IOPS
	Sustained Random Write (4KB, QD32)	55,000 IOPS	67,000 IOPS	60,000 IOPS	60,000 IOPS	50,000 IOPS
	Notes	All performance measurement were reached in full sustained mode based on the JESD219A enterprise workload, defined by JEDEC Solid State Technology Association. Performance specifications refer to SSD performance only. Actual performance may vary depending on the hardware and software configuration of the host system.
Endurance and Reliability	Terabytes Written (TBW)*	>900 TB	>1,700 TB	>3,500 TB	>7,000 TB	>10,000 TB
	Power Loss Protection
	Warranty*	5 Years	5 Years	5 Years	5 Years	5 Years
	Notes	Based on the JESD219A enterprise workload. 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first. (Learn more)
Power Consumption	Active Read (Typ.)	2.4 W	2.7 W	2.5 W	2.6 W	3.3 W
	Active Write (Typ.)	2.8 W	2.8 W	3.3 W	3.4 W	5.1 W
	Idle	1.3 W	1.4 W	1.4 W	1.5 W	1.8 W
	Notes	Power consumption may differ according to configurations and platforms.
Temperature	Operating Temperature	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)
Temperature	Storage Temperature	-40°C to 85°C (-40°F to 185°F)	-40°C to 85°C (-40°F to 185°F)	-40°C to 85°C (-40°F to 185°F)	-40°C to 85°C (-40°F to 185°F)	-40°C to 85°C (-40°F to 185°F)
Compatibility
Applied Models		SAT5210-7000G SAT5220-3840G SAT5220-1920G SAT5210-960G SAT5210-480G
