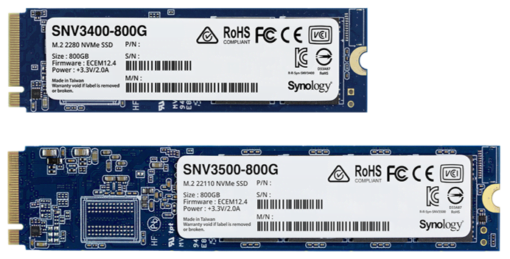

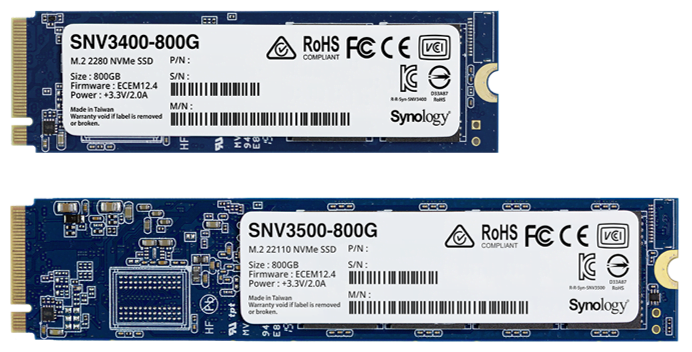

SNV3400/3500 Series M.2 NVMe SSD
Supercharge I/O performance
M.2 2280
SNV3400 Series, tailored for Synology NAS with built-in M.2 slots.
M.2 22110
SNV3500 Series, engineered for more demanding environments.
Supercharge your NAS/SAN
Synology SNV3400/3500 Series NVMe SSDs are designed to intelligently work with Synology DiskStation Manager (DSM) to boost I/O performance. These high-performance NVMe drives accelerate the slower but higher-capacity storage space provided by traditional hard drives, enabling cost-effective, in-place upgrades for existing systems.
Performance
Up to 70,000 4K random write IOPS1
Endurance
Up to 1,022 TBW2
Analytics
Actionable insight for optimal performance and longevity3
Updates
One-click drive firmware updates through DSM4
Consistently fast caching for 24/7 environments
Designed specifically for Synology systems, the SNV3400/3500 Series SSDs are built for maximum performance consistency. Each drive is rated for up to 400,000/70,000 4K random read/write IOPS1 across the usable lifespan of the drive. Endurance of up to 1,022 TBW ensures longevity.2
Hardware Specifications | SNV3410-400G | SNV3410-800G | SNV3510-400G | SNV3510-800G | |
|---|---|---|---|---|---|
| General | Capacity | 400 GB | 800 GB | 400 GB | 800 GB |
| Form Factor | M.2 2280 | M.2 2280 | M.2 22110 | M.2 22110 | |
| Interface | NVMe PCIe 3.0 x4 | NVMe PCIe 3.0 x4 | NVMe PCIe 3.0 x4 | NVMe PCIe 3.0 x4 | |
| Performance | Sustained Sequential read (128 KB, QD32) | 3,000 MB/s | 3,100 MB/s | 3,000 MB/s | 3,100 MB/s |
| Sustained Sequential write (128 KB, QD32) | 750 MB/s | 1,000 MB/s | 750 MB/s | 1,000 MB/s | |
| Sustained Random Read (4KB, QD256) | 225,000 IOPS | 400,000 IOPS | 225,000 IOPS | 400,000 IOPS | |
| Sustained Random Write (4KB, QD256) | 45,000 IOPS | 70,000 IOPS | 45,000 IOPS | 70,000 IOPS | |
| Notes |
| ||||
| Endurance and Reliability | Terabytes Written (TBW)* | 491 TB | 1,022 TB | 491 TB | 1,022 TB |
| Power Loss Protection | – | – | |||
| Warranty* | 5 Years | 5 Years | 5 Years | 5 Years | |
| Notes |
| ||||
| Power Consumption | Active Read (Typ.) | 3.5 W | 5.5 W | 4.0 W | 6.2 W |
| Active Write (Typ.) | 3.3 W | 4.6 W | 3.6 W | 5.1 W | |
| Idle | 1.6 W | 1.6 W | 1.6 W | 1.7 W | |
| Notes | Power consumption may differ according to configurations and platforms. | ||||
| Temperature | Operating Temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | -40°C to 85°C (-40°F to 185°F) | -40°C to 85°C (-40°F to 185°F) | -40°C to 85°C (-40°F to 185°F) | |
Compatibility | |||||
| Applied Models | |||||
