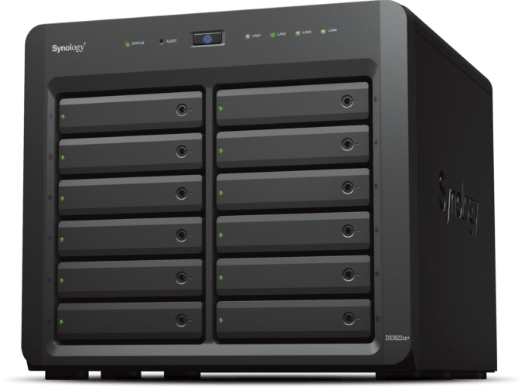

Synology DS3622xs+ 12-Bay Tower NAS

Name: Synology DS3622xs+ 12-Bay Tower NAS
SKU: DS3622xs+
Availability: InStock

₱0.00

Synology DS3622xs+ 12-Bay Tower NAS [Intel Xeon D-1531 6-Core, 16GB DDR4 ECC SODIMM, 12 x 2.5″/3.5″ SATA, Up To 36-Bay w/ DX1222 x 2, 2 x GbE RJ45, 2 x 10GbE RJ45, 2 x USB3.2 Gen1, 1 x PCIe Gen3 x8 Slot, Compatible w/ HAT5300 HDD & SAT5210 SSD]

Add to wishlist

SKU: DS3622xs+ Categories: Network Storage, Storage, XS+/XS Series High Performance Tower NAS

Description

DiskStation DS3622xs+

Powerful and high-capacity storage that fits in any environment

High-performance mass storage

The 12-bay Synology DS3622xs+ is a powerhouse NAS capable of fitting into small and medium business environments with intensive and multi-user workloads. Its high capacity, scalability, and processing power make it ideal for VM and container storage, for lightning-fast file sharing, and as a network video recorder for large surveillance deployments. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video.

Download Datasheet

CPU

Six-core Intel^® Xeon^® processor

Throughput

4,719 MB/s seq. read
260,691 4K random read IOPS¹

Memory

16 GB DDR4 ECC, expandable to 48 GB

Scalability

Expand to 36 drives with two DX1222 expansion units

Dependable storage for many scenarios

Synology NAS is a versatile storage platform that fits perfectly in file server, block storage, or application server roles that require high availability, reliability, and leading-edge storage technology.

Multi-purpose NAS storage

Keep digital assets accessible locally or remotely with easy-to-maintain shared file storage, backed by fast SMB file serving, powerful RAID options, efficient backup tools, and granular permission management.

SAN infrastructure for SMBs

Deploy certified block storage with minimal disruption thanks to easy management plugins, and leverage free snapshots paired with built-in high-availability options to maximize service availability.

Versatile business applications

Host business solutions privately and on your own terms, including a powerful backup server to protect all business assets from a centralized platform or a full-fledged surveillance platform to safeguard physical premises with transparent licensing.

Faster performance

Enjoy a smooth experience even with multiple users running demanding applications. See the numbers that make the DS3622xs+ more efficient.¹

Sequential Throughput4K Random IOPS

Read

4.7K+

MB/s

Write

2.4K+

MB/s

Read

0K+

IOPS

Write

0K+

IOPS

Built to maximize uptime

The DS3622xs+ is built to keep mission-critical data and services accessible, so that businesses can continue to perform even when disaster strikes.

Out-of-band (OOB) management

Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.

High-availability solution

Create an active-passive cluster with minute-level failover by pairing the DS3622xs+ with an identical unit using Synology High Availability. Learn more

Rise to the challenge

Prepare your DS3622xs+ for the heaviest workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.²

Maximize bandwidth

Handle heavier I/O and serve more users with dual-port Synology 10 or 25GbE network interface cards. Integrate with any FC SAN using compatible Fibre Channel adapters.³

Accelerate storage performance

Enable SSD caching to speed up HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance.⁴

Do both with one card

Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.

Out-of-the-box data protection

Protect your data with professional backup software for your Synology NAS, other devices, and applications.

Active Backup Suite

Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware^® and Hyper-V^® virtual machines with the Active Backup Suite.

Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration. Learn more

Implement a 3-2-1 backup strategy

Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions. Learn more

Hyper Backup

Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.

Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning. Learn more

Snapshot Replication

Snapshot Replication enables configurable point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds. Learn more

Efficient collaboration and communication

Empower your workforce to collaborate, share files, and communicate from anywhere.

Synology Drive

Host your own private cloud behind the safety of your NAS with 100% data ownership and no subscription fees. Learn more

Synology Office

Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity. Learn more

Synology MailPlus

Improve team efficiency with an on-premises email solution that ensures data ownership, security, and reliability. Learn more

Certified virtual machine storage

Synology DiskStation Manager (DSM) streamlines provisioning for and management of virtual machines with full certification for VMware^® vSphere™, Microsoft^® Hyper-V^®, Citrix^® XenServer™, and OpenStack virtualization environments.

Synology Storage Console for VMware^® or Windows platforms lets you manage storage directly from your hypervisor. VMware^® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI. Learn more

Centralized surveillance for your business

Transform the DS3622xs+ into a powerful network video recorder with Synology Surveillance Station. Learn more

Secure and private

Footage stored locally is protected by industry-standard AES-256 encryption.

Scale up any time

Connect up to 90 IP cameras from a wide selection of over 7,900 validated models.⁵

Real-time analytics

Take advantage of intelligent monitoring features and receive automatic alerts of security events.

Centralized surveillance for your business

Performance backed by Synology drives

Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS and featuring built-in data protection.

Enterprise Series 3.5″ SATA

Enterprise Series 2.5″ SATA Enterprise Series M.2 NVMe

Get more with DiskStation Manager

Take advantage of a whole host of native productivity, management, and security solutions available on the web-based Synology DSM operating system.

Data Protection

Keep your business safe from data loss and minimize service downtime.

Learn more

User Management

Manage user accounts and devices throughout your business with powerful directory services.

Learn more

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

Learn more

File Management

Manage, sync, and share files from multiple devices through a centralized platform.

Learn more

System Administration

Manage the health of your deployments and centrally administer updates with ease.

Learn more

Security

Secure data with comprehensive built-in security tools to protect your devices against evolving threats.

Learn more

We have you covered

The DS3622xs+ is backed by Synology’s 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and enjoy high-quality performance. Learn more

DiskStation DS3622xs+

1Status Indicator
2Alert Indicator
3Power Button
4LAN Indicators
5DRIVE Status Indicators

6Drive Trays
7Drive Tray Locks
8Power Port
9System Fans
10PCIe Expansion Slot

11Reset Button
12USB 3.2 Gen 1 Ports
13Console Port
14Expansion Ports
15Management Port

161GbE RJ-45 Ports
1710GbE RJ-45 Ports

More ways to harness your NAS

Storage for content creators

Synology NAS brings speed, simplicity, and security to all your creative projects.

Learn more

Complete business backup

Follow the 3-2-1 backup strategy and keep your data safe with Synology’s backup packages.

Learn more

IT infrastructure protection

Safeguard your deployments from being accidentally or deliberately compromised.

Learn more

Notes:

Performance testing conducted by Synology with 10GbE NICs installed. Actual results may vary depending on system configuration, testing methods, and other environmental variables. Check the performance page for additional details.
PCIe add-in cards, expansion units, and storage drives are sold separately. Refer to the compatibility list for compatible devices.
Fibre Channel support can be enabled with a compatible PCIe FC Host Bus Adapter. For the most up-to-date list of compatible HBAs, please check our compatibility list.
SSD cache can be enabled by using Synology SAT5200 2.5″ SSDs or without occupying drive bays by installing Synology SNV3500 NVMe SSDs with M2D20 or E10M20-T1 adapter cards. All devices are sold separately.
Surveillance Station includes 2 free licenses. Connecting more cameras and devices requires additional licenses.

Hardware Specifications
CPU	CPU Model	Intel Xeon D-1531
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	6-core 2.2 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	16 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	16 GB (8 GB x 2)
	Total Memory Slots	4
	Maximum Memory Capacity	48 GB (8 GB x 2 + 16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage	Drive Bays	12
	Maximum Drive Bays with Expansion Unit	36 (DX1222 x 2)
	Compatible Drive Type* (See all supported drives)	3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD
	Hot Swappable Drive*
	Notes	Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
	RJ-45 10GbE LAN Port	2 (with Link Aggregation / Failover support)
	Out-of-Band Management LAN Port	1
	USB 3.2 Gen 1 Port*	2
	Expansion Port	2
	Notes	This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x8 link)
Appearance	Size (Height x Width x Depth)	270 mm x 300 mm x 340 mm
	Weight	9.8 kg
Others	System Fan	120 mm x 120 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Power Recovery
	Noise Level*	25 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	550 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	94.42 W (Access) 54.33 W (HDD Hibernation)
	British Thermal Unit	322.39 BTU/hr (Access) 185.51 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC KC UL
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC SODIMM: D4ES02-8G/D4ES01-16G Expansion Units: DX1222 Enterprise Series 3.5″ SATA HDD: HAT5300 Series Plus Series 3.5″ SATA HDD: HAT3300 Series Enterprise Series 2.5″ SATA SSD: SAT5200 Series M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G21-F2/E10G30-T2/E10G18-T1
	Notes	All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Notes:

Model specifications are subject to change without prior notice.
The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
If usage requirements exceed the specifications above, please contact our regional partners for professional advice.

DSM Specifications
Storage Management	Maximum Single Volume Size	200 TB (32 GB memory required) 108 TB
	Maximum Internal Volume Number	256
	SSD Read/Write Cache (Determining cache size)
	SSD TRIM
	RAID Group
	Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Notes	Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Volumes over 108 TB require 32 GB of memory or more.
File System	Internal Drives	Btrfs ext4
	External Drives	Btrfs ext4 ext3 FAT NTFS HFS+ exFAT
	Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
File Services	File Protocol	SMB AFP NFS FTP WebDAV Rsync
	Maximum Concurrent SMB/AFP/FTP Connections	4,000
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	10,000
	Windows Access Control List (ACL) Integration
	NFS Kerberos Authentication
	Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder	Maximum Local User Accounts	16,000
	Maximum Local Groups	512
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	32
Hybrid Share	Maximum Hybrid Share Folders	15
Hyper Backup	Folder and Package Backup
	Entire System Backup
	Notes	Full-system backup requires DSM 7.2 or later.
High Availability	Synology High Availability
Log Center	Syslog Events per Second	3,000
Virtualization	VMware ESXi 6.5 and VAAI
	Windows Server 2022
	Citrix Ready
	OpenStack
General Specifications	Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Chrome Firefox Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)
Central Management System
Synology Chat	Suggested Maximum Users	4,000
	Suggested Concurrent Users	500
	Notes	When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager	Maximum iSCSI Target Number	256
	Maximum LUN	512
	LUN Clone/Snapshot, Windows ODX
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Additional accounts require purchase of licenses)
	Suggested Maximum Users	7,500
	Suggested Concurrent Users	1,500
	Maximum Server Performance	4,235,000 emails per day, approx. 129 GB
	Notes	Models with more than 4 bays were installed with two SSDs for SSD cache. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server	DLNA Compliance
Synology Photos	Facial Recognition
	Object Recognition
Snapshot Replication	Maximum Snapshots per Shared Folder	1,024
	Maximum of System Snapshots	65,536
Surveillance Station	Default Licenses	2 (Additional cameras require purchase of licenses)
	Suggested Maximum IP Cameras and Total FPS (H.264)	720p: 90 channels, 2700 FPS 1080p: 90 channels, 2250 FPS 3M: 90 channels, 1500 FPS 5M: 90 channels, 900 FPS 4K: 55 channels, 550 FPS
	Suggested Maximum IP Cameras and Total FPS (H.265)	720p: 90 channels, 2700 FPS 1080p: 90 channels, 2700 FPS 3M: 90 channels, 2250 FPS 5M: 90 channels, 1500 FPS 4K: 90 channels, 1080 FPS
	Notes	Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The maximum number of camera stream outputs is 2 times the suggested maximum number of IP cameras.
Synology Drive	Recommended Number of Concurrent Sync Clients	1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office	Suggested Maximum Users	12,500
	Suggested Concurrent Users	5,000
	Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
Virtual Machine Manager	Recommended Virtual Machine Instances	12 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	12 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server	Maximum Connections	60

Notes:

Model specifications are subject to change without prior notice.
The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
If usage requirements exceed the specifications above, please contact our regional partners for professional advice.

Login

Register

Synology DS3622xs+ 12-Bay Tower NAS

DiskStation DS3622xs+

High-performance mass storage

CPU

Throughput

Memory

Scalability

Dependable storage for many scenarios

Multi-purpose NAS storage

SAN infrastructure for SMBs

Versatile business applications

Faster performance

Built to maximize uptime

Out-of-band (OOB) management

High-availability solution

Rise to the challenge

Maximize bandwidth

Accelerate storage performance

Do both with one card

Out-of-the-box data protection

Active Backup Suite

Implement a 3-2-1 backup strategy

Hyper Backup

Snapshot Replication

Efficient collaboration and communication

Synology Drive

Synology Office

Synology MailPlus

Certified virtual machine storage

Centralized surveillance for your business

Secure and private

Scale up any time

Real-time analytics

Performance backed by Synology drives

Get more with DiskStation Manager

Data Protection

User Management

Security

File Management

System Administration

Security

We have you covered

DiskStation DS3622xs+

More ways to harness your NAS

Storage for content creators

Complete business backup

IT infrastructure protection

Notes:

Notes:

Notes:

Related products

Login

Register
