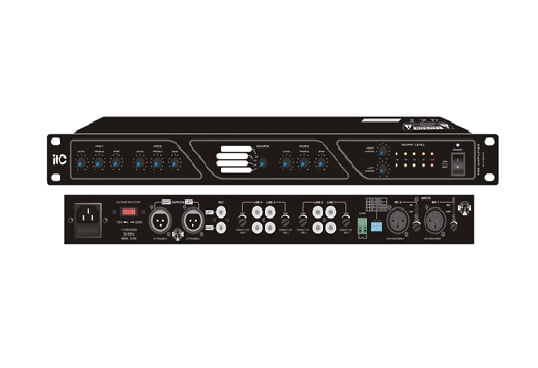

ITC STEREO MIXER PRE-AMPLIFIER (T-2S02)
₱21,600.00
Specifications:
| Model | T-2S02 |
| Input | MIC 1-2: 4 mV -45 mV /600Ω, balanced |
| MIC 1-2(LINE): 150mV-1.5V/10KΩ, balanced | |
| LINE 1, 2, 3, 4: 250 mV -2.5V/10KΩ, unbalanced | |
| Output | 1V/600Ω |
| Frequency Response | 20Hz~20KHz (±1dB) |
| S/N Ratio | Mic input: 65dB; Line input: 85dB |
| Tone | Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz |
| Phantom Power | +48V |
| Protection | AC fuse |
| Power Supply | ~110V -230V 50/60Hz |
| Dimensions | 484 x 210 x 44mm |
| Weight | 3.64Kg |
Features:
* 2 balanced mic inputs by XLR type, phantom power & gain control is separately provided.
* 4 unbalanced line inputs by phone jack, gain control is separately provided.
* Stereo balanced line outputs by XLR type.
* Alarm input & REC unbalanced output.
* Input priority level from high to low: Alarm input, Mic1/Mic2 & Line 1-4 inputs.
* Bass/treble tone control and volume control for Mic1, Mic2 & source.
* Master volume control separately for both left and right channel.
* 5 output level meters separately for left and right channel.
* Dual AC input voltage selector of 115V and 230V.
Specifications:
| Model | T-2S02 |
| Input | MIC 1-2: 4 mV -45 mV /600Ω, balanced |
| MIC 1-2(LINE): 150mV-1.5V/10KΩ, balanced | |
| LINE 1, 2, 3, 4: 250 mV -2.5V/10KΩ, unbalanced | |
| Output | 1V/600Ω |
| Frequency Response | 20Hz~20KHz (±1dB) |
| S/N Ratio | Mic input: 65dB; Line input: 85dB |
| Tone | Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz |
| Phantom Power | +48V |
| Protection | AC fuse |
| Power Supply | ~110V -230V 50/60Hz |
| Dimensions | 484 x 210 x 44mm |
| Weight | 3.64Kg |
