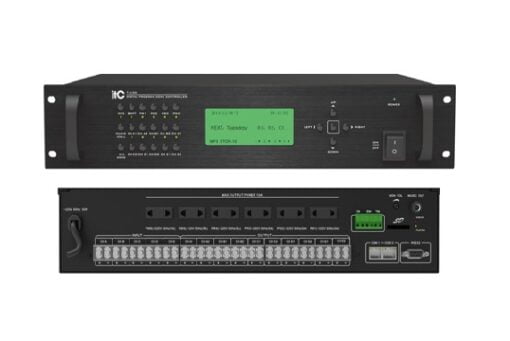

ITC INTELLIGENT CONTROL HOST (T-6232)
₱51,700.00
Specifications:
| Model | T-6232 |
| Power Output | ~110V-230V 50/60Hz |
| 4 Program Power+2 AUX power | |
| Total Power ≤5KW | |
| Function Button | Light touch press buttons include |
| 4 power switch buttons, 1 MP3 control button, | |
| 1 backup program switch, | |
| 10 zones speaker selector button, all zones | |
| button, 1 music or paging switch button. | |
| 4 menu buttons for switch, 1 ok button | |
| Indication Method | 192×64 LCD display, English |
| Audio Output | 1KΩ 0.775V Unbalance (6.35 RC) |
| Voltage Input and Output of Alarm | 0V(Short Circuit) Industrial Standard |
| Voltage Output for Power Control | Integrated Terminal Block |
| 0V(Short Circuit) Industrial Standard | |
| Amplifier Input and Output | Integrated Terminal Block |
| CHA CHB CHC CHD CHE CHA1-A2 | |
| CHB1-B2 CHC1-C2 CHD1-D2 CHE1-E2 | |
| Monitor Power of Speaker | 0.5W |
| Time Mode | 24 hours(hour-minutes-seconds) weekly |
| Program Quantity | Total 9pcs(8 normal programs, 1EMC) |
| Program Steps | Total 512 Steps, 1 day≤200 Steps |
| Communication Protocols | RS422 |
| Communication Port | RJ45 |
| Communication Speed | 4800bps |
| Zone Control | 160 zone(16pcs T-6212(A) 10 zone speaker selector) |
| MP3 Frequency Response | 20Hz~20KHz/ ±1dB |
| Mp3 Store Format | Compatible FAT16, FAT32 |
| Power Supply | ~110V-230V 50/60Hz |
| Dimensions | 484 x 350 x 88mm |
| Weight | 6.06Kg |
Features:
* Built-in weekly timer, monitor, 10 zone speaker selector, 6 channel power sequencer and Mp3 player.
* Expandable from 10 zones to 160 zones.
* Single Scheduled background music + 160 zone paging + multi voice alarm system.
* Single scheduled background music from T-6232 weekly timer’s built-in MP3 player.
* 3 modes of voice alarm: all zones, separate zone and neighboring zones voice alarm.
* Max support connecting 16 pcs zone selector T-6212(A).
* 5 amp inputs, 10 zones speaker output.
* Timely broadcast is up to 99 program sources.
* Broadcast modes: random, repeat and circle.
* 8 regular programs and 1 spare program for emergency/particular circumstance.
* Functional swift key for internal MP3 player priority manual broadcast.
* Zone 1-10 selector, all zone selector, music/paging switch, MP3 swift button, swift program button, power control channel 1-4 buttons, up/down/left/right/ok button.
* External power control, external monitor, speaker fault detection and amplifier fault changeover all are optional could be added.
* Power handling 500W over each zone.
* System communication is through CAT 5 cable.
* The system communication distance is up to 1km.
* Support memory function in case of power off.
