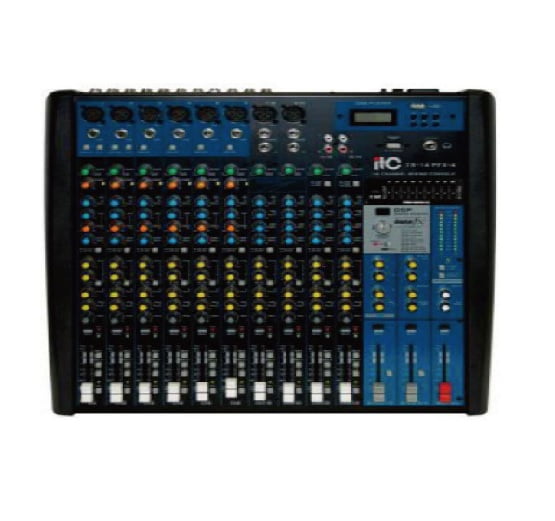

ITC 14 CHANNEL MIXER WITH 4 GROUP (TS-14PFX-4)
₱77,100.00
Specification:
| Model | TS-14PFX-4 |
| Mic input | 8 channels (8 XLR interfaces) |
| Line input | 6-channel single plug mono/stereo automatic switching hybrid interface |
| Stereo input channel | 2 sets (4 channels of mono), 4 channels of RCA input |
| Output channel | 2 sets of stereo main output, 4 marshalling outputs, 4 auxiliary outputs, 1 set of stereo monitoring output, 1 earphone monitoring output, 2 effect outputs. |
| INSERT | 1 set of main mix breakpoint insertion, 6 breakpoint insertion |
| USB interface | Playback and recording with a USB disk |
| Audio processor | 24-bit DSP audio processor(including vocal, small house, hall, echo, echo + reverb, plate, vocal music board, chorus GTR, rotating GTR, vibrato GTR type), 100 preset effects |
| USB sound card port | Support computer recording/playback, playback through CH11/12 channel |
| Phantom power | +48V with switch |
| Frequency response | 20Hz-20kHz，±2dB |
| Distortion | <0.03% at+0dB,22Hz-22KHz A-weighted |
| Sensitivity | +21dB~-30dB |
| SNR | <-100dBr A-weighted |
| Mono equalization | High frequency: +/-15dB @12KHz; medium frequency: +/-15dB @100KHz-8KHz; low frequency: +/-15dB @80KHz |
| Stereo equalization | High frequency: +/-15dB @12KHz; medium frequency: +/-15dB @3KHz or +/-15dB @500KHz; low frequency: +/-15dB @80KHz |
| Main mixing crosstalk | <-80dB @0dB 20Hz-22KHz A-weighted, main output: 0dB, other channels: minimum |
| Supply voltage | AC 100-240V 50/60Hz |
| Rated power | 30W |
| Size | 438×431×81mm |
| Weight | 6.7Kg |
Feature:
* Professional compact mixer, ultra-low noise discrete microphone preamplifier and +48V phantom power, powerful functions and mellifluous sound quality.
* 8 channels of Mic input interface are compatible with 6 line input interfaces; microphone input interface supports 48V phantom power.
* 2 sets of stereo inputs and 4 channels of RCA inputs can be connected to stereo devices.
* Provide 2 sets of stereo main outputs, 4 marshalling outputs, 4 auxiliary outputs, 1 set of stereo monitoring output, 1 earphone monitoring output, 2 effect outputs.
* Provide 1 set of main mixing breakpoint insertion, 6 breakpoint insertion, and can be connected to additional processors (compressor, equalizer, limiter, etc.).
* 13 high-precision carbon film faders with 60mm stroke.
* Built-in MP3 player supports external U disk playback/recording through the USB interface.
* Built-in USB sound card can connect to computer for music playback and sound recording.
* Built-in 24-bit DSP audio processor can provide 100 preset effects.
* A USB power supply interface can be connected to USB light.
* Support 7-band graphic equalization fader adjustment.
