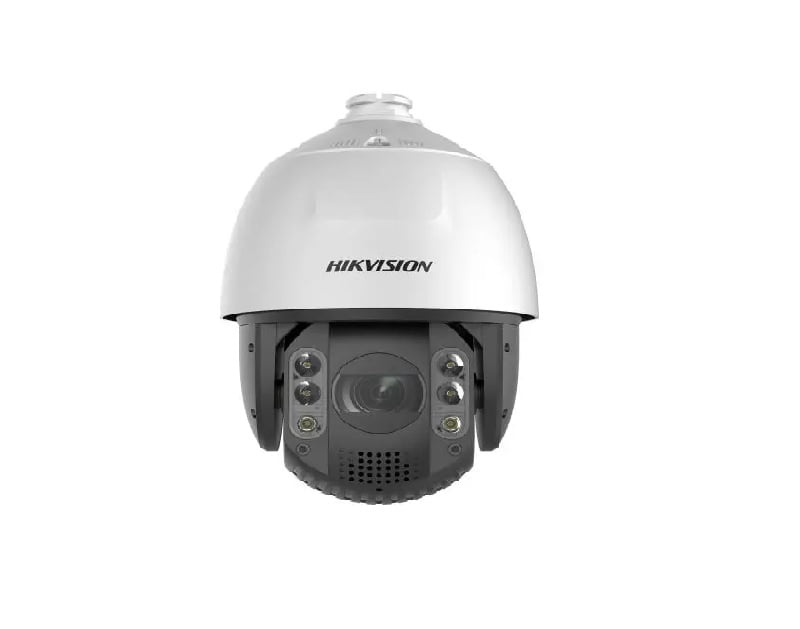

HIKVISION 7-INCH 8MP 25X POWERED BY DARKFIGHTER IR NETWORK SPEED DOME (DS-2DE7A825IW-AEB (T5)

₱83,000.00

1/1.8″ progressive scan CMOS
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
25× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 200 m IR distance
Focuses on human and vehicle targets classification based on deep learning
Face capture: Up to 5 faces captured at the same time

SKU: HIKVISION 7-INCH 8MP 25X POWERED BY DARKFIGHTER IR NETWORK SPEED DOME (DS-2DE7A825IW-AEB (T5) Categories: Hikvision, Hikvision HD Analog and IP Cameras, Hikvision PTZ Tag: HIKVISION 7-INCH 8MP 25X POWERED BY DARKFIGHTER IR NETWORK SPEED DOME (DS-2DE7A825IW-AEB (T5)

Description

Camera
Image Sensor1/1.8″ progressive scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
Shutter Speed1/1 s to 1/30000 s
Slow ShutterYes
Day & NightIR cut filter
Zoom25x optical, 16x digital
DORI
Detect (25px/m): 2046.9 m
Observe (63px/m): 812.3 m
Recognize (125px/m): 409.4 m
Identify (250px/m): 204.7 m

Lens
Focal Length5.9 mm to 147.5 mm
Zoom SpeedApprox. 4.8 s
FOV
Horizontal field of view: 50.8° to 2.6° (wide-tele),
Vertical field of view: 29.4° to 1.5° (wide-tele),
Diagonal field of view:57.4° to 3° (wide-tele)
ApertureMax. F1.5
FocusAuto, semi-auto, manual, rapid focus

Illuminator
Supplement Light RangeIR Distance: up to 200 m
Supplement Light TypeIR

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional PanYes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Power-Off MemoryYes
Park ActionPreset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video
Main Stream
50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 24 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users, 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
ClientiVMS-4200, HikCentral Pro, Hik-Connect
Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+

Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Wide Dynamic Range (WDR)120 dB
DefogDigital defog
Image StabilizationEIS
Regional ExposureYes
Regional FocusYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
SNR> 52 dB

Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm2 inputs, 1 output
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
ResetYes
Built-In Speaker1 built-in speaker with effective distance reaching max. 30 meters

Event
Basic EventMotion detection, video tampering alarm, exception, alarm input and output
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Smart TrackingManual tracking, auto-tracking
Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Face Capture
Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

General
Power
24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);
Hi-PoE
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
DemistYes
MaterialADC12
DimensionØ 220 mm × 363.3 mm (Ø 8.66″ × 13.91″)
WeightApprox. 5 kg (11.03 lb.)

Approval
ProtectionIP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
EMCUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
