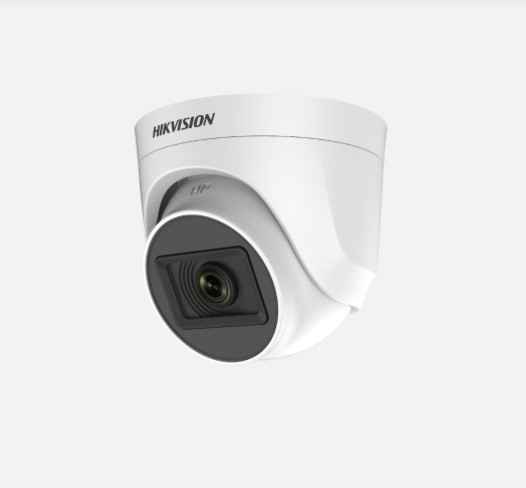

HIKVISION 5 MP FIXED TURRET CAMERA (DS-2CE76H0T-ITPF)

₱1,700.00

5 MP turret camera
EXIR 2.0: advanced infrared technology with 20 m IR distance
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

SKU: HIKVISION 5 MP FIXED TURRET CAMERA (DS-2CE76H0T-ITPF) Categories: HD Analog Camera, Hikvision Tag: HIKVISION 5 MP FIXED TURRET CAMERA (DS-2CE76H0T-ITPF)

Description

Camera
Image Sensor5 MP CMOS image sensor
Max. Resolution2560 (H) × 1944 (V)
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°
Lens MountM12
Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
Frame RateTVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fpsAHD: 5M@20fps, 4M@30fps, 4M@25fpsCVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC
White BalanceATW/MANUAL
AGCSupport
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
MaterialPlastic
DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
Approx. 143 g (0.32 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ±25%
ConsumptionMax. 4.3 W
IR RangeUp to 20 m
