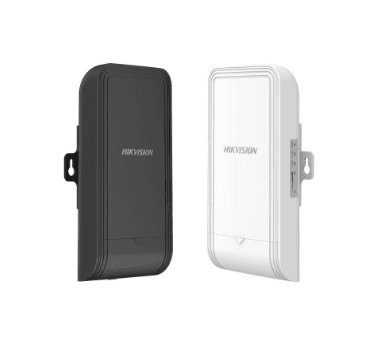

HIKVISION – 5GHZ 867 MBPS 500M ELAVATOR WIRELESS BRIDGE (DS-3WF0EC-5ACT(B))

₱7,310.00

Elevator 5GHz wireless bridge, Max.distance 500m, 2×2 MIMO antenna with 867Mbps
thoughput, IEEE 802.11ac, Angle H: 35° V: 35°,2 10/100M RJ45, 3 × 10/100 Mbps RJ45
ports, support 12 VDC/1 A, support passive PoE input, DFS,TPC;

SKU: HIKVISION - 5GHZ 867 MBPS 500M ELAVATOR WIRELESS BRIDGE (DS-3WF0EC-5ACT(B)) Categories: 2MP Resolution, Hikvision, Wireless Bridge Tag: HIKVISION - 5GHZ 867 MBPS 500M ELAVATOR WIRELESS BRIDGE (DS-3WF0EC-5ACT(B))

Description

General
Product Dimensions (W × H × D)90.8 mm × 187.87 mm × 57.87 mm (3.58” × 7.4” × 2.28”)
Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07″ × 9.09″ × 3.38″)
Net Weight0.26 kg (0.57 lb) per device
Gross Weight1.1 kg (2.43 lb)
Packing ListWireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
Packing MethodPacking in pairs
Working Temperature-30 °C to 65 °C (-22 °F to 149 °F)
Working Humidity5% to 95% (no condensation)
Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity5% to 95% (no condensation)
Installation ModePole Mounting
Ingress ProtectionIP55
Power Consumption2.43 W for typical (1-ch 2MP IPC), Max. 3.4 W

Wireless Parameter
Max. Transmission Rate of Air Interface≤ 867 Mbps
Wireless StandardIEEE 802.11/a/n/ac
Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
Antenna Gain8 dBi
Antenna Angle(H) Beamwidth [3 dB] 50° (V) Beamwidth [3 dB] 50°
Transmitting Power22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity-84 ±2dBm@AC80-MCS0
Throughput RatePTP: ,80 Mbps/0.2 KM(AC80),40 Mbps/0.5 KM(AC80)

PoE Power Supply
PoE PortAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
PoE Power Budget10 W
PoE Distance100 m

Hardware Parameter
Network Interface2 × 10/100 Mbps RJ45 ports
LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
ResetHardware resetting button
Power Supply48V PoE;Check the physical interface image below for more details.

Software Function
Application FunctionIFM,IPM,DFS,TPC
Channel Width20/40/80 MHz
Channel SelectionAuto/manual selection
Security ModeWPA2-PSK
Security MechanismWireless network name hidden
Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
Management MethodHCP,Web,iVMS-4200,HPP
System LogSyslog,Control center information
UpgradeWeb,iVMS-4200,HCP,HPP
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Reboot device
2. Restore device
3. Display the topology information
4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate.
5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
6. Bridge alignment
7. Spectrum scanning
8. PoE output management
