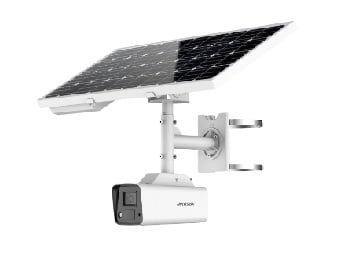

HIKVISION 4MP COLORVU SOLAR-POWERED SECURITY CAMERA SETUP 4.0mm (DS-2XS2T47G0-LDH/4G/C18S40)

₱60,800.00

High quality imaging with 4 MP resolution
Standalone with solar panel and built-in battery
24/7 colorful imaging
Efficient H.265+ compression technology
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Stability against category 12 typhoon
Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA/EVDO) communication

SKU: HIKVISION 4MP COLORVU SOLAR-POWERED SECURITY CAMERA SETUP 4.0mm (DS-2XS2T47G0-LDH/4G/C18S40) Categories: Hikvision, Hikvision HD Analog and IP Cameras Tag: HIKVISION 4MP COLORVU SOLAR-POWERED SECURITY CAMERA SETUP 4.0mm (DS-2XS2T47G0-LDH/4G/C18S40)

Description

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Time1/3 s to 1/100,000 s
Angle Adjustment
Solar Cover: Pan: 0° to 358°, tilt: -40° to 40°
Camera: Pan: 0° to 360°，tilt: -60° to 0°

Lens
Lens TypeFixed focal lens, 4 and 6 mm optional
ApertureF1.0
Focal Length & FOV
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
Lens MountM16

DORI
DORI
4mm, D: 77 m, O: 30 m, R: 15 m, I: 8 m
6mm, D: 116 m, O: 46 m, R: 23 m, I: 12 m

Illuminator
Supplement Light TypeWhite Light
Supplement Light Range
Performance mode: up to 30 m
Proactive mode: up to 10 m
Smart Supplement LightYes

Video
Main Stream
50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265/ H.264
Sub-stream: H.265/H.264/MJPEG
H.264+: Performance mode: main stream supports
H.265+: Performance mode: main stream supports
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Region Of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.265 and H.264 support

Audio
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI, SDK, ISUP
ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, SNMP, HTTPS, 802.1X
User/HostUp to 32 users. 3 user levels: administrator, operator and user
Network StorageAuto network replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
Proactive mode: Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication
Frequency
LTE-TDD: Band 38/40/41;
LTE-FDD: Band 1/3/5/7/8/20/28;
WCDMA: Band 1/5/8;
GSM: band 3/5/8
StandardLTE-TDD, LTE-FDD, WCDMA, GSM

SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Transducer
PIR AngleHorizontal: 100°, vertical: 80°
PIR RangeUp to 15 m

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in 64 GB eMMC storage (50 GB avaible for recording)
Built-In MicrophoneYes
Built-In SpeakerYes
Reset KeyYes

Event
Basic EventMotion detection, video tampering alarm, exception, PIR
LinkageUpload to memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email

General
Power
Power Consumption and Current:
Typical power scenarios: 1.85 W (4 G working)
Standby scenarios: 40 mW
Max. power consumption: 7.2 W
Power Supply:
12 VDC ± 25%
*For debugging only
40 W(deviation: ± 2 W) Solar panels
Power Interface:
Power supply interface: Φ5.5 mm coaxial power plug
Extened solar panel: four-core aviation connector
MaterialADC12
Storage Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Startup And Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
Dimension614.8 mm × 390.5 mm × 760 mm (24.2″ × 15.4″ × 29.9″)
Package Dimension837 mm × 267 mm × 445 mm (33″ × 10.5″ × 17.5″)
Weight
Pre-install plate: approx. 1080 g (2.4 lb.)
Bullet camera + bracket + solar panel: approx. 8540 g (18.8 lb.)
With Package Weightapprox. 11860 g (26.1 lb.)

Battery
Battery TypeTernary lithium
Capacity23.2 Ah
Max. Charging Voltage8.4 V
Operating Temperature
Charge: -20 °C to 45 °C (-4 °F to 113 °F). Charging Condition: -20 °C to 45 °C (-4 °F to 113 °F) (deviation: ± 5 °C)
Discharge: -20 °C to 55 °C (-4 °F to 131 °F). Discharging Condition: -20 °C to 55 °C (-4 °F to 131 °F) (deviation: ± 5 °C)
Battery Voltage5.5 V to 8.4 V
Cycle Lifetime
Performance mode: 2.5 day
Proactive mode: 4.5 day
Standby mode: 24 days
Battery LifeMore than 500 cycles

Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015)
RF
FCC ID (FCC Part 15.247(BT or 2.4G));
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G);
EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
Safety
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
