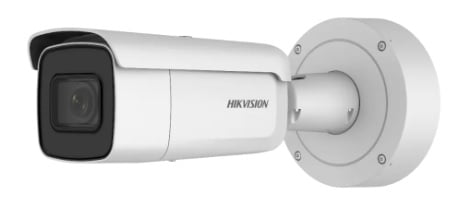

HIKVISION 4K OUTDOOR WDR MOTORIZED VARIFOCAL BULLET NETWORK CAMERA (DS-2CD2683G0-IZS)

₱18,400.00

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP66) and vandal proof (IK10)
Motorized vari-focal lens for easy installation and monitoring
Robust structure design with full metal materials.

SKU: HIKVISION 4K OUTDOOR WDR MOTORIZED VARIFOCAL BULLET NETWORK CAMERA (DS-2CD2683G0-IZS) Categories: Hikvision, Hikvision Bullet, Hikvision HD Analog and IP Cameras Tag: HIKVISION 4K OUTDOOR WDR MOTORIZED VARIFOCAL BULLET NETWORK CAMERA (DS-2CD2683G0-IZS)

Description

Camera
Image Sensor1/2.5″ Progressive Scan CMOS
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°

Lens
FocusAuto
Lens Type2.8 to 12 mm，Motorized
FOVHorizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°
ApertureF1.6
Lens MountΦ14
Aperture TypeFixed

Illuminator
IR RangeUp to 50 m
Wavelength850nm

Video
Max. Resolution3840 × 2160
Main Stream50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Scalable Video Coding (SVC)H.264 and H.265 encoding support

Audio
Environment Noise FilteringYes
Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
User/HostUp to 32 users,3 levels: Administrator, Operator and User
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Target CroppingNo
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface
Audio1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output1Vp-p composite output (75 Ω) (For adjustment only)
On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Face DetectionYes

General
Firmware Version5.6.3
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3at, class 4)
Power Consumption And Current12 VDC, 1.2A, max. 14.5W,PoE (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W
Camera DimensionΦ144.1 × 332.7 mm (Φ5.7″ × 13.1″)
Camera WeightCamera: 1893 g (4.2 lb.)
