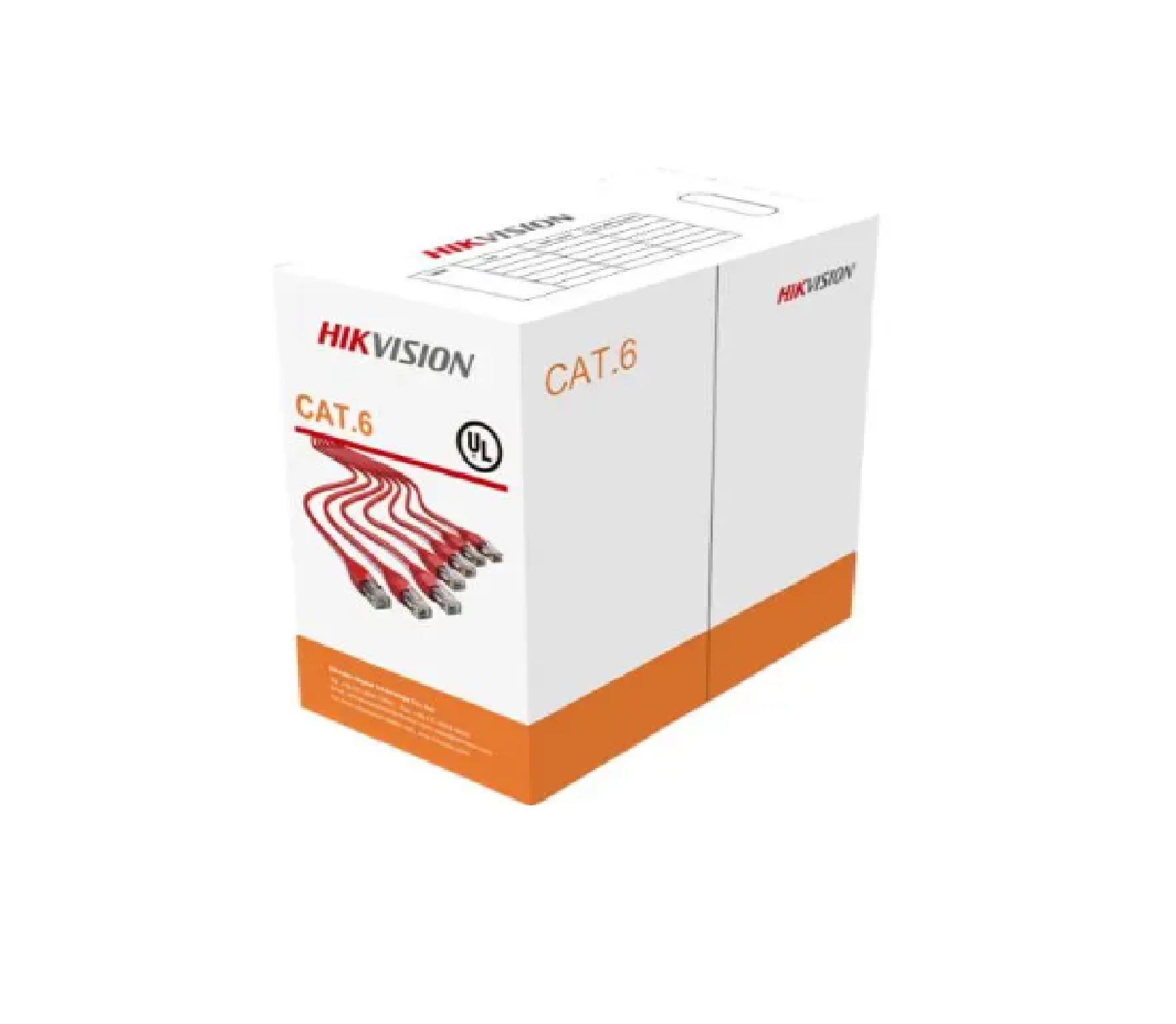

HIKVISION 305M CAT6 UTP NETWORK CABLE SOLID COPPER, 0.565MM, CM (DS-1LN6-UU)

SKU: HIKVISION 305M CAT6 UTP NETWORK CABLE SOLID COPPER, 0.565MM, CM (DS-1LN6-UU) Category: Hikvision Tags: 0.565MM, CM (DS-1LN6-UU), HIKVISION 305M CAT6 UTP NETWORK CABLE SOLID COPPER

General
Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,
PackingWooden Tray & Carton
Carton DimensionPer request
Packing Length305±1.5m
Rip-CordYes
Drain WireNo
Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
Electrical Characteristics (20℃)1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,
