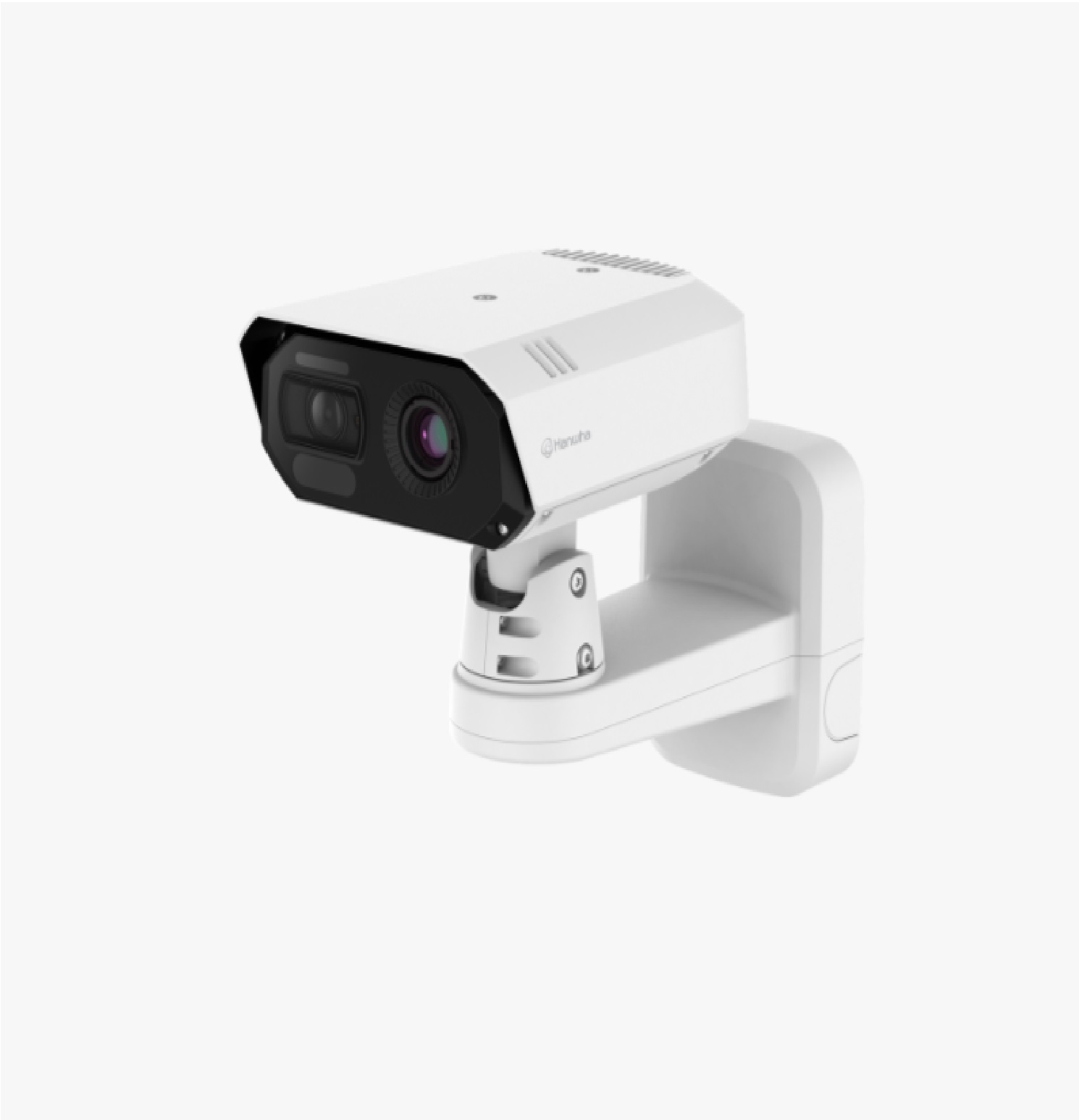

HANWHA BI-SPECTRUM AI RADIOMETRIC CAMERA VGA THERMAL / 4K VISIBLE (TNM-C4960TD)
₱526,800.00
• Bi-spectrum: VGA thermal & 8MP visible sensor
• Dual (thermal & visible) channel by one device, one IP
• Maximum 30fps @ all resolutions (H.265/H.264)
• Lens : 25mm fixed thermal & 10.9~29mm motorized varifocal visible
• Day & Night(ICR), WDR(120dB)
• Noise reduction : WiseNR II (Based on AI engine, visible only)
• Smart codec : WiseStream III (Based on AI engine, visible), WiseStream II (thermal)
• Video Analytics based on AI
• IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
• PoE+(IEEE802.3at), 12VDC
• Wall & Pole mount all-in-one design
| Video | Thermal | Visible | |
|---|---|---|---|
| Imaging Device | Size | 1/1.8″ | |
| Type | Uncooled micro bolometer (640×480) | CMOS | |
| Resolution | 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 | 3840×2160, 3072×1728, 2688×1520, 2592×1944, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 3fps | 1fps | |
| Others | Max. 15fps when both channel AI on | Max. 15fps when both channel AI on | |
| Spectral Range | 8~14㎛ | ||
| NETD | ≤60mK | ||
| Pixel Size | 12㎛ | ||
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.06 | |
| BW(1/30sec, 30IRE) | 0.005 | ||
| Video Out | USB: Micro USB Type B | ||
| Lens | Thermal | Visible | |
| Focal Length (mm) | 25 | 10.9~29 | |
| Max Aperture Ratio (F number) | Wide | 1.0 | 1.7 |
| Tele | 1.73 | ||
| Angular Field of View | Horizontal | 17° | 42°(Wide)~15°(Tele) |
| Vertical | 13° | 23°(Wide)~8°(Tele) | |
| Diagonal | 22° | 49°(Wide)~17°(Tele) | |
| iFoV | 0.48mRad | ||
| Min. Object Distance | 26m(85.30ft) | 2.5m(8.20ft) | |
| Focus Control | Fixed | Simple focus | |
| Pan / Tilt / Rotate | Thermal | Visible | |
| Pan / Tilt / Rotate Range | Pan | -170°~+170° | |
| Tilt | -40°~50° | ||
| Sequence | Preset(255ea) | ||
| Operational | Thermal | Visible | |
| Day & Night | Auto(ICR) | ||
| Backlight Compensation | BLC, WDR, SSDR | ||
| Wide Dynamic Range (dB) | 120 | ||
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | ||
| Digital Image Stabilization | Support(built-in gyro sensor) | ||
| Motion Detection | Quantity | 8ea | |
| Shape | 8point Polygonal zones | ||
| Privacy Masking | Quantity | 6ea | |
| Shape | Rectangular zones | ||
| Color / Option | Gray, Black, White | ||
| Gain Control | Low, Middle, High | ||
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | ||
| LDC | Support | ||
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) | |
| Speed Range | 1/5~1/12,000sec | ||
| Alarm Interface | In/Out | 4 configurable I/O ports | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | ||
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback | ||
| Audio In | Selectable(mic in/line in) | ||
| Audio Out | Line out | ||
| Color Pallettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom | ||
| Analytics | Thermal | Visible | |
| Classified Object Type | Person, Vehicle | Person, Face, Vehicle, License plate | |
| Attributes | Vehicle | Type(car, bus, truck, motorcycle, bicycle) | |
| Thumbnail | BestShot | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Stopped vehicle, Traffic jam | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Stopped vehicle, Traffic jam |
| Normal | Motion detection, Temperature change detection | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear) | |
| Business Intelligence | Normal | Vehicle counting | Vehicle counting |
| Network | Thermal | Visible | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | ||
| Video Compression | H.265/H.264: Main/High, MJPEG | ||
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | ||
| Smart Codec | Manual, WiseStreamⅡ | ||
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | ||
| Streaming | Unicast | Up to 6 users | |
| Multicast | Support | ||
| Multiple Streaming | Up to 3 profiles | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast) | ||
| Application Programming Interface | ONVIF | S, T | |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | ||
| Direct Cloud Connection | Support | ||
| Security | Thermal | Visible | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | ||
| User authentication | Digest authentication | ||
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | ||
| Secure Communication | HTTPS, WSS(WebSocket Secure) | ||
| Access Control | IP-based access control | ||
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | ||
| Audit | Access / System / Event Log management | ||
| Device ID | Device certificate(Hanwha Vision Root CA) | ||
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) | ||
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 | ||
| General | Thermal | Visible | |
| Memory | RAM | 4GB | |
| Flash | 512MB | ||
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) | |
| Environmental & Electrical | Thermal | Visible | |
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) | |
| Humidity | 0~95% RH(non-condensing) | ||
| Others | Start up should be done at above -30°C | ||
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) | |
| Humidity | 0~90% RH(non-condensing) | ||
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | ||
| Power Consumption | PoE | Max. 23.5W, Typ 16.0W | |
| 12VDC | Max. 19.5W, Typ 14.0W | ||
| Mechanical | Thermal | Visible | |
| Color | White | ||
| Material | Aluminum | ||
| RAL Code | RAL9003 | ||
| Product Dimensions | 353.4(W)x287.5(H)x191.2(D)mm(13.92×11.32×7.53″) | ||
| Product Weight | 4.53kg(9.99lb) | ||
| Certifications & Standards | Thermal | Visible | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | ||
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | ||
| Environment | IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X | ||
| DORI (EN62676-4 standard) | Thermal | Visible | |
| Detect (25PPM/ 8PPF) | Wide | 200.1m(656.40ft) | |
| Tele | 583.4m(1913.89ft) | ||
| Observe (63PPM/ 19PPF) | Wide | 80.0m(262.56ft) | |
| Tele | 233.3m(765.56ft) | ||
| Recognize (125PPM/ 38PPF) | Wide | 40.0m(131.28ft) | |
| Tele | 116.7m(382.78ft) | ||
