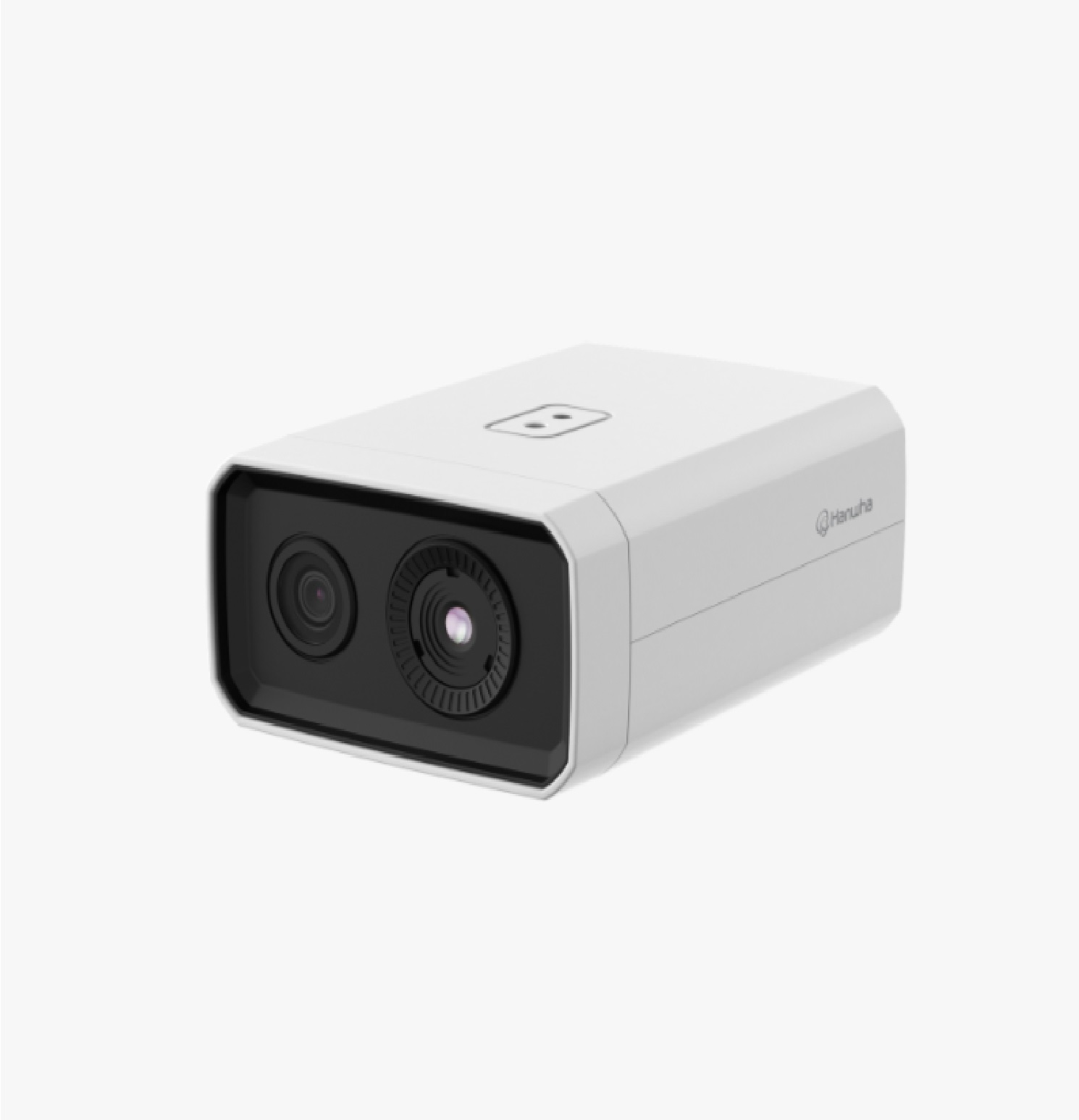

HANWHA BI-SPECTRUM AI RADIOMETRIC CAMERA QVGA THERMAL/ 2MP VISIBLE (TNM-C3622TDR)
₱365,640.00
• Bi-spectrum monitoring with 2MP visible & QVGA thermal
• AI based Object classification with visible channel only (person)
• Remote Temperature Monitoring within -20 ~ 130°C range
• 6 of quadrangle ROI areas for temperature monitoring
• Compact and Light-weight for Indoor purpose
| Video | Thermal | Visible | |
|---|---|---|---|
| Imaging Device | Size | 1/2.8″ | |
| Type | Uncooled micro bolometer (320×240) | CMOS | |
| Resolution | 1280×960, 640×480, 320×240 | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | |
| Max. Framerate | H.265/H.264 | 8fps | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 8fps | 30fps | |
| Spectral Range | 8~14㎛ | ||
| NETD | ≤50mK | ||
| Pixel Size | 12㎛ | ||
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.05 | |
| BW(1/30sec, 30IRE) | 0.005 | ||
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B | ||
| Lens | Thermal | Visible | |
| Focal Length (mm) | 4.7 | 4 | |
| Max Aperture Ratio (F number) | Wide | F1.0 | 1.6 |
| Angular Field of View | Horizontal | 50° | 87.6° |
| Vertical | 37° | 46.4° | |
| Diagonal | 66° | 104.5° | |
| iFoV | 2.553mRad | ||
| Min. Object Distance | 1m(3.28ft) | ||
| Focus Control | Fixed | Fixed | |
| Operational | Thermal | Visible | |
| Day & Night | Auto(ICR) | ||
| Backlight Compensation | BLC, WDR, SSDR | ||
| Wide Dynamic Range (dB) | 150 | ||
| Digital Noise Reduction | SSNRⅤ | ||
| Digital Image Stabilization | Support(built-in gyro sensor) | ||
| Motion Detection | Quantity | 8ea | |
| Shape | 8point Polygonal zones | ||
| Privacy Masking | Quantity | 24ea | |
| Shape | Polygonal zones | ||
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | ||
| Gain Control | Low, Middle, High | ||
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | ||
| LDC | Support | ||
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker | |
| Speed Range | 2~1/12,000sec | ||
| Video Rotation | Flip, Mirror | ||
| Alarm Interface | In/Out | Input 1ea, Output 2ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription | ||
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, MQTT: publication | ||
| Audio In | Selectable(mic in/line in) | ||
| Audio Out | Line out | ||
| Color Pallettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom | ||
| Analytics | Thermal | Visible | |
| Classified Object Type | Person, Face | ||
| Analytics Events | Based on AI Engine | Object detection | |
| Normal | Motion detection, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) , Temperature detection | Motion detection, Tampering, Audio detection, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) | |
| Radiometry | Thermal | Visible | |
| Temperature Detect Range | -20°C~130°C | ||
| Temperature Accuracy | ±5°C(≤100°C), ±20%(>100°C) | ||
| Temperature Detection ROI Zones | Quantity | 6ea | |
| Shape / Option | Quadrangle | ||
| Hybrid Pallettes | Support | ||
| Spot Temperature Reading | Support | ||
| ROI Condition Monitoring | Above, Below, Increase, Decrease | ||
| Network | Thermal | Visible | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T), RJ-45(10/100BASE-T) | ||
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | ||
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | ||
| Smart Codec | Manual, WiseStreamⅡ | ||
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | ||
| Streaming | Unicast | Up to 20 users | |
| Multicast | Support | ||
| Multiple Streaming | Up to 6 profiles | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT | ||
| Application Programming Interface | ONVIF | S, T, M | |
| Others | SUNAPI(HTTP API) | ||
| Direct Cloud Connection | Optional (needs gateway) | ||
| Security | Thermal | Visible | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | ||
| User authentication | Digest authentication | ||
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | ||
| Secure Communication | HTTPS, WSS(WebSocket Secure) | ||
| Access Control | IP-based access control | ||
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | ||
| Audit | Access / System / Event Log management | ||
| Device ID | Device certificate(Hanwha Vision Root CA) | ||
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) | ||
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 | ||
| General | Thermal | Visible | |
| Memory | RAM | 4GB | |
| Flash | 512MB | ||
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot | |
| Environmental & Electrical | Thermal | Visible | |
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) | |
| Humidity | 0~95% RH(non-condensing) | ||
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) | |
| Humidity | 0~95% RH(non-condensing) | ||
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | ||
| Power Consumption | PoE | Max. 17.0W, typical 12.5W | |
| 12VDC | Max. 14.5W, typical 11.0W | ||
| Mechanical | Thermal | Visible | |
| Color | White | ||
| Material | Aluminum | ||
| RAL Code | RAL9003 | ||
| Product Dimensions | 135(W)x75(H)x188.5(D)mm(5.31×2.95×7.42″) | ||
| Product Weight | 1.7kg(3.77lb) | ||
| Certifications & Standards | Thermal | Visible | |
| EMC | FCC 47 CFR 15 Subpart B Class A, CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, IC Regulation ICES 003: 2016 ANSI C63.4 2014 Class A | ||
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | ||
| Environment | IEC/EN 63000 | ||
| DORI (EN62676-4 standard) | Thermal | Visible | |
| Detect (25PPM/ 8PPF) | Wide | 80.1m(262.8ft) | |
| Observe (63PPM/ 19PPF) | Wide | 32.0m(105.1ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 16.0m(52.6ft) | |
| Identify (250PPM/ 76PPF) | Wide | 8.0m(26.3ft) | |
