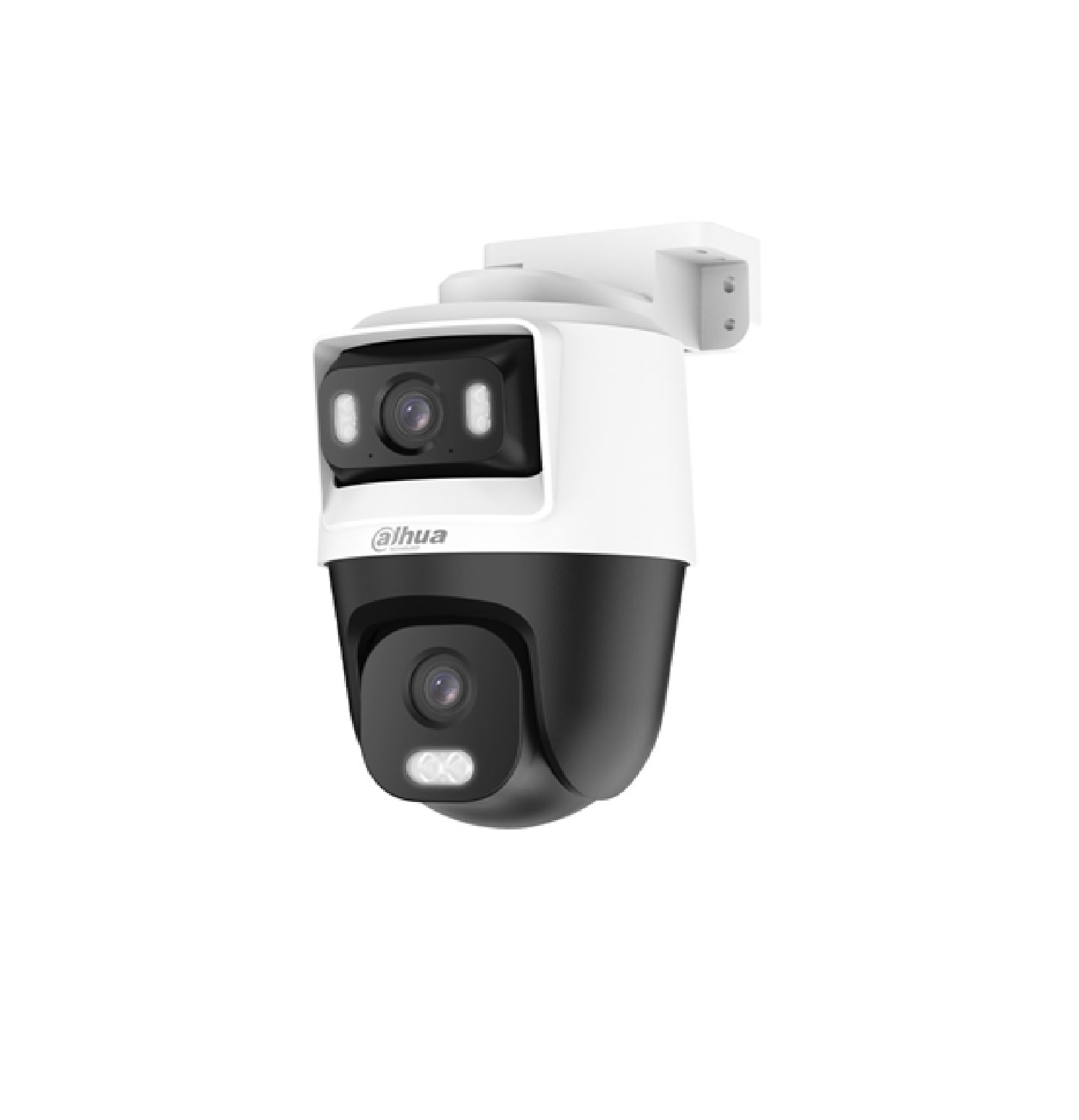

DAHUA 5MP SMART DUAL LIGHT OUTDOOR HDCVI DUAL-LENS PT CAMERA (DH-HAC-PTS1500CN-E2-IL-A-0280B/0600B)

Camera

Image Sensor

2×CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s-1/1,000 s
NTSC: 1/30 s-1/1,000 s

Min. Illumination

0.005 lux@F2.0 (Color, 30 IRE)
0.0005 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 50 m (164.04 ft)

Warm Light: 50 m (164.04 ft)

Illuminator On/Off Control

Auto

Illuminator Number

Fixed Lens: 4 (Multi-core light)
PT Lens: 2 (Multi-core light)

Angle Adjustment

Fixed Lens: Tilt: 5°–10°
PT Lens: Pan: 0°–355°; Tilt: 0°–90°
Bracket: Pan: 0°–326°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

PT Lens: 6 mm
Fixed Lens: 2.8 mm

Max. Aperture

F2.0

Field of View

Fixed Lens: H: 111.3°; V: 60.8°; D: 134.2°
PT Lens: H: 48.1°; V: 26.7°; D: 55.5°

Close Focus Distance

Fixed Lens: 0.5 m (1.64 ft)
PT Lens: 2.3 m (7.55 ft)

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft);
6 mm: 2.3 m (7.55 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

Fixed Lens

40.6 m

(133.20 ft)

16.2 m

(53.15 ft)

8.1 m

(26.57 ft)

4.1 m

(13.45 ft)

PT Lens

93.3 m

(306.10 ft)

37.3 m

(122.38 ft)

18.7 m

(61.35 ft)

9.3 m

(30.51 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps
NTSC: 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Defog

Electronic defog

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

PT

Pan/Tilt Range

Pan: 0°–355°
Tilt: 0°–90°
*Do not manually adjust the angle of the main body or enclosure.

Preset

40

Linkage Tracking

Yes

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Audio

Built-in Mic

Yes

Camera Audio

CVI; TVI

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 10.1 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP66

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Plastic

Product Dimensions

162.5 mm × 122.6 mm × 218.2 mm (6.40″ × 4.83″ × 8.59″) (L × W × H)

Net Weight

0.66 kg (1.46 lb)

Gross Weight

1.09 kg (2.40 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
