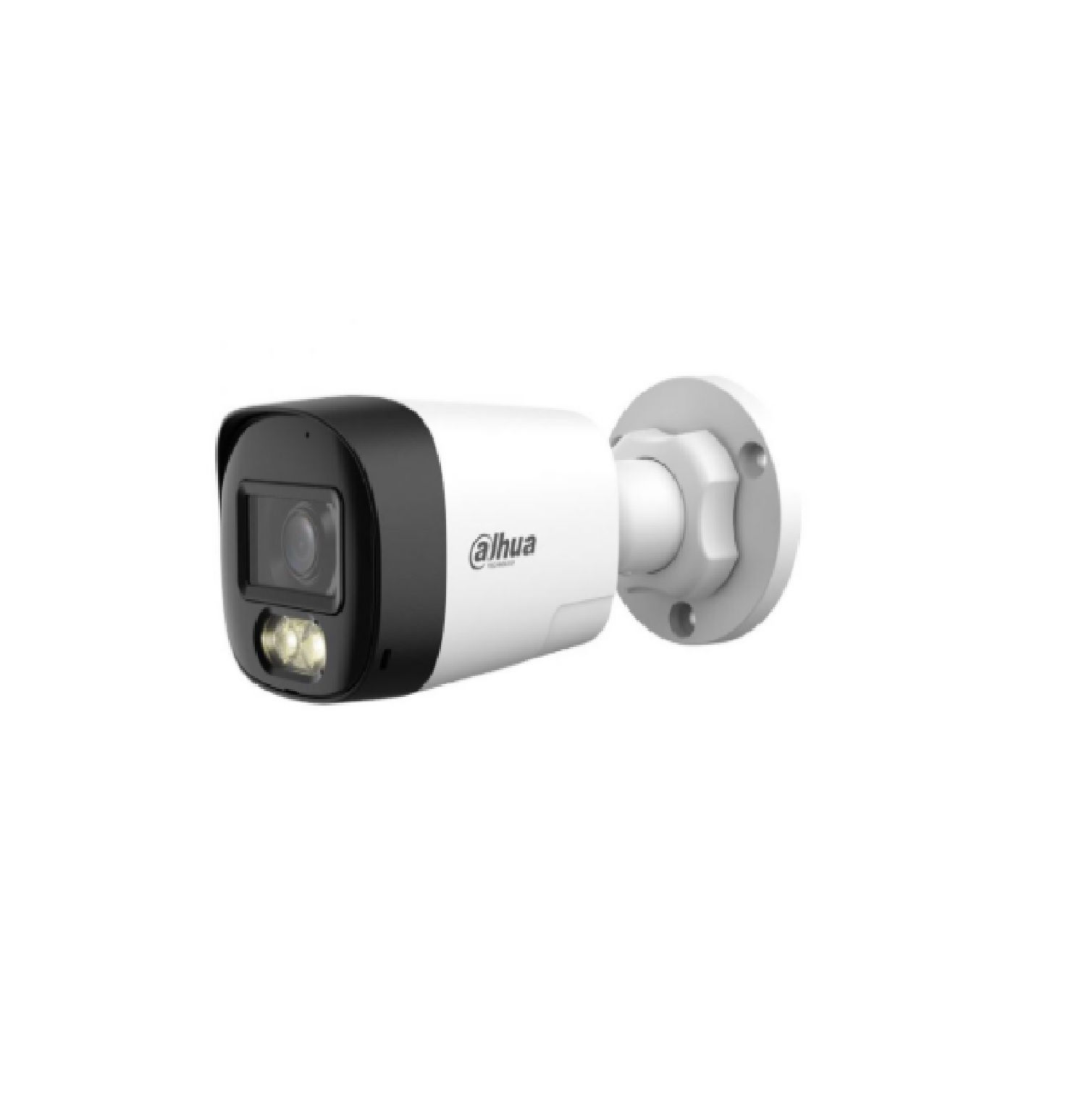

DAHUA 2MP SMART DUAL LIGHT HDCVI TWO-WAY TALK FIXED-FOCAL BULLET CAMERA (DH-HAC-HFW1200RLN-IL-T-0280B-DIP)

Name: DAHUA 2MP SMART DUAL LIGHT HDCVI TWO-WAY TALK FIXED-FOCAL BULLET CAMERA (DH-HAC-HFW1200RLN-IL-T-0280B-DIP)
SKU: DAHUA 2MP SMART DUAL LIGHT HDCVI TWO-WAY TALK FIXED-FOCAL BULLET CAMERA (DH-HAC-HFW1200RLN-IL-T-0280B-DIP)
Availability: InStock

₱2,270.00

High-Quality Imaging with 1080P Resolution

Smart Dual Light: Built-in IR and LED Lights with 3 Illumination Modes Supported

30 m Illumination Distance for Superior Camera Image Quality

High-Quality Two-Way Talk Technology: Built-In Mic and High-Power Speaker

Smart Light+ : Clear Details with Advanced LED Processing Technology

3DNR & DWDR & Super Adapt Ensures Clear Details in Strong Backlight Conditions

Effortless Signal Selection with DIP Switch

Time-saving Installation with Quick-to-install Structure

Add to wishlist

SKU: DAHUA 2MP SMART DUAL LIGHT HDCVI TWO-WAY TALK FIXED-FOCAL BULLET CAMERA (DH-HAC-HFW1200RLN-IL-T-0280B-DIP) Categories: Brands, Dahua, Dahua Bullet, Dahua HD Analog and IP Cameras Tag: DAHUA 2MP SMART DUAL LIGHT HDCVI TWO-WAY TALK FIXED-FOCAL BULLET CAMERA (DH-HAC-HFW1200RLN-IL-T-0280B-DIP)

Description

Camera

Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) × 1080 (V)
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Min. Illumination	0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>65 dB
Illumination Distance	30 m (98.43 ft)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	2 (Multi-core light)
Angle Adjustment	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 111.3°; V: 60.8°; D: 134.2°
3.6 mm: H: 89°; V: 48.2°; D: 109.1°

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	40.6 m ( 133.20 ft)	16.2 m ( 53.15 ft)	8.1 m ( 26.57 ft)	4.1 m ( 13.45 ft)
3.6 mm	49.9 m ( 163.71 ft)	20.0 m ( 65.62 ft)	10.0 m ( 32.81 ft)	5.0 m ( 16.40 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate	CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H
Resolution	1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night	Auto(ICR)/Color/B/W
BLC	BLC; HLC; WDR; HLC-Pro
WDR	DWDR
White Balance	Auto
Gain Control	Manual;Auto
Noise Reduction	3D NR
Illumination Mode	Smart IR&WL (CVI, TVI); WL Mode; IR Mode
Mirror	Yes
Pick-up Distance	8 m (26.25 ft)

Certification

Certifications	CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035;

Audio

Built-in Mic	Yes, up to 8 m (26.25 ft)
Camera Audio	CVI; TVI
Two-way Talk	Yes (CVI, TVI)
Speaker	Yes, up to 8 m (26.25 ft)

Port

Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply	12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)
Power Consumption	Max 6.6 W (12 VDC, IR on)

Environment

Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	<95% (RH), non-condensing
Protection	IP67
Anti-corrosion Level	Basic Protection

Structure

Casing Material	Plastic
Product Dimensions	161.6 mm × 69.7 mm × 70.0 mm (6.36″ × 2.74″ × 2.76″) (L × W × H)
Net Weight	0.20 kg (0.44 lb)
Gross Weight	0.29 kg (0.64 lb)
Installation	Wall mount; ceiling mount; vertical pole mount
