Name: ASENWARE ADDRESSABLE FIRE BELL 6 INCHES (AW-D109)
SKU: ASENWARE ADDRESSABLE FIRE BELL 6 INCHES (AW-D109)
Price: 4700.00 PHP
Availability: InStock

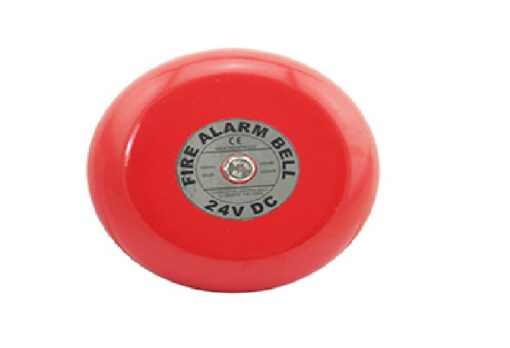

ASENWARE ADDRESSABLE FIRE BELL 6 INCHES (AW-D109)

₱4,700.00

Product overview

Asenware AW-D109 is an intelligent bell, which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel. Each point (devices) can be given specific ID, which allows the panel to continuously monitor specific bell location (point). AW-D109 alarm bells are low-current, highdecibel notification appliances for use in fire signaling applications.

Product Features

Addressable Fire alarm Bell Features:

• Addressable-analog communication
• Low Standby current
• High decibel rating

Technical parameters

Addressable Fire alarm Bell Technical parameters:

Model No.	AW-D109
D/C	1710
Work Voltage	18V-28V DC
Standby Current	≤3 mA
Alarm Current	≤50 mA
Certificate	ISO9001/CE/ROHS
Size	110 mm×110 mm

Fire alarm bell wiring/install:

AW-D109 addressable bell comes with mounting enclosure which can be easily
installed.

how to wiring/install Fire alarm bell
*All dimensions are in mm
