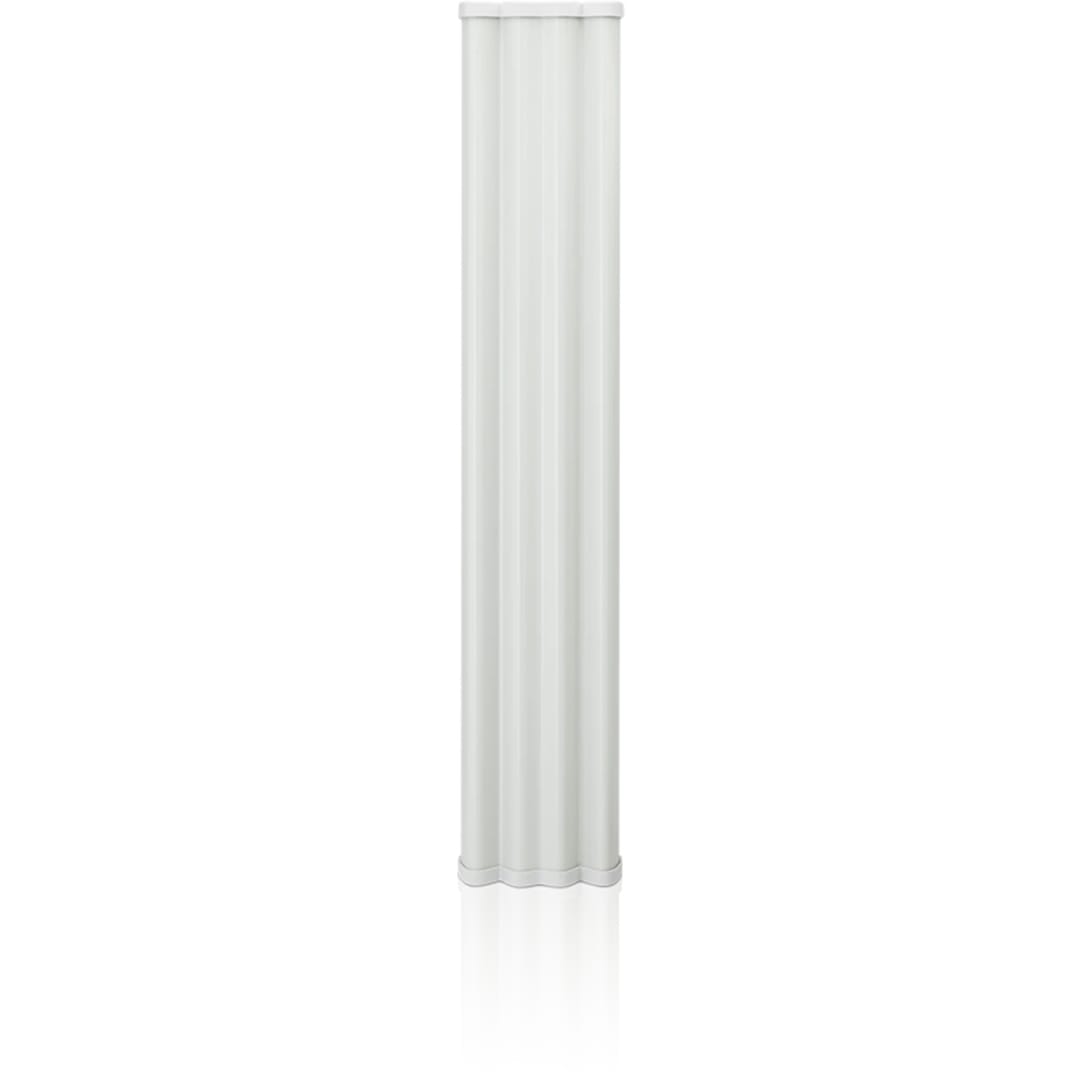

UBIQUITI Air Max 20dBi 5GHz Sector Antenna (AM-5G20-90)

₱14,100.00

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2×2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Add to wishlist

SKU: UBIQUITI Air Max 20dBi 5GHz Sector Antenna (AM-5G20-90) Categories: Ubiquiti, Ubiquiti Accessories Tag: UBIQUITI Air Max 20dBi 5GHz Sector Antenna (AM-5G20-90)

Description

AM-5G20-90
Dimensions	700 x 135 x 70 mm (27.56 x 5.32 x x 2.76″)
Weight (Mount Included)	5.9 kg (13.01 lb)
Frequency	5.15 – 5.85 GHz
Gain	19.4 – 20.3 dBi
HPOL Beamwidth	91° (6 dB)
VPOL Beamwidth	85° (6 dB)
Elevation Beamwidth	4°
Electrical Downtilt	2°
Max. VSWR	1.5:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	182 N @ 200 km/h (41 lbf @ 125 mph)
Polarization	Dual Linear
Cross-Pol Isolation	28 dB Min.
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
