VIDEO AND AUDIO | |
---|---|
IP Video Input | 16-Channel |
Incoming Bandwidth | 80 Mbps |
Outgoing Bandwidth | 60 Mbps |
HDMI Output Resolution | 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
Video Output Mode | HDMI/VGA Simultaneous Output |
Multi-View Display | 1/4/6/8/9/16 |
DECODING | |
---|---|
Audio Compression | G.711A/G.711U/G.726 |
Video Compression | H.265+/H.265/ H.264+/H.264 |
Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 16-Channel |
Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP30fps: 4-ch @ 3MP, 2-ch @ 5MP |
RECORD MANAGEMENT | |
---|---|
Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
Backup Mode | Regular Backup, Video Clip Backup |
Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
NETWORK | |
---|---|
Protocol | UPnP (Plug and Play), NTP (Network Timing) |
Mobile Phone Access | Android, iOS |
Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
Interoperability | ONVIF, CGI |
EXTERNAL INTERFACE | |
---|---|
Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
Audio Interface | 1, Audio In; 1, Audio Out |
Alarm In/Out | N/A |
Serial Interface | N/A |
Power | 1× DC Jack |
Reset Button | 1 |
Speaker | N/A |
eSATA | 1 |
HDMI | 1 |
VGA | 1 |
HARD DISK | |
---|---|
SATA | 2 SATA Interfaces |
Capacity | Up to 10 TB Capacity for Each HDD |
POE | |
---|---|
Standard | 802.3at/af Compliant |
Interface | 1- 16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
PoE Budget | 90 W Available for All PoE+ Ports, 30 W Max per Port |
ALARM | |
---|---|
General Alarm | Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame |
Anomaly Alarm | Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception |
Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
GENERAL | |
---|---|
Storage Temperature | -40–70 °C |
Storage Humidity | 10%~90% RH Non-Condensing |

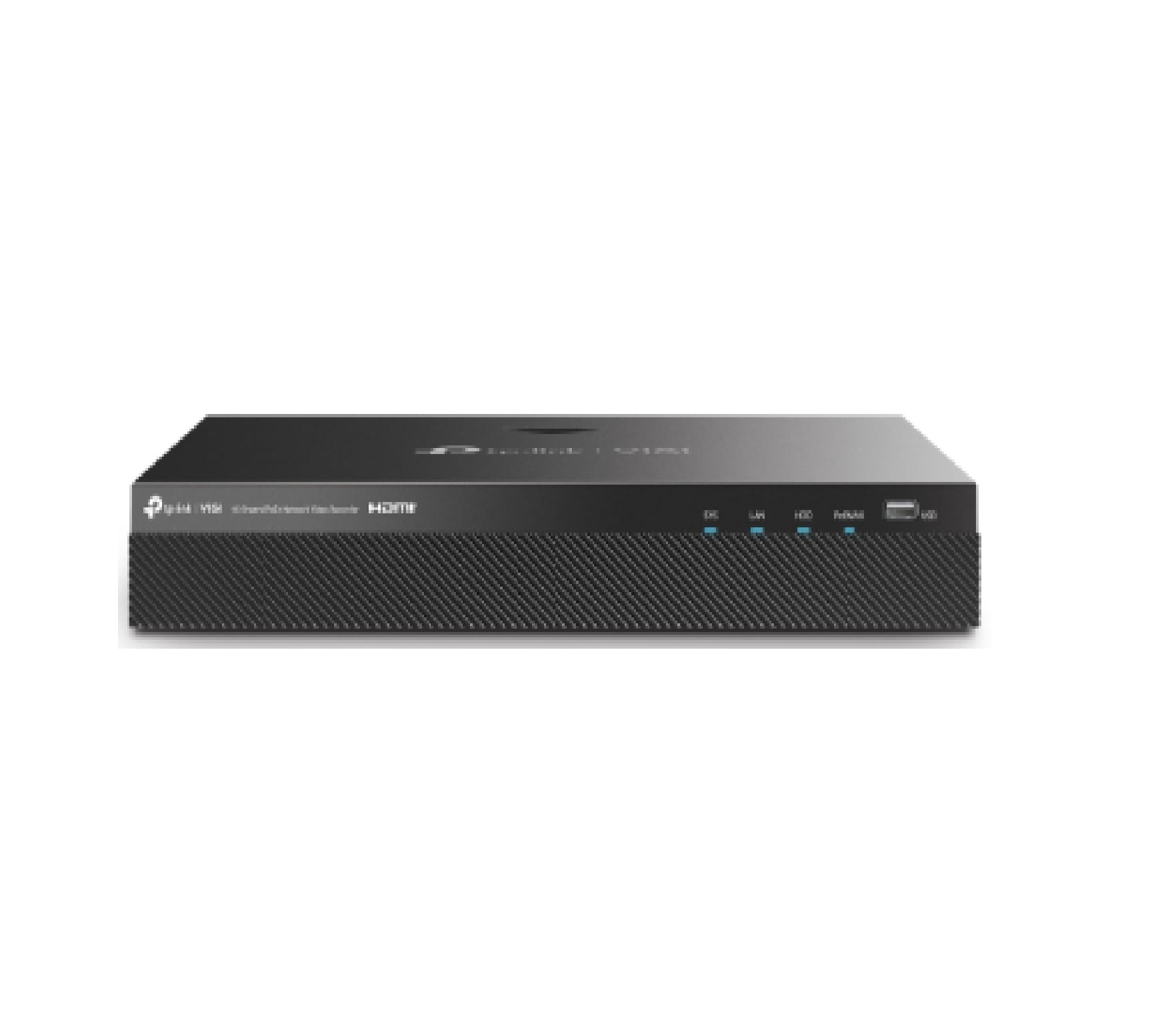

Package Contents | VIGI Network Video Recorder Power Adapter Power Cables HDD Power Cables HDD Data Cables Mounting Accessories Mouse Quick Installation Guide |
Working Temperature | NVR: -10–55 °C Power Adapter: 0–40 °C |
Working Humidity | 10%~90% RH Non-Condensing |
Dimensions( W X D X H ) | 330 × 285 × 45 mm |
Net Weight | 1.9 Kg |
Gross Weight | 3.2 Kg |
Power Supply | 53.5V DC/2.43A |
Power Consumption | 6.2 W (Without Disk) 40 W (With Disk) |
Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
