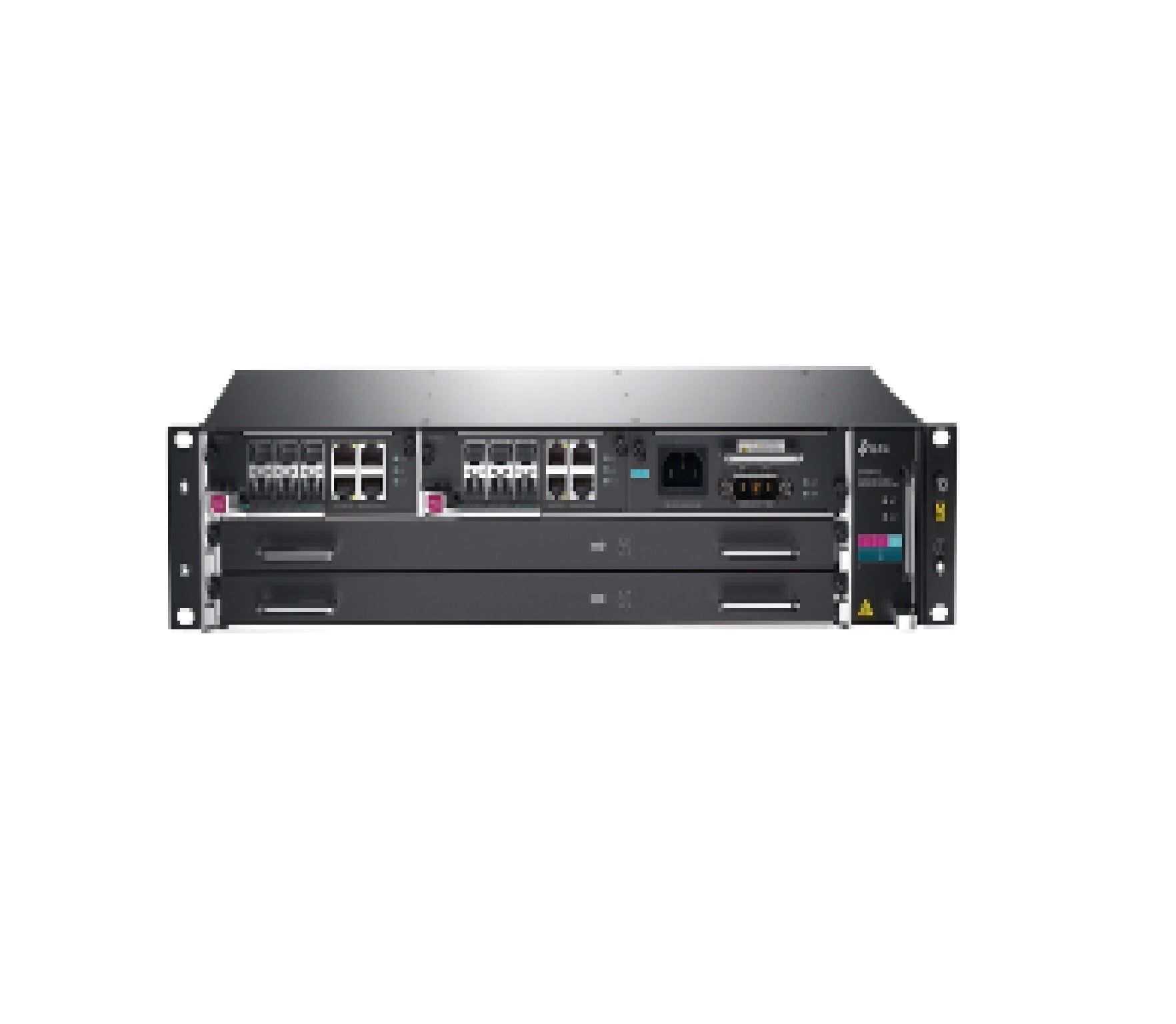

TPLINK DS-P8000-X2

₱209,440.00

32× PON Ports: 2× service boards support up to 32 GPON ports or 32× XGS-PON & GPON combo ports.*
High Scalability: Supports 1:128 splitting ratio for GPON port and 1:256 for XGS-PON port.
High Reliability: Dual main control units ensure automatic service switching without interruption.
High-Speed Uplink Ports: 6× 10G SFP+ ports (per control unit) offer high-bandwidth connectivity.
Dual Power Supplies: Carrier-class reliability with pluggable AC+DC power supply.
L2 & Advanced L3 Functions: Satisfy numerous commercial needs.
Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.

SKU: TPLINK DS-P8000-X2 Category: TPLink

HARDWARE FEATURES
Interface	2× Service Boards up to 32× GPON Ports or 32× XGS-PON & GPON Combo Ports* Dual Main Control Unit： Each with 6× 10G SFP+ 1× 1000M RJ45 Port 1× RJ45 Console Port 1× RJ45 Management Port 1× Alarm Port
Button	Reset Button
Power Supply	Dual Power Supply, AC+DC AC: 100V~240V, 50/60Hz DC: -38.4V~-57.6V
Power Consumption	2× DS-MCUA + 2× DS-LGPA-16 + DS-PSUA + DS-FANA: Max 262W
Dimensions ( W x D x H )	Without angle iron and fiber manager: 443 × 271.3 × 88 mmWith angle iron, without fiber manager: 446 × 271.3 × 88 mm (excluding angle iron mounting ears) 483 × 271.3 × 88 mm (including angle iron mounting ears) With angle iron and fiber manager: 447.2 × 271.3 × 88 mm (excluding angle iron mounting ears) 484.2 × 271.3 × 88mm (including angle iron mounting ears)

SOFTWARE FEATURES
Security	ACL
DHCP	DHCP Server DHCP Relay
OMCI	Standard OMCI Management Supported
ONU Authentication	ONU Auto Authentication
ONU Security	Rouge ONU Detection and Isolation
Multi-Service	Multi-Service Traffic Identify and Rate Limit
QoS	IEEE 802.1p/DSCP QoS Voice VLAN Auto VoIP
Routing	Static Routing
Mulitcast	IGMP Snooping MLD Snooping
Centralized Management	Large-Scale Devices Management OLT Batch Configure, Upgrade, Reboot Multi-Site Management Intelligent Network Monitoring Real-time Network Overview

GPON PORT ATTRIBUTE
Max. Splitting Ratio	1:128 for GPON, 1:256 for XGS-PON
Transmission distance	20 km
Data rate	GPON Downstream: 2.5 Gbps, Upstream: 1.25 GbpsXGS-PON Downstream: 9.953 Gbps, Upstream: 9.953 Gbps
Wavelength	Tx: 1490 nm Rx: 1310 nm
Interface type	SC/UPC
Fiber type	9/125μm SMF (Single Mode Fiber)
Tx power	Class C+

OTHERS
Certification	CE,FCC
Package Contents	Chassis Optical Line Terminal DS-P8000-X2 1× AC Power Cord 1× DC Power Cord, 1× Console CableInstallation Guide Fiber Manager and Ground Wire Mouting Brackets, Screws and Rubber Feet ESD-Preventive Wrist Wrap
Environment	Operating Temperature: 0℃–50℃ (32℉–122℉) Storage Temperature: -40℃–70℃ (-40℉–158℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
