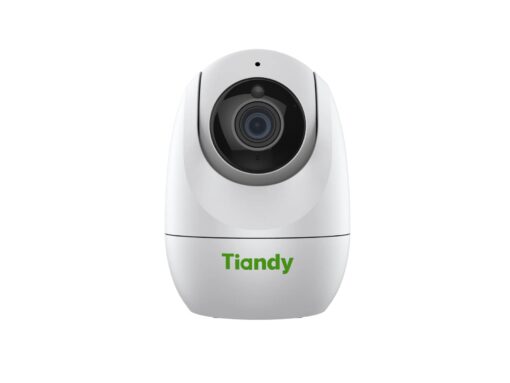

TIANDY 3MP Wi-Fi TC-H332N I2W/WIFI/4mm/V4.0

₱1,865.00

Up to 2304×1296@20fps
·Smart IR, IR Range: 20m
·2-way Talk,Built-in Mic/Speaker
·360° panoramic view
·Privacy Mode
·WiFi
·Support Human Detection and Tracking
·DC12V±25%

Add to wishlist

Categories: Tiandy, Tiandy Dome Tag: TIANDY 3MP Wi-Fi TC-H332N I2W/WIFI/4mm/V4.0

Description

Camera
Image Sensor	1/2.8″ CMOS
Signal System	PAL/NTSC
Min. Lighting	Color:0.02Lux@ (F2.0, AGC ON), B/W:0Lux with IR
Shutter Time	1/1s～1/100000s
Day and night	IR Cut Filter with Auto Switch
Zoom	2X
Lens
Zoom	N/A
Focal Length	4mm
Field of view	Horizontal Field of View: 82.4° (w)~1.54° (t), Vertical Field of View: 45.4° (w)~0.87° (t), Diagonal Field of View: 96.2°(w)~1.77(t)
Aperture	F2.0
Close Focus Distance	2m
Pan&Tilt
Scroll Range	350°
Scroll Speed	35°/s
Slope Range	0°~115°(Default 90°)
Tilt Speed	19°/s
3D Location	N/A
Preset	256
Shutdown Memory	Available
Enlightening
IR LEDs	4
IR Distance	20m
White LEDs	1,Support Flash
Compression Standard
Video Compression	S 265/H.265/H.264 (High profile、Main profile、Baseline)
Video Bitrate	32k~4M(Main Stream),32k~1M(Sub Stream)
Audio Compression	G.711A/G.711U
Audio Bitrate	8kHz/16kHz
Views
Max. Resolution	3MP(2304×1296)
Main Stream	PAL:20fps(2304×1296,1920×1080,1280×720,704×576,640×480) NTSC:20fps(2304×1296,1920×1080,1280×720,704×480,640×480)
Substream	PAL: 20fps(704×576,704×288,352×288,640×360) NTSC: 20fps(704×480,704×240,352×240,640×360)
Third Stream	N/A
Image Adjustment	Saturation, brightness, contrast, sharpness can be adjusted via client software or web.
HLC	Available
WDR	WDR
Image Stabilization	N/A
Image Placement	N/A
Private Area Masking	Available, 4 Regions
Defog	Digital
White Space	Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
AGC	Available
Noise Reduction	2D/3D
ROI	N/A
Picture	N/A
Privacy Mask	Available, 4 Fields
Flip	Available
OSD	16x16,32x32 adaptive size, Total 1 Zone
Features
Alarm Trigger	Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict
Video Analysis	N/A
Early Warning (EW)	Available
Auto-Tracking	Current,Human Detection
network
User/Host	Up to 8 users, 4 user levels.
Protocols	HTTP/TCP/UDP/DHCP/RTMP/RTSP/FTP/NTP/DNS
System Compatibility	ONVIF(PROFILE S/T),SDK,CGI,RTSP
ANR	Available
Remote Connection	≤2
web	IE8 ,Firefox,Edge,Safari,Chrome
WI-FI
Transmission Distance	Up to 30m(s) depending on actual environment
Wi-fi Standard	IEEE802.11b/802.11g/802.11n
Frequency range	2.4GHz ~ 2.4835GHz
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Sound	N/A
Alarm	N/A
Speaker	Available
Reset Button	Available
Onboard Storage	Internal MicroSD card slot, max 512 GB
General features
Firmware Version	–
Web Client Language	2 languages English, Simplified Chinese
Working conditions	-10℃～45℃(IR OFF), 0-95%RH
Power source	DC12V±25%
Power consumption	37W (IR OFF), 62W (IR ON)
Heater	N/A
Materiel	Plastic
Dimensions	Φ95x160mm (Φ80x113mm
Net weight	0.38kg (0.22kg)
