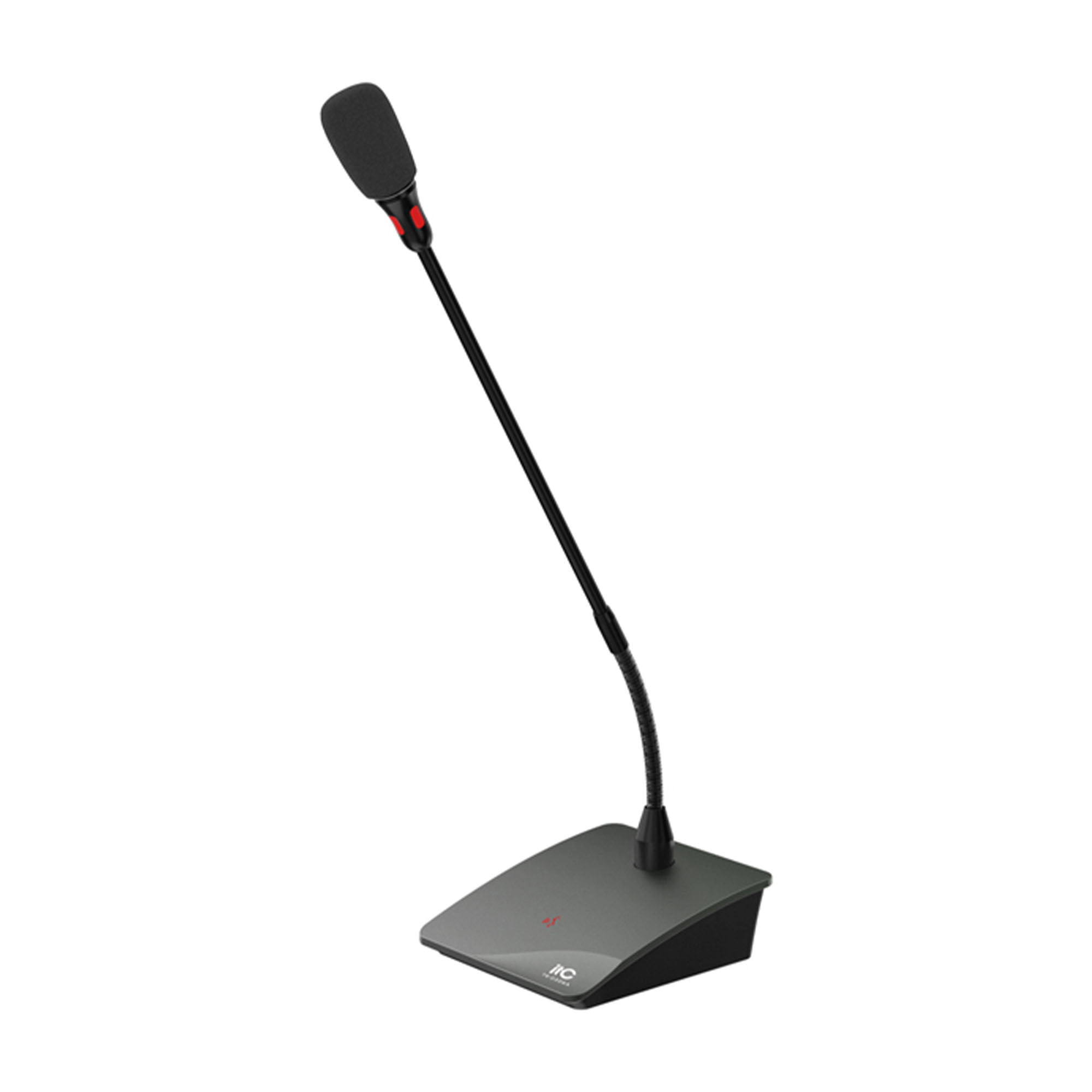

The third-generation brand-new economic microphone has compact design,neat and beautiful appearance. It adopts double network port design to realize hand-in-hand connection with network cable, instead of the traditional six-pin aviation cable. Without the limitation of special wires, it greatly reduces the difficulty of wiring.
* The microphone unit adopts the capacitive touch button, without the key knocking noise, creates a good conference environment.
* The capacitive touch button is waterproof and dust-proof.
* Adopt uncompressed audio transmission technology, 48K sampling rate, perfect sound quality with 80Hz-16KHz bandwidth.
* Adopt double network port design, hand-in-hand connection with network cable, convenient wiring with network cable only, no limitation of special cable.
* Support sign-in function, can stop and control the unit sign-in through the PC software.
* Support controlling the microphone through PC software, support voice control function and adjustable voice control sensitivity.
* Support online firmware upgrade through the web.
* Support the settings of microphone volume and sensitivity through the web.
* Support the settings of the unit ID number, voice control sensitivity, and the voice control closing time through the web.
* Support the setting of 5-band EQ adjustment function through the web, which can adjust sound effects according to the voice characteristics of different speakers until the perfect effect is achieved.
* Support IP address detection, the ID number, IP address and MAC address of unknown units can be searched by PC software.
* The chairman unit has the priority function to turn off the delegate unit that is speaking.
|Microphone type||Electret capacitive|
|Sensitivity||-36±1.5dB (0dB=1V/Pa, at 1KHz)|
|Maximum SPL||120dB (THD>3%)|
|Maximum power consumption||2 W|
|Power supply||Conference controller power supply|
|Sign-in||Sign-in by pressing button|
|Microphone length and color||380mm, black|
