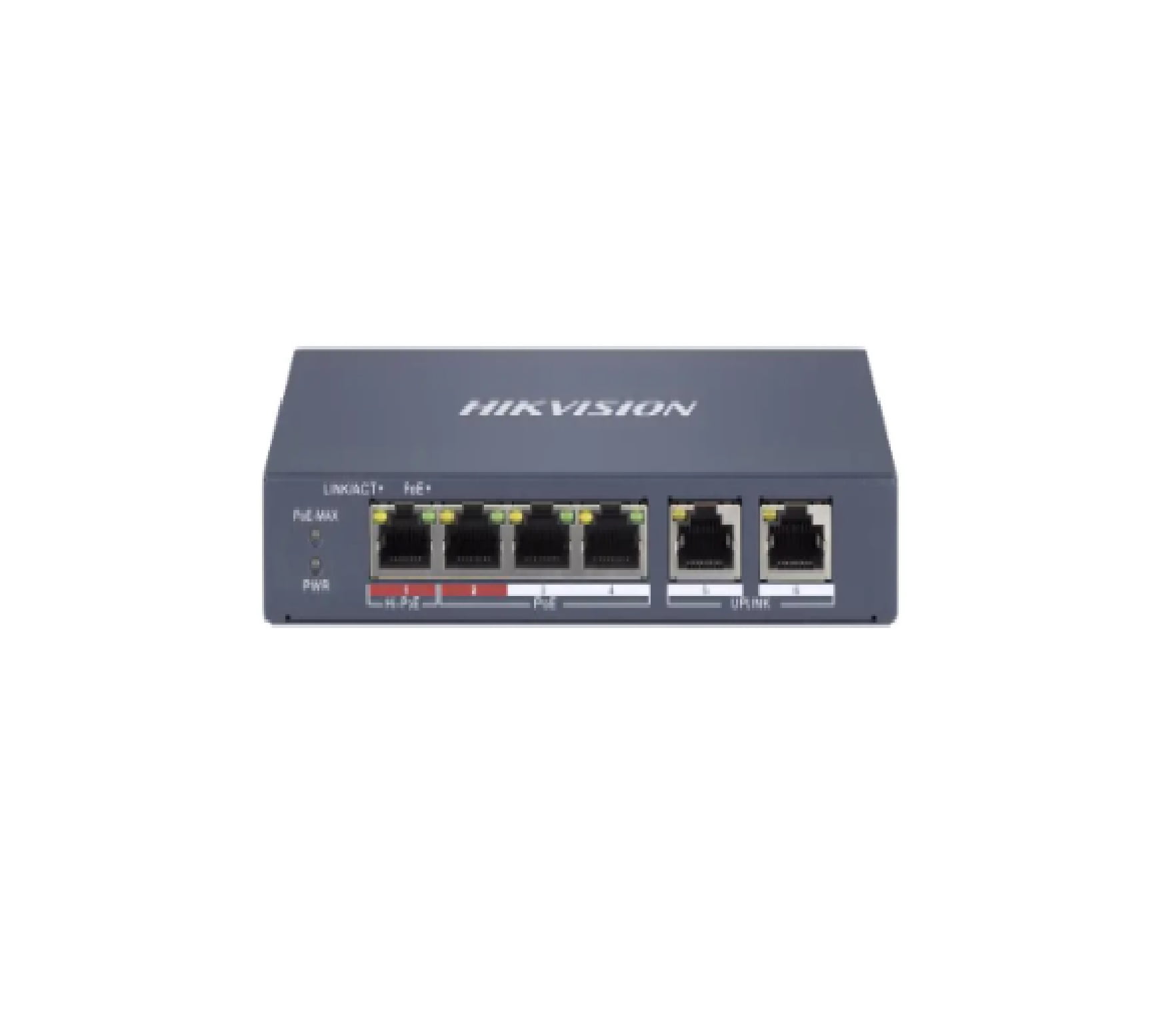

HIKVISION 4 PORT FAST ETHERNET SMART POE SWITCH (DS-3E1106HP-EI)

₱3,300.00

4 × 100 Mbps PoE RJ45 ports, 2 × 100 Mbps network RJ45 ports
IEEE 802.3at/af/bt standard for PoE ports
Network topology management, and alarm push
6 KV surge protection for PoE ports
Up to 300 m long-range transmission
AF/AT camera can reach up to 300 m in extend mode

SKU: HIKVISION 4 PORT FAST ETHERNET SMART POE SWITCH (DS-3E1106HP-EI) Categories: Hikvision, Hikvision POE Switches, Hikvision Switches Tag: HIKVISION 4 PORT FAST ETHERNET SMART POE SWITCH (DS-3E1106HP-EI)

Description

Network Parameters
Ports4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
MAC Address Table2 K
Switching Capacity1.2 Gbps
Packet Forwarding Rate0.90 Mpps
Internal Cache768 Kbits

PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port
Hi-PoE: Port 1
PoE: Ports 2 to 4
Max. Port Power60 W,30 W
PoE Power Budget60 W

Software Function
Long Range
Ports 1 to 4: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
VIP PortPorts 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
Port Isolation/
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
Link Aggregation/
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support SNMP v1/v2c for third-party management platform access.
Support port mirroring for fault locating.
QoS/
Storm Control
Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.
Supports port rate limiting based on broadcast, multicast, and unknown unicast packets.
DHCP Snooping
DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through
Off by default.
Loop Prevention/
VLAN/
Port Rate-Limiting/
IGMP Snooping/
ACL/
IPSG/

General
ShellMetal material, IP40
Net Weight0.245 kg (0.54 lb)
Gross Weight0.645 kg (1.42 lb)
Dimensions (W × H × D)145.0 mm × 25.6 mm × 68.45 mm (5.7″ × 1.0″ × 2.69″)
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply48 VDC, 1.35 A
Installation ModeDesk-Mounted,Wall-Mounted
Max. Power Consumption65 W
Power Consumption In Idle2 W
Surge Protection6 KV

Approval
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);
IC (ICES-003: Issue 6);
RCM (ASNZS CISPR 32: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);
CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
