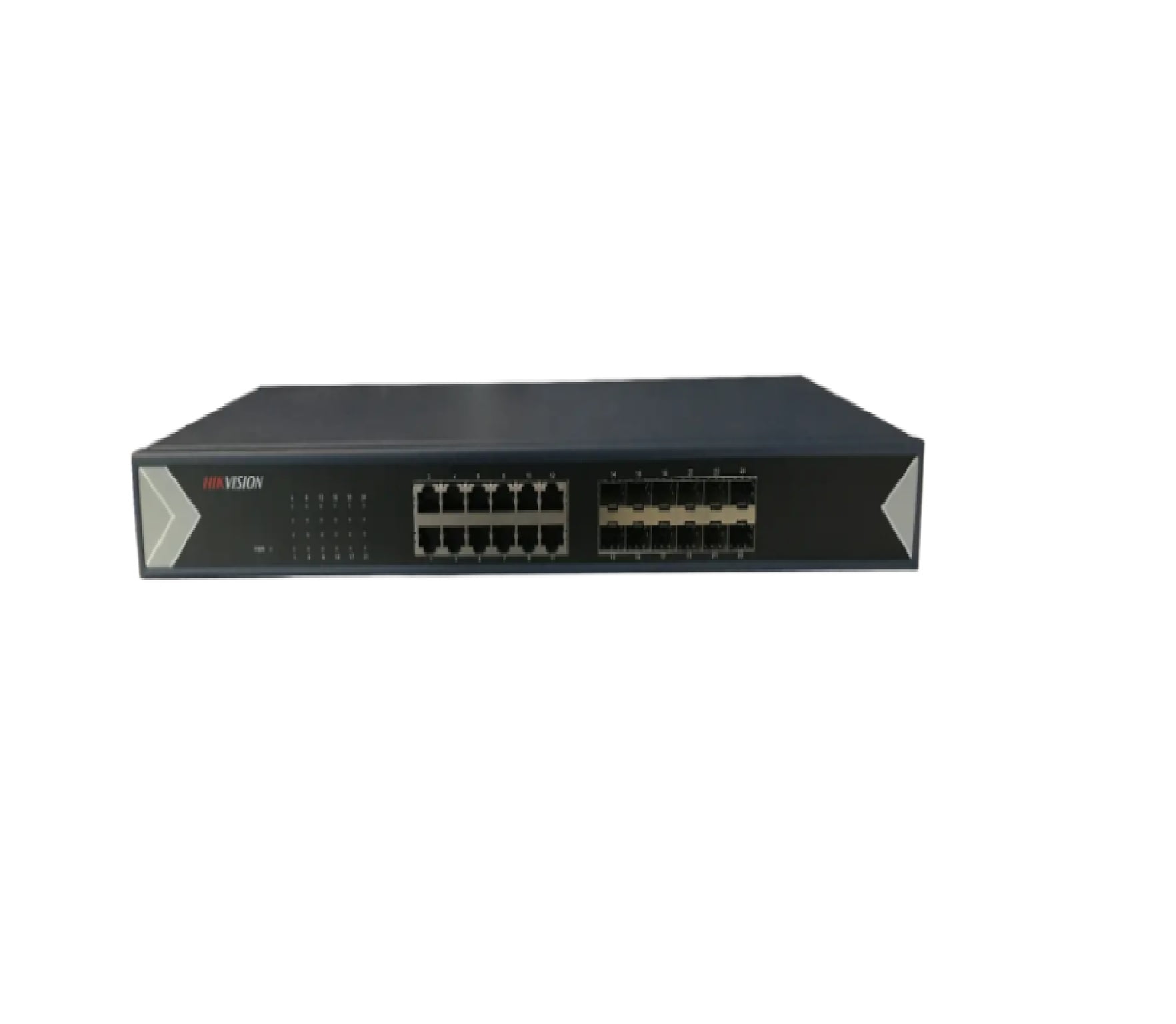

HIKVISION 24 PORT GIGABIT UNMANAGED SWITCH (DS-3E0524TF)

₱16,200.00

Layer 2 network switch designed for video data transmission
12 x 10/100/1000 Mbps ethernet ports and 12 x 10/100/1000 Mbps SFP ports
IEEE 802.3, IEEE802.3u and IEEE802.3x network standards available
Store-and-forward switching
Delay of data-exchange less than 5us
Safe and reliable using 4 KV high surge protection
Plug and play ensures simplicity and convenience.

SKU: HIKVISION 24 PORT GIGABIT UNMANAGED SWITCH (DS-3E0524TF) Categories: Hikvision, Hikvision Switches Tag: HIKVISION 24 PORT GIGABIT UNMANAGED SWITCH (DS-3E0524TF)

Description

Network Parameters
Ports12 × Gigabit RJ45 ports, and 12 × Gigabit fiber optical ports
Port TypeElectrical ports: RJ45, Full/half duplex, MDI/MDI-X self-adptive,Fiber optical port: SFP packaging
StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Forwarding ModeStore-and-forward switching
MAC Address Table16 K
Switching Capacity48 Gbps
Packet Forwarding Rate35.7 Mpps
Internal Cache12 Mbit

General
Dimensions (W × H × D)440.00 mm × 44.50 mm × 186.50 mm (17.30” × 1.80” × 7.30”)
ShellMetal material
Gross Weight3.30 kg (7.28 lb)
Net Weight2.60 kg (5.73 lb)
Operating Temperature–5 °C to 50 °C (23 °F to 122 °F)
Operating Humidity5% to 95% (no condensation)
Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
Storage Humidity5% to 95% (no condensation)
Power Supply220 VAC
Power Consumption≤ 30 W

Approval
EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 14)
SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2024)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2013)
