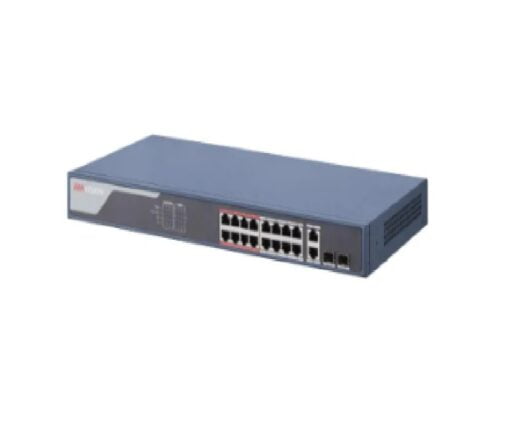

HIKVISION 16 PORT FAST ETHERNET SMART POE SWITCH (DS-3E1318P-SI)

₱16,200.00

16 × 100 Mbps PoE RJ45 port, 2 × gigabit combo.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.

SKU: HIKVISION 16 PORT FAST ETHERNET SMART POE SWITCH (DS-3E1318P-SI) Categories: Hikvision, Hikvision POE Switches, Hikvision Switches Tag: HIKVISION 16 PORT FAST ETHERNET SMART POE SWITCH (DS-3E1318P-SI)

Description

Network Parameters
Port TypeRJ45 port,full duplex,MDIMDI-X adaptive
Ports16 × 10/100 Mbps PoE port,2 × 1 Gigabit combo
StandardIEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
High Priority PortsPorts 1 to 8
Forwarding ModeStore-and-forward switching
Working ModeStandard mode (default),Extend mode
MAC Address Table16 K
Switching Capacity7.2 Gbps
Internal Cache4 Mbits
Packet Forwarding Rate5.3568 Mpps

PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE PortPoE: Ports 1 to 16
Max. Port Power30 W
PoE Power Budget230 W

Software Function
Device MaintenanceSupport remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
Port ConfigurationSupport port rate configuration, flow control, and ports enabling.
Long RangeUp to 300 m transmission
PoE Configuration
PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond.
PoE enabling: supported
Port MirroringSupported
Link AggregationStatic link aggregation supported for G1 and G2 ports
Port IsolationPorts in an isolation group cannot communicate with each other.
QoSWRR and SP scheduling and port priority
VLAN4094 VLANs
STPSTP and RSTP
SNMPSNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces

General
ShellMetal material
Net Weight2.59 kg (5.71 lb)
Gross Weight3.09 kg (6.81 lb)
Dimensions (W × H × D)440.00 mm × 44.00 mm × 220.80 mm (17.32” × 1.73” × 8.69”)
Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply100-240 VAC, 50/60 Hz, Max. 2.5 A
Max. Power Consumption250 W
Power Consumption In Idle5 W

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
