| Model Parameters | |
|---|---|

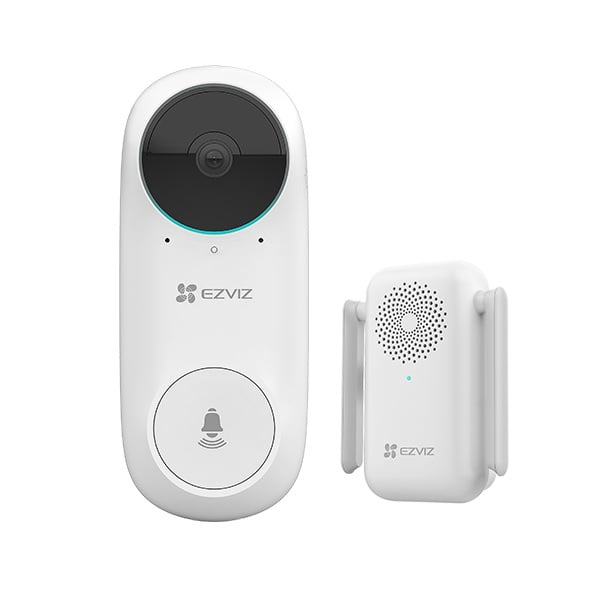

| Model | CS-DB2C-A0-1E3WPBR |
| Camera Parameters | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.2 mm@F2.4, Ultra FOV 160° Vertical |
| Day & Night | IR-cut filter with auto-switching |
| IR Range | Max. 6 m (20 ft) |
| Video Parameters | |
| Max. Resolution | 1536 x 1536 FHD |
| DNR | 2D/3D DNR |
| Video Compression | H.265/H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| PIR Sensor | |
| Sensing Angle | 100° |
| Sending Distance | Max. 5 m (16.4 ft) |
| Sensitivity | User adjustable (High, Medium and Low Sensitivity) |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Reset button | Yes |
| Network Parameters | |
| Intelligent Alarm | PIR Person Detection |
| Tamper Alarm | Sound and light anti-dismantling alarm (support alarm to mobile phone) |
| Video Intercom | Long-distance video two way talk |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b/g/n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54 Mbps, 11n: 150 Mbps |
| General | |
| Operation Conditions | -10°C to 45°C (14°F to 113°F), Humidity 95% or less (non-condensing) |
| Ingress Protection Grade | No IP Grade |
| Weight | 206 g (0.45 lb) |
| Size | 146 mm x 60 mm x 34 mm (5.75” x 2.36” x 1.34”) |
| Battery Capacity | 5200mAh rechargeable lithium battery |
| Power Supply | DC5V±10% |
| Power Consumption | Max.7.5W |
| Model / Chime | |
| Size | 100 x 54 x 37 mm (3.94” x 2.13” x 1.46”) |
| Power Supply | AC 100 ~ 240V |
| Wi-Fi Standard | IEEE802.11b/g/n |
| Audio Output | 65dB within 3 meters |
| Storage | Supports TF card up to 256 G |
| Weight | 120 g (0.26 lb) |
