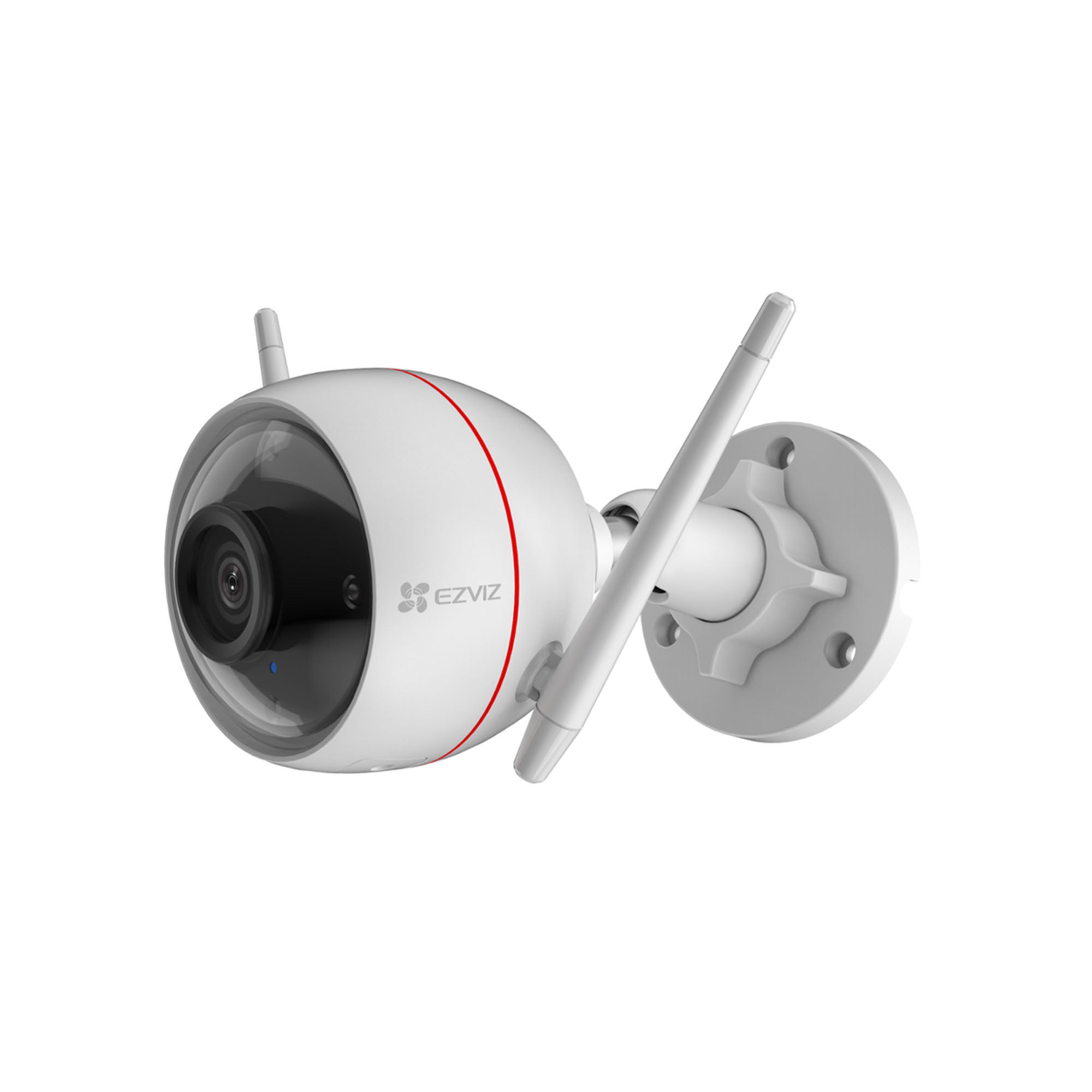

Model | CS-CV310-A0-1B2WFR |
Camera | |
Image Sensor | 1/2.7” Progressive Scan CMOS |
Minimum Illumination | 0.02 lux @(F2.0, AGC ON), 0 lux with IR |
Shutter Speed | Self-adaptive shutter |
Lens | 2.8mm@ F2.2, Horizontal angle: 103° Diagonal angle: 118° 4mm@ F2.0, Horizontal angle: 87° Diagonal angle: 104° 6mm@ F2.0, Horizontal angle: 54° Diagonal angle: 62° |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |
WDR | Digital WDR |
Compression | |
Video Compression | H.264 |
H.264 Type | Main profile |
Video Bit Rate | HD, Standard; Basic. Adaptive bit rate. |
Image | |
Max. Resolution | 1920×1080 |
BLC | Support |
Network | |
Storage | Support Micro SD card (Max. 128G) |
Smart Alarm | Intelligent motion detection |
Wi-Fi Pairing | AP paring |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
General Features | Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark |
Communication Interface | RJ45 10M/100M self-adaptive Ethernet port*1 |
Minimum Network Requirements | 2Mbps |
Wi-Fi | |
Standard | IEEE802.11 b/g/n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20MHz |
Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
General | |
Operating Conditions | -30°C ~ 60°C, Humidity 95% or less (non-condensing) |
Power Supply | DC 12V±10% |
Power Consumption | Max. 6W |
IP Grade | IP66 |
IR Range | Max. 30meters |
Product Dimensions | 150mm x 85mm x 72mm |
Packaging Dimensions | 252mm x 110mm x 92mm |
Weight | 326g |
