C1HC

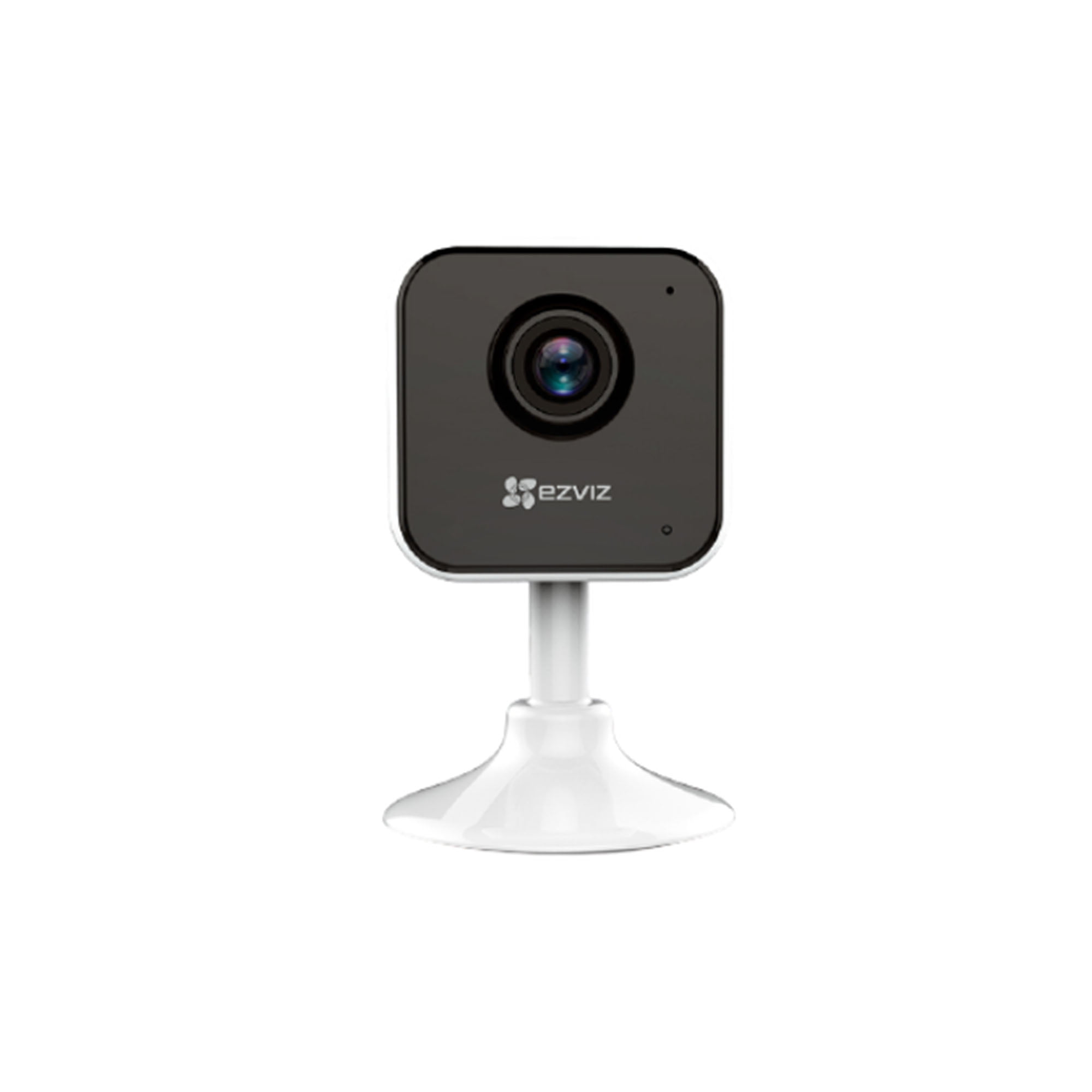

EZVIZ C1HC 1080P 2MP Cube Camera (CS-C1HC-D0-1D2WFR)

₱2,200.00

WiFi 2.4G
FHD 720/1080P Resolution (110°/130° Wide-Angle Lens)
Infrared Night Vision up to 12 m
MicroSD Card up to 256 GB
Two-Way Talk
Magnetic Base

Add to wishlist

SKU: EZVIZ C1HC 1080P 2MP Cube Camera (CS-C1HC-D0-1D2WFR) Category: EZVIZ Tag: EZVIZ C1HC 1080P 2MP Cube Camera (CS-C1HC-D0-1D2WFR)

Description

Model Parameters
Model	CS-C1HC-D0-1D1WFR / CS-C1HC-D0-1D2WFR
Camera
Image Sensor	720p : 1/4″ Progressive Scan CMOS 1080p : 1/2.9″ Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	720p: 2.8mm @ F2.4, view angle: 92° (horizontal), 110° (diagonal) 1080p: 2.8 mm @ F2.0, view angle: 106° (horizontal), 130° (diagonal)
Lens Mount	M12
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
Compression
Video Compression	H.264
H.264 Type	Main profile
Video Bit Rate	720p: HD; Standard; Basic. Adaptive bit rate. 1080p : Ultra-HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate	Self-adaptive
Max. Bitrate	2 Mbps
Max. Resolution	720p: 1280 x 720 1080p: 1920 x 1080
Frame Rate	720p: max. 25fps; 1080p: max. 20fps Self-adaptive during network transmission
Interface
Storage	MicroSD card slot (Max. 256 GB)
Power	Micro USB
Network
Smart Alarm	Motion detection
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ cloud proprietary protocol
Interface Protocol	EZVIZ cloud proprietary protocol
General Features	Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Wi-Fi
Standard	IEEE802.11b / g / n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20MHz
Security	64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
General
Power Supply	DC 5V±10%
Power Consumption	MAX. 4.0 W
IR Range	MAX. 12 meters (40 feet)
Product Dimensions	54 x 54 x 90.5 mm (2.13” x 2.13″ x 3.56″)
Packaging Dimensions	102 x 79 x 114.5 mm (4.02” x 3.11″x 4.51″)
Suttle Weight	88.5 g (0.19 lb)
Package Contents
Package Contents	C1HC Camera; 3-Meter (9.8-foot) USB Cable; Power Adapter; Two Foam Stickers; Metal Plate (3.5 mm / 0.14 ft. Hole Diameter); Quick Start Guide
Operating Environment
Temperature	-10°C to 45°C (14°F to 113°F)
Humidity	95% or less (non-condensing)
