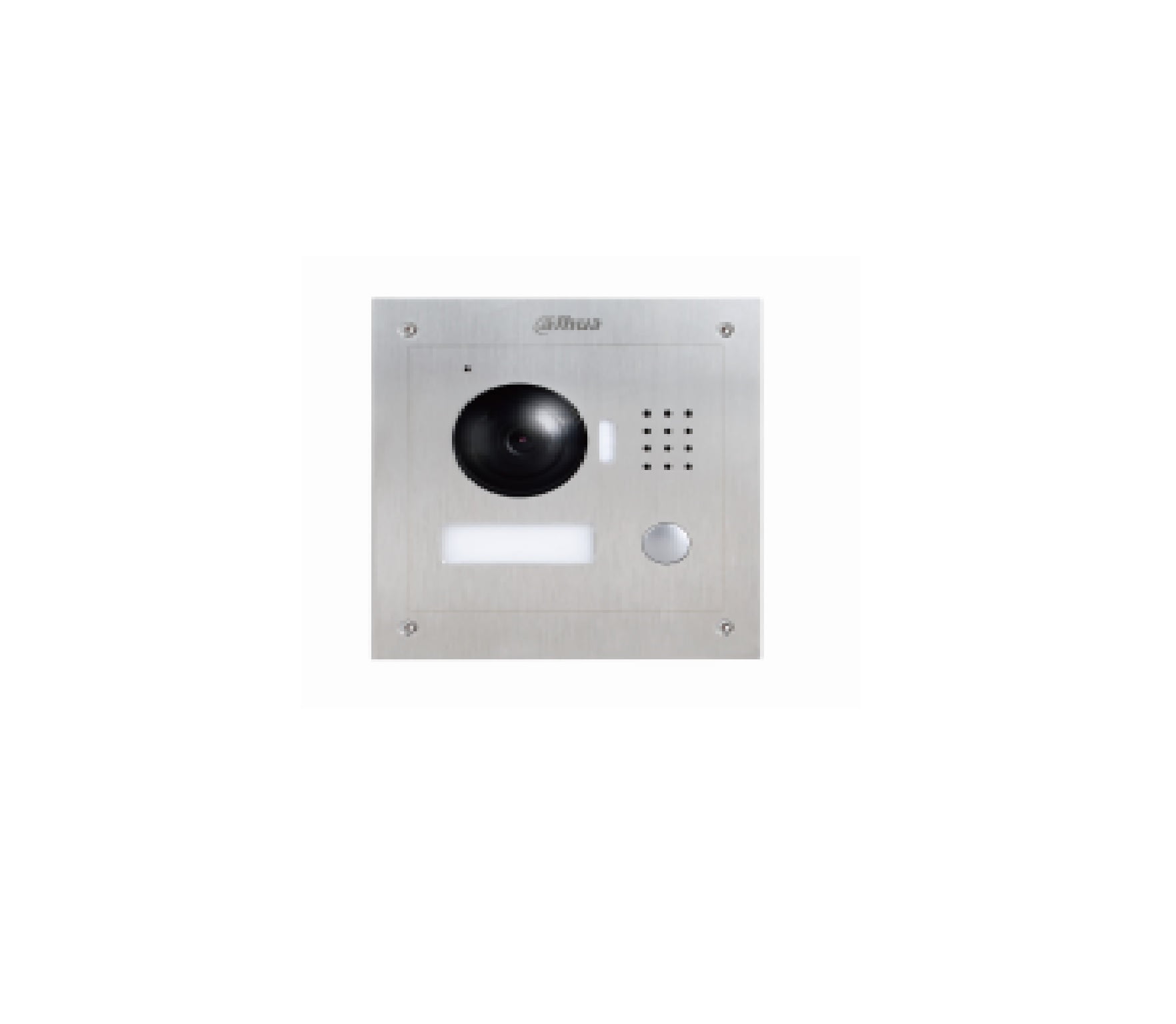

DAHUA IP VILLA OUTDOOR STATION (D-VT02000A)

Technical Specification
Model VTO2000A
System
Main Processor Embedded Micro Processor
Operation System Embedded LINUX OS
Video
Video Compression H.264
Image Sensor 1/3” 1.3MP CMOS
Lens 2.8mm
Angle of View D:120° H:90°
Day/Night Color Image
Audio
Audio Compression G.711
Audio Input Omnidirectional Mic
Audio Output Built-in Speaker
Bidirectional Talk Support Dual-way Bidirectional talk
Operation Mode
Keypad Single Mechanical Button
Interface
Door Control 2(1 relay out for main lock, 1 extended by access
control module)
Alarm In 2(1ch unlock button, 1ch feedback)
RS485 1
Network
Ethernet 10M/100Mbps Self-adaptive
Network Protocol TCP/IP

Ethernet 10M/100Mbps Self-adaptive
Network Protocol TCP/IP
General
Ingress Protection IP54, IK07
Tamper Switch 1
Installation Surface & Flush
Material Stainless Steel
Power DC 12V
Power Consumption Standby ≤1W, Work ≤10W
Working Temperature -40°C~+60°C
Relative Humidity 10%~90%RH
Dimensions 129.9mm×32.2mm×140mm
Weight 0.8Kg
