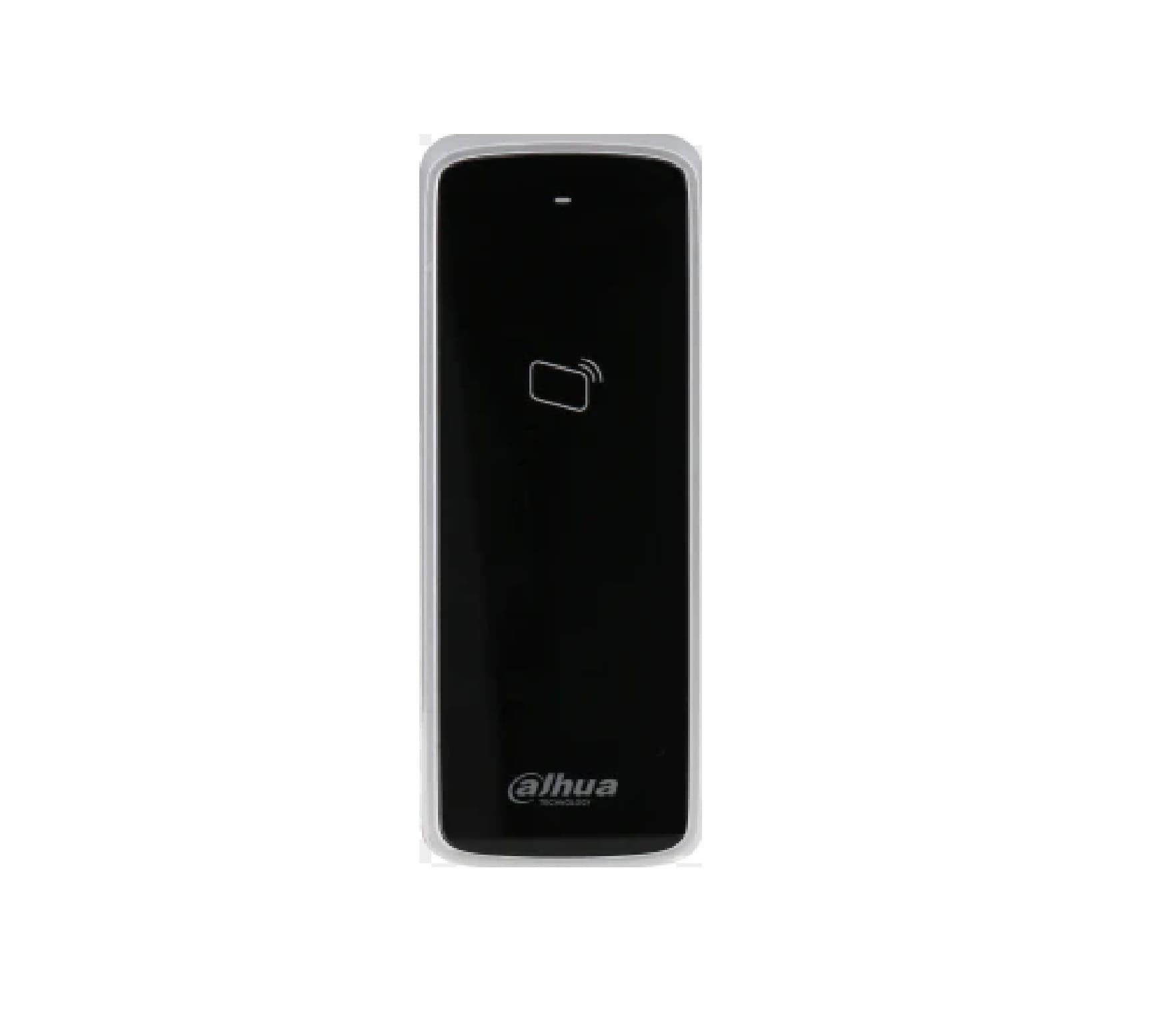

DAHUA ACCESS READER (DHI-ASR2200A)

Technical Specification
Basic
Product Type Slim Card Reader
Buzzer Yes
Casing Tempered glass/PC
Function
Unlock Mode Card swiping
Card Type ID card
Performance
Response Time 0.1 s
Card Reading Distance 0 cm–5 cm (0″–1.97″)
Port
RS-485 1 channel
Wiegand 1 output channel
Alarm
Tamper Alarm Yes
General
RS-485 1 channel

Power Supply 12V 0.5A DC
Protection IP66 (silicon sealant is needed, see the manual)
Power Consumption Standby ≤ 0.9W, working ≤ 1.7W
Product Dimensions 135 mm × 40 mm × 15 mm (5.31″ × 1.57″ × 0.59″)
(L × W× H)
Packaging Dimensions
195 mm × 75 mm × 52 mm (7.68″ × 2.95 × 2.05″)
(L × W× H, 1 in inner carton)
415 mm × 400 mm × 230 mm (16.34″ × 15.75″ × 9.06″)
(L × W × H, carton)
Operating Temperature –30°C to +70°C (–22°F to 158°F)
Operating Humidity 5%RH–95% (non-condensing)
Operating Environment Indoor; outdoor
Gross Weight 0.16 kg (0.35 lb)
Installation Surface mount
Certifications CE; FCC
