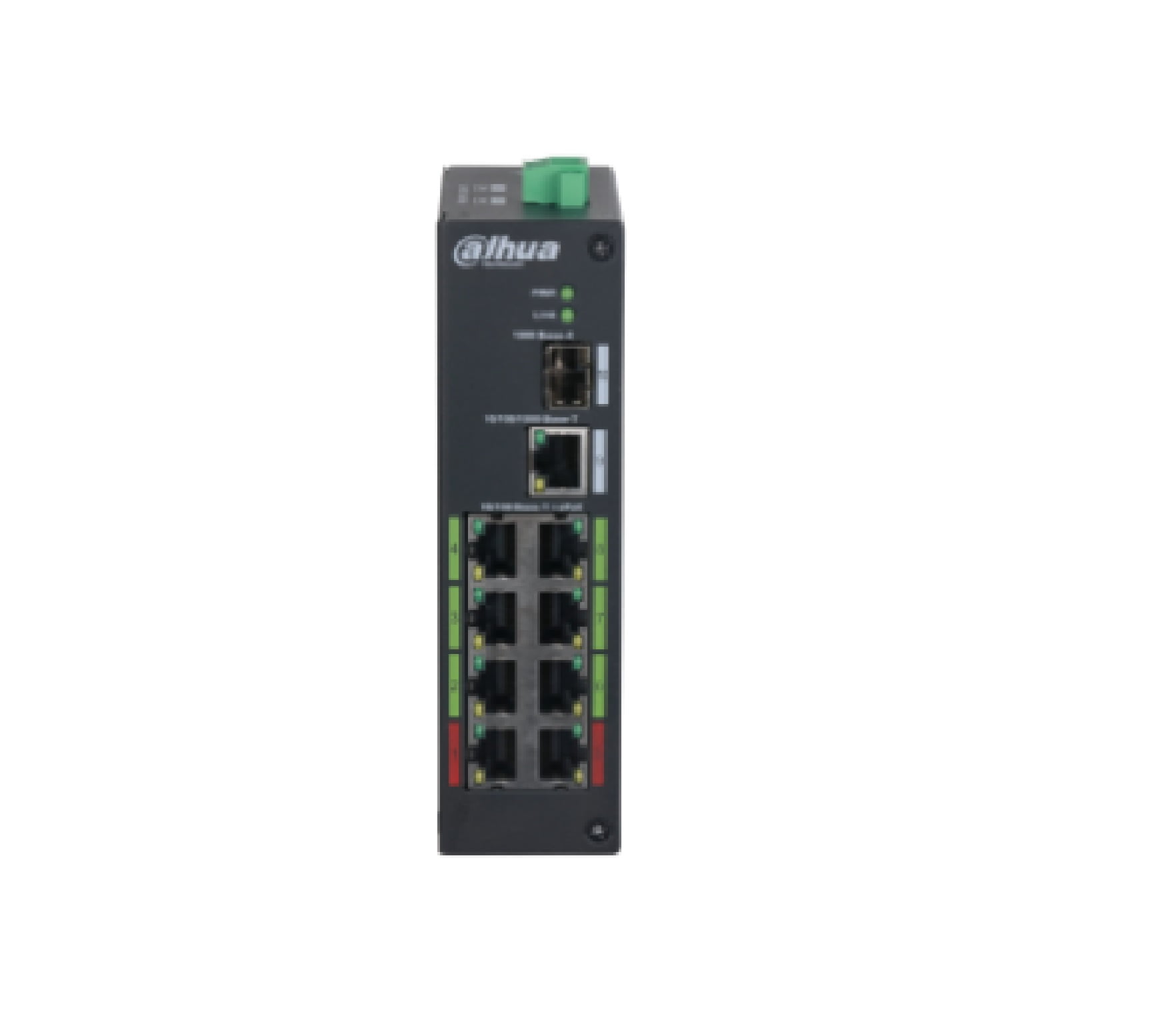

DAHUA 10-PORT UNMANAGED SWITCH WITH 8-PORT EPOE (DH-LR2110-8ET-120)

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

8

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100 Mbps
Port 9: 1 × RJ-45 10/100/1000 Mbps
Port 10: 1 × SFP 1000 Mbps

Power Supply

External power supply: 54 VDC, 2.22 A

Operating Temperature

–30 °C to +65 °C (+22 °F to +149 °F)

Operating Humidity

10%–90% (RH), non-condensing

Power Consumption

Idling: 3.2 W
Full load: 120 W

Performance

Layer

Layer 2

Management Type

No

Smart Managed Switch

No

Switching Capacity

8.8 Gbps

Packet Forwarding Rate

5.36 Mpps

Packet Buffer Size

2.75 Mbit

Jumbo Frame

9216 Byte

MAC Table Size

8K Byte

Communication Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab/z,IEEE802.3X

Feature

PoE Protocol

IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power

Port 1,5 ≤90 W
Port 2,3,4,6,7,8 ≤30 W
Total ≤120 W

PoE Pin Assignment

1,2,4,5 (V+),3,6,7,8 (V-)

ePoE

Yes

Long Distance PoE Transmission

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.6 kg (1.32 lb)

Gross Weight

1.9 kg (4.18 lb)

Product Dimensions

150 mm × 100 mm × 42 mm
(5.91″ × 3.94″ × 1.65″) (L × W × H)

Packaging Dimensions

265 mm × 238 mm × 76 mm
(10.43″ × 9.37″ × 1.65″) (L × W × H)

Casing Material

Iron

Installation

Rack mount; DIN guide rail mount

Certifications

CE; FCC

Transmission Performance:

Cable Length (m)

Communication Bandwidth (Mbps)

PoE Max Load

Capac-ity (W)

Hi-PoE Max Load Capacity (W)

IEEE802.3bt Max Load Capacity (W)

Network Operating Mode

100

100

25.5

53

71.3

IEEE/E100

200

100

25.5

47

52

E100

300

100

25.5

32

40

E100

400

10

23

26

30

E10

500

10

20

20

25

E10

800

10

13

13

13

E10

ePoE switch supply voltage 54 V.

CAT6, max. DC resistance < 10 Ω/100 m.

Cable Length (m)

Communication Bandwidth (Mbps)

PoE Max. Load Capacity (W)

Hi-PoE Max. Load Capacity (W)

Network Operating Mode

100

100

25.5

52

IEEE/E100

200

100

25.5

48

E100

300

100

22

28

E100

400

100

15

20

E100

500

10

12

12

E10

800

10

8

8

E10

1000

10

6

6

E10

ePoE switch supply voltage 54 V.

RG-59, max. DC resistance < 5 Ω/100 m.

IEEE802.3bt standard is not applicable to RG59 cable solution.

LED Indicator

Working Mode

LED Indicator

IEEE mode

Normally on

E100

On for 3 seconds, off for 1 second

E10

On for 1 second, off for 1 second
