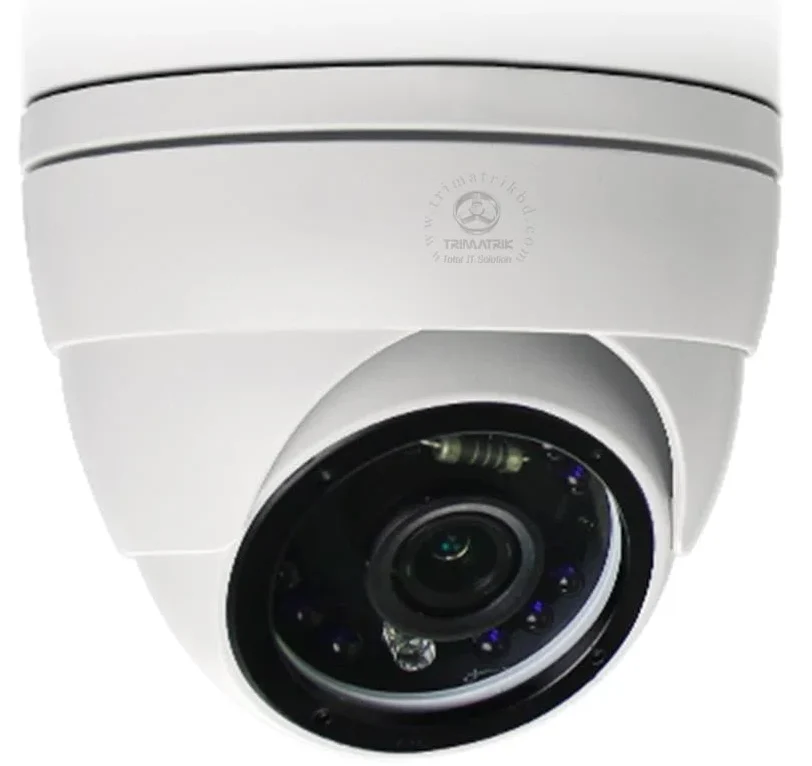

AVTECH 2MP IR Dome IP Camera (AVM2220)

Network
LAN Port YES
LAN Speed 10/100 Based-T Ethernet
Supported Protocols DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP,
RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP
ONVIF Compatible YES (Profile S)
Number of Online Users 10
Security
(1) Multiple user access levels with password
(2) IP address filtering
(3) Digest authentication
Remote Access
(1) Internet Explorer on Windows operating system
(2) CMS Lite, 24CH CMS software for Windows operating system
(3) EagleEyes on iOS & Android mobile devices
▓ Video
Network Compression H.264 (Main Profile) / MJPEG
Video Resolution 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
Frame Rate 30/25fps
Multiple Video Streaming 4 (H.264 /MJPEG)
▓ General
Image Sensor 1/2.7″ CMOS image sensor
Min Illumination 0.1 Lux / F1.5, 0 Lux (IR LED ON)
Shutter Speed 1/2 to 1/10,000 sec
S/N Ratio More than 48dB (AGC off)
Lens f3.8mm / F1.5
Viewing Angle 77° (Horizontal) / 45° (Vertical) / 88° (Diagonal)
IR LED 12 Units
IR Effective Distance** Up to 10 meters
IR Shift YES
White Balance ATW
AGC Auto
IRIS Mode AES
Sharpness YES
DWDR YES
POE YES (IEEE 802.3af)
External Alarm I/O YES (1 input / 1 output)
Weather-proof IP66
Operating Temperature -25℃ ~ 50℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) 12V / 1A
Current Consumption (±10%) 235mA (IR OFF) / 357.5mA (IR ON)
Power Consumption (±10%) 5.375W (PoE & PoN) ; 4.29W (DC Adapter)
Net Weight (kg) 0.37
