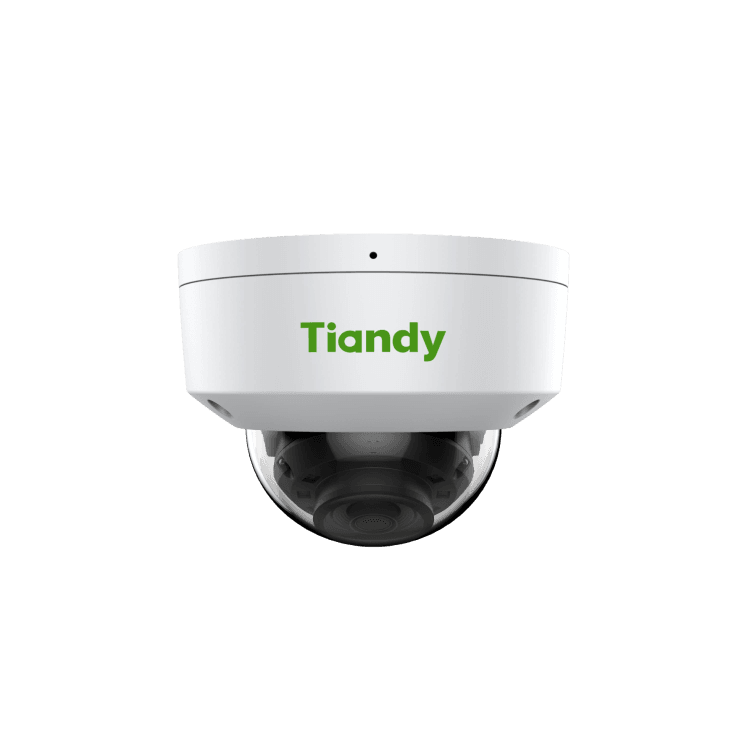

Tiandy TC-C34KN 4MP Fixed IR Dome Camera

₱3,020.00

Plastic Housing
Up to 2688×1520@25fps
S+265/H.265/H.264
Min. illumination Color: 0.02Lux@F1.6
Smart IR, IR Range: 30m
TWDR
Support Tripwire and perimeter
Built-in Mic, Reset Button
Operating Conditions -30°~60°, 0~95% RH
POE, DC12V
IP66

Categ

Add to wishlist

Categories: Tiandy, Tiandy Dome, Tiandy IP Camera Tag: Tiandy TC-C34KN 4MP Fixed IR Dome Camera

Description

Specifications
Model	TC-C34KN Spec:I3/E/Y/C/2.8mm/V4.3
Camera
Image Sensor	1/2.9″ CMOS
Min. Illumination	Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time	1s-1/100000s
Day&Night	IR-cut filter with auto switch (ICR)
WDR	120dB
S/N	>40dB
Angle Adjustment	0-350°;0-70°;0-350°
Lens
Lens Type	Fixed
Focal Length	2.8mm
Lens Mount	M12
Aperture Range	F1.6,Fixed
Field of View	113.0°(H);98.5°(V);55.3°(D)
DORI Distance	Detect: 56mObserve:22.2m Recognize:11.2m Identify:5.6m
Illuminator
IR LEDs	8
IR Distance	30m
Wavelength	850nm
White LEDs	N/A
Whitelight Distance	N/A
Compression Standard
Video Compression	S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate	32k-6Mbps
Audio Compression	G.711A/G.711U/ADPCM_D
Audio Sampling Rate	8kHz/32kHz/48kHz
Max. Resolution	2688×1520@25fps
Main Stream	PAL:25 fps(2688×1520,2560×1440,2304×1296,1920×1080,1280×720) NTSC:24(2688×1520,2560×1440)30fps(2304×1296,1920×1080,1280×720)
Sub Stream	PAL:25fps(704×576,704×288,352×288,640х360) NTSC:30fps(704×480,704×240,352×240,640×360)
Third Stream	N/A
BLC	Yes
HLC	Yes
AGC	Yes
3D DNR	Yes
White Balance	Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
ROI	8 regions
Coridor Mode	N/A
EIS	N/A
OSD	1region;1616/3232/48*48
Picture Overlay	N/A
Privacy Mask	4 regions
Defog	Yes
Alarm Trigger	Motion Detection; Mask Alarm; IP Address Conflict
Linkage Method	trigger capture
Video Analytics	Tripwire; Perimeter
Rules of behavior analyse in 1 scene	2
Early Warning(EW)	N/A
Auto-Tracking	N/A
Face Mode	N/A
Face Detection Performance	N/A
Network
ANR	ANR
Protocols	HTTP;HTTPS;TCP/IP; UDP;UPnP;ICMP;DHCP;DNS;DDNS;Easy DDNS;NTP; QoS;Pv4; SSH;Unicast;RTSP;FTP
System Compatibility	P2P(Mutually exclusive with Profile G);onvif Profile S/T;CGI;MIL STONE
Remote Connection	≤2
Client	Easy7 Smart Client
Moblie Client	EasyLive Plus
Web	E10+;Firefox52+;Edge89+;Safari11-;Chrome57+
Interface
Communication Interface	1 RJ45 10M/ 100M self adaptive Ethernet port
Audio 1/0	N/A
Alarm 1/0	N/A
Built-In Mic	Yes
Built-In Speaker	N/A
Reset Button	Yes(built-in)
On-board storage	N/A
Additional interfaces	N/A
General
Web Client Language	18 languagesSimple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai /French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese
Operating Temperature	-30°C-60°C
Operating Humidity	0-95%
Storage Temperature	-30°C-60°C
Storage Humidity	0-95%(non-condensing)
Power Supply	DC12V÷25%,MAX 5W;POE 802.3af,MAX 5.5W
Protection	Surge protection 2000V;Lightning proof 6000V;IP66
Boundary Dimensions	120(L)120(W)96(H)mm
Package Dimensions	140(L)140(W)120(H)mm
GrossWeight	0.49kg
NetWeight	0.35kg
