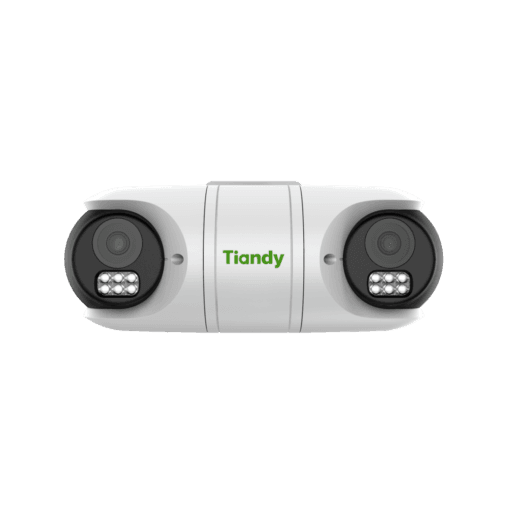

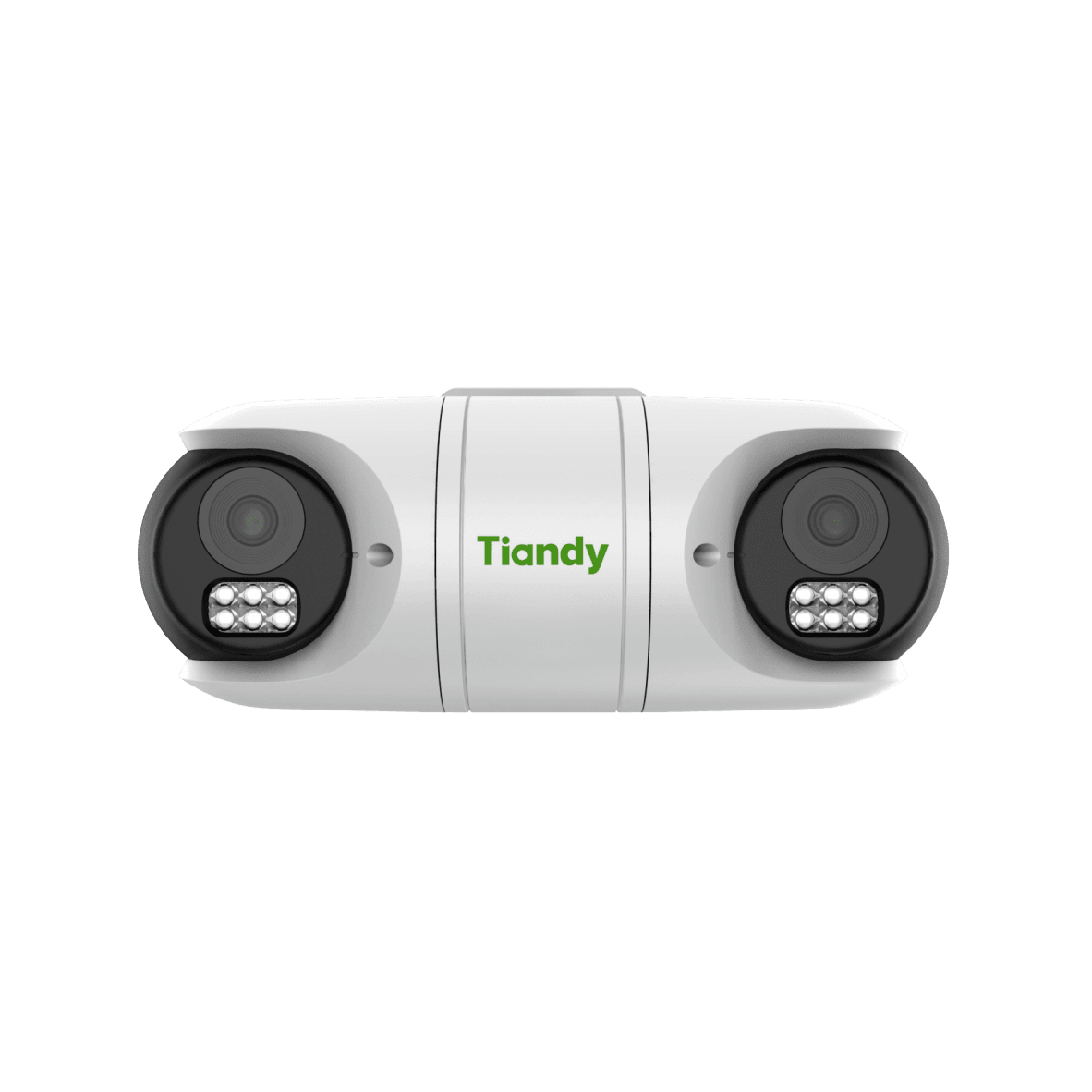

Tiandy TC-C32RN Dual 2MP Fixed IR Bullet Camera
₱3,660.00
KEY FEATURES
- Plastic housing
- S+265/H.265/H.264B/H.264M/H.264H
- Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
- IR Range 50m
- Built-in Mic
- Support Smart surveillance
- Operating Conditions -30℃~60℃(No turning on the light), Humidity 95% or less (no condensation)
- DC12V±25%,MAX 7.5W, POE 802.3af,MAX 8.5W
- IP67
| Specifications | |
|---|---|
| Model | Spec:I5/E/Y/QX/2.8mm/V4.2 |
| Camera | |
| Image Sensor | 1/3″ CMOS |
| Min. Illumination | Color: 0.02Lux@ (F1.6, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s~1/ 100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| WDR | DWDR |
| S/N | >36dB |
| Angle Adjustment | 0~350°(P); 0~90°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Field of View | 92.8°(H); 52.2°(V); 106.5°(D) |
| DORI Distance | Detect:42.26m Observe:16.77m Recognize:8.45m Identify:4.23m |
| Illuminator | |
| IR LEDs | 6 |
| IR Distance | 50m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
| Image | |
| Max. Resolution | 1920×1080@30fps |
| Main Stream | PAL: 25fps (1920×1080, 1280×720, 640×480, 704×576)NTSC: 30fps (1920×1080, 1280×720, 640×480, 704×480) |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288)NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/ Semi-auto/ Manual/ Sunny/ Natural light/ Warm light/ Sodium lamp/ Incandescent lamp/ Locked white balance |
| OSD | Overlay of additional characters in one area, 1 line, up to 48 characters or 16 Chinese characters; 16*16/ 32*32/ 48*48 |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection; IP Address Conflict |
| Linkage Method | trigger capture |
| Network | |
| Protocols | HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast; RTSP; FTP |
| System Compatibility | P2P (Mutually exclusive with Profile G); ONVIF Profile S/T; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 Smart Client |
| Mobile Client | EasyLive Plus |
| Interface | |
| CommunicationInterface | 1*RJ-45,10/100 Mbps self-adaptive Ethernet port |
| General | |
| Web Client Language | 18 languages Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/ Turkish/ Russian/ Thai/ French/ Polish/ Dutch/ Hebrew/ Arabic/ Vietnamese/ German/ Ukrainian/ Portuguese |
| Operating Temperature | -30℃~60℃ (No turning on the light) |
| Operating Humidity | Humidity 95% or less (no condensation) |
| Storage Temperature | -30℃~60℃ |
| Storage Humidity | Humidity 95% or less (no condensation) |
| Power Supply | DC12V ±25%, MAX 7.5W; POE 802.3af, MAX 8.5W |
| Protection | Surge 4000V; ESD 6000V; IP67 |
| Boundary Dimensions | 260(L) 133(W) 140(H)mm |
| Package Dimensions | 315(L) 145(W) 140(H)mm |
| Gross Weight | 0.87kg |
