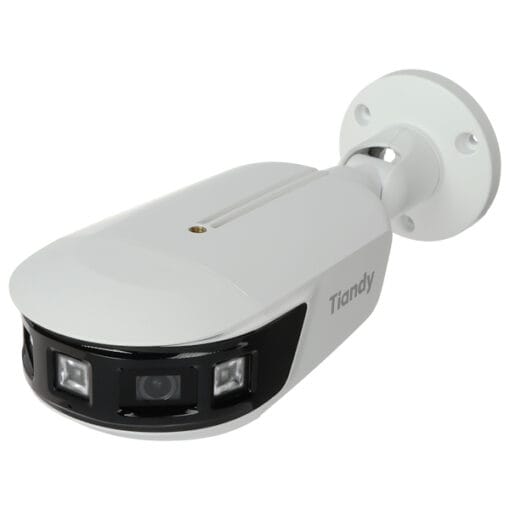

TIANDY 8MP Fixed Panoramic Camera TC-C382V Spec:W/E/Y/S/H/2.8mm

₱10,450.00

Metal+Plastic Housing.
Up to 4640×1728@25fps.
1/2.7″ CMOS.
S+265/H.265/H.264.
Min. illumination Color: 0.0001Lux@F1.0.
Warm Light.
Built-in Mic.
Built-in Speaker.
Operating Conditions -40°~65°, 0~95% RH.
Support human/vehicle classification.
Horizontal FOV 180°±10°.
POE.

Add to wishlist

Category: Tiandy Tag: TIANDY 8MP Fixed Panoramic Camera TC-C382V Spec:W/E/Y/S/H/2.8mm

Description

SPECIFICATION

Standard:	IP
Resolution:	4640 x 1728 – 8 Mpx
Sensor:	2 x 1/2.7 ” Progressive Scan CMOS
Lens:	2 x 2.8 mm
View angle:	180 ° (manufacturer data) 180 ° (our tests result)
Range of IR illumination:
White light LED illuminator range:	15 m
Min. illumination:	0.0001 Lux / F1.0 (color)
Memory card slot:	Micro SD card support up to 512GB
RS-485 interface:
Image compression method:	S+265 / H.265 / H.264
Alarm inputs / outputs:	1 / 1
Audio:	Microphone built-in, Audio input Audio output Bi-directional audio streaming support Speaker built-in Audio transmission via network Compliance with the AAC standard
Main stream frame rate:	25 fps @ 8 Mpx
Interface:	10/100 Base-TX (RJ-45)
WEB Server:	Built-in
Max. number of on-line users:	7
ONVIF:
Mobile phones support:	Port no.: 3000 or access by a cloud (P2P) Android: EasyLive Plus free application iOS (iPhone): EasyLive Plus free application
Access from PC:	Port no.: 3000 or access by a cloud (P2P) – PC: Easy7 Smart Client Express free application
Default IP address:	DHCP or 192.168.1.2
Default admin user / password:	admin / – The administrator password should be set at the first start
Web browser access ports:	80, 443, 3000, 3001, 3002, 23002
Mobile client access ports:	3000, 3001
PC client access ports:	3000, 3001
ONVIF port:	80
Intelligent Image Analysis:	crossing the line (tripwire) intrusion classification of people and vehicles
Main features:	WDR – 120 dB – Wide Dynamic Range 3D-DNR – Digital Noise Reduction F-DNR (Defog) – Reduction of image noise caused by precipitation BLC/HLC – Back Light / High Light Compensation ANR – Automatic Network Replenishment allows to save image to the card when the network connection with DVR is break (network failure) and next synchronize its NAS – Network Attached Storage support – allows to connect memory resources directly to the computer network ROI – improve the quality of selected parts of image Day/night mode Possibility to change the resolution, quality and bit rate
Power supply:	PoE (802.3at), 12 V DC / 920 mA
Power consumption:	≤ 12 W @ PoE ≤ 11 W @ 12 V DC
Housing:	Compact – Metal
Color:	White
“Index of Protection”:	IP67
Mechanical protection class:
Operation temp:	-35 °C … 65 °C
Weight:	0.84 kg
Dimensions:	294 x 116 x 72 mm
Supported languages:	Polish, English, Albanian, Arabic, French, Hebrew, Spanish, Dutch, Korean, German, Portuguese, Thai, Ukrainian, Vietnamese, Italian
Manufacturer / Brand:	TIANDY
Guarantee:	3 years
