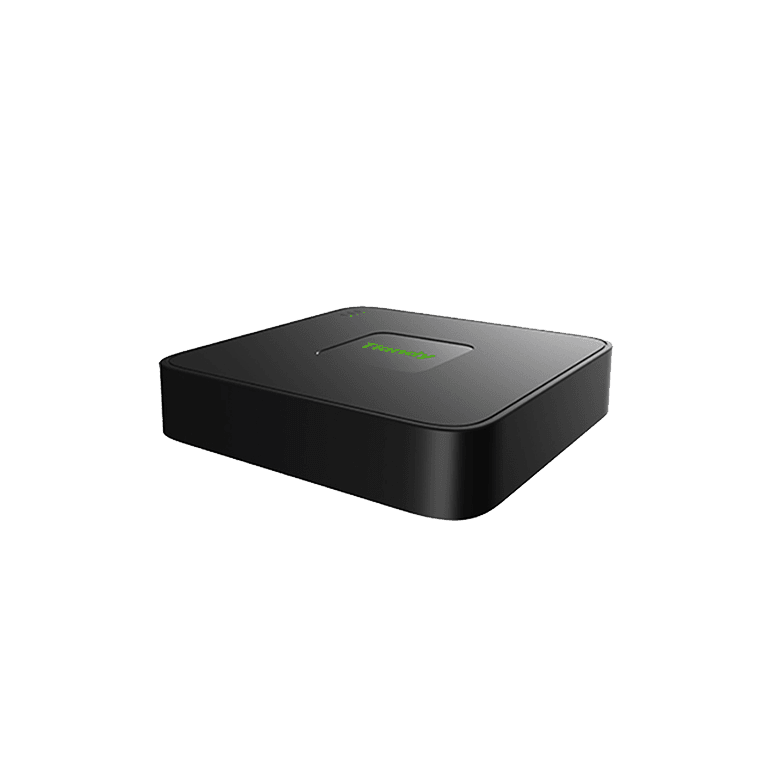

TC-R3110 Spec:I/B/K/V3.1 H.265 1HDD 10ch NVR (Non-PoE)

₱5,430.00

HD Input: S+265/H.265/H.264 video formats
HD Output: HDMI Video output at up to 4K resolution
HD Storage: 1 SATA interface, up to 8TB for 1 HDD
Channel: 10 Channel

Add to wishlist

Categories: Tiandy, Tiandy 10CH NVR, Tiandy Network Video Recorders Tag: TC-R3110 Spec:I/B/K/V3.1 H.265 1HDD 10ch NVR (Non-PoE)

Description

Specifications
Model	TC-R3110 Spec: I/B/L/(Eu)/V1.1
Input
Video Input	10-ch
Max Resolution	6MP
Two-way Audio Input	N/A
Bandwidth	Income 60Mbps; Outgoing 40Mbps
Output
HDMI/ VGA Output	HDMI 1-ch, 3840×2160, 1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800
Screen Split	1/3/4/5/6/7/8/9/10
Audio Output	N/A
Decoding
Decoding Format	S+265/H.265/H.264
Recording Resolution	6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability	1×6MP, 1×5MP, 1×4MP, 1×3MP, 4×1080P, 5×720P, 5×4CIF
Synchronous Playback	1×6MP, 1×5MP, 1×4MP, 1×3MP, 3×1080P, 4×720P
Records Encryption	N/A
Hard Disk
SATA	1 SATA interface for 1 HDDs
Capacity	Up to 8TB for each HDD
eSATA Interface	N/A
Aarray Type	N/A
External Interface
Network Interface	1×RJ45 self-adaptive 10/100 Mbps network interface
USB Interface	2×USB 2.0
Serial Interface	N/A
Alarm In/Out	N/A
Feature
VCA	Tripwire, Double Tripwire, Perimeter, Object Abandon, Object lost, Loitering, Motion Detection, Early Warning, Crowd, On Duty Detection, Video Abnormal, Audio Abnormal
Network
Protocol	HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, DHCP, DNS, DDNS, EasyDDNS, NTP, SMTP, SSL, QoS, IPv4, IPv6, IP Filter, Telnet, SSH, RTSP, RTP, RTCP, ARP
System Compatibility	ONVIF (PROFILE S/T), SDK, P2P
General
Web Version	Web6
Language	English, Turkish
Operating Conditions	-10～55℃, 10%~90% RH
Power Supply	DC12V 1.5A
Consumption (without HDD)	≤10W (Without HDD)
Case Size	1U
Dimensions	42.9×200×199.5mm, (1.69×7.87×7.85 inch)
Weight (without HDD)	0.4Kg (0.88lb)
