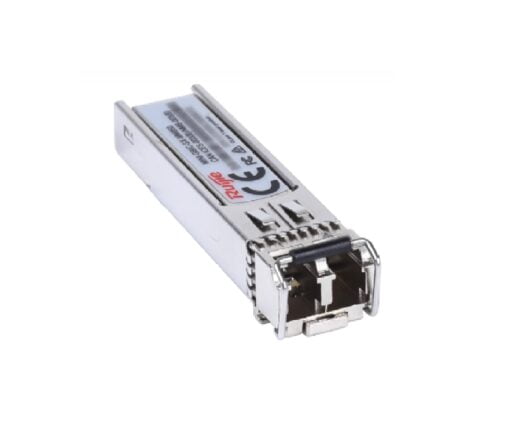

RUIJIE 1000BASE-SX SFP 850-NM 550-M DDM DUPLEX LC MMF OPTICAL TRANSCEIVER MODULE (MINI-GBIC-SX-MM850)
₱2,430.00
The MINI-GBIC-SX-MM850 is aligned to IEEE 1000BASE-SR optical specifications and supports a link length of up to 550 meters over a multimode fiber (MMF) with an LC connector. It adopts the SFP form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ Multisource Agreement (MSA), and RoHS standards.
| Model | MINI-GBIC-SX-MM850 | MINI-GBIC-LX-SM1310 | MINI-GBIC-LH40-SM1310 | MINI-GBIC-ZX80-SM1550 | MINI-GBIC-GT |
| Data rate | 1.25 Gbps | 1000base-X to 1000base-T | |||
| Form factor | SFP | ||||
| Connector type | Duplex LC | Duplex LC | Duplex LC | Duplex LC | RJ45 |
| Cable type | MMF | SMF | SMF | SMF | Cat 5e/6/6a |
| Fiber end face finish type | Ultra Physical Contact (UPC) | N/A | |||
| Transmitter type | VCSEL | DFB | DFB | DFB | N/A |
| Receiver type | PIN | N/A | |||
| Reach | 550 m (1,804.46 ft.) | 10 km (32,808.40 ft.) | 40 km (131,233.60 ft.) | 80 km (262,467.19 ft.) | 100 m (328.08 ft.) |
| Bit error ratio (BER) | 1.00E-12 | N/A | |||
| Data diagnosis-capable (DDM/DOM) | Yes | No | |||
| Power consumption | ≤ 1.5 W | ||||
| Transmitter Optical Parameters | |||||
| Wavelength (nm) | 850 | 1310 | 1310 | 1550 | N/A |
| Max. transmit power (AVG) | 0 dBm | –3 dBm | 0 dBm | 5 dBm | N/A |
| Min. transmit power (AVG) | –9.5 dBm | –11 dBm | –5 dBm | 0 dBm | N/A |
| Min. extinction ratio | ≥ 9 dB | N/A | |||
| Receiver Optical Parameters | |||||
| Receive sensitivity (OMA) | < –17 dBm | < –19 dBm | < –23 dBm | < –27 dBm | N/A |
| Overload optical power (AVG) | 0 dBm | –3 dBm | –3 dBm | –3 dBm | N/A |
| Environment and Reliability | |||||
| Operating temperature | 0°C to 70°C (32°F to 158°F) | ||||
| Operating humidity | 10% RH to 90% RH | ||||
| Storage temperature | –40°C to +85°C (–40°F to +185°F) | ||||
| Storage humidity | 10% RH to 90% RH | ||||
| Dimensions and Weight | |||||
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.) | 68 mm x 14 mm x 8.5 mm (2.68 in. x 0.55 in. x 0.33 in.) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | ||
| Weight | 35 g (0.08 lbs.) | ||||
Single-Fiber SFP Series Module (BIDI) Specifications
| Model | GE-SFP-LH40-SM1310-BIDI | GE-SFP-LH40-SM1550-BIDI | GE-SFP-LX20-SM1310-BIDI | GE-SFP-LX20-SM1550-BIDI | GE-SFP-LX03-SM1310-BIDI-I | GE-SFP-LX03-SM1550-BIDI-I | |
| Data rate | 1.25 Gbps | ||||||
| Form factor | SFP | ||||||
| Connector type | BIDI LC | ||||||
| Cable type | SMF | ||||||
| Fiber end face finish type | Ultra Physical Contact (UPC) | ||||||
| Transmitter type | DFB | DFB | FP | DFB | FP | DFB | |
| Receiver type | PIN | ||||||
| Reach | 40 km (131,233.60 ft.) | 20 km (65,616.80 ft.) | 3 km (9,842.52 ft.) | ||||
| Bit error ratio (BER) | 1.00E-12 | ||||||
| Data diagnosis-capable (DDM/DOM) | Yes | ||||||
| Power consumption | ≤ 1.5 W | ||||||
| Transmitter Optical Parameters | |||||||
| Wavelength | 1310 nm TX 1550 nm RX | 1550 nm TX 1310 nm RX | 1310 nm TX 1550 nm RX | 1550 nm TX 1310 nm RX | 1310 nm TX 1550 nm RX | 1550 nm TX 1310 nm RX | |
| Max. transmit power (AVG) | 0 dBm | –3 dBm | |||||
| Min. transmit power (AVG) | –5 dBm | –9 dBm | |||||
| Min. extinction ratio | ≥ 9 dB | ||||||
| Receiver Optical Parameters | |||||||
| Receive sensitivity (OMA) | < –23 dBm | < –20 dBm | < –22 dBm | ||||
| Overload optical power (AVG) | –3 dBm | ||||||
