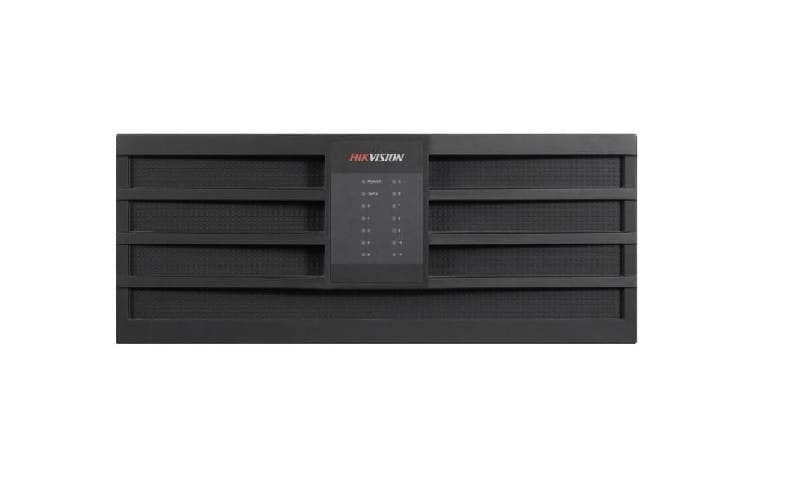

HIKVISION VIDEO WALL CONTROLLER (DS-C10S)
₱470,160.00
- High-performance, full-featured video wall controller
- 9 slot, 11 slots and 22 slot chassis’ are suitable for a wide range of video walls
- Manage various types of input signals
- Flexible live view window operation
- User-friendly software both for mobile devices and PC
- A signal source can be displayed on the M × N (M ≥ 1, N ≥ 1) display units.
- Multiple signal sources are supported, including VGA, DVI, HDMI, SDI, YpbPr, DP, HDBaseT. Up to 3840 × 2160@30 Hz resolution is supported for HDMI, DP and HDBaseT signal inputs.
- Distributed network signal sources configurable to raise the signal source capacity and transmission distance.
- Live view in the roaming window and live view list.
- Fluent video output without frame extraction to guarantee the lossless output of 60 frames.
- An enhanced network decoding board supports H.264 and H.265 compression standard and can display network signal of 2-ch@8.0 MP, 2-ch@6.0 MP, 2-ch@5.0 MP, 8-ch@1080p, 16-ch@720p and 32-ch@D1 and local video files.
- Auto sub-stream decoding if the output resolution of decoding window is lower than 640 × 640.
- Tile mode available and the video layers can be extended to 8 layers in tile mode.
- Supports 1/4/9/16 window division modes and full-screen switch of the window. (Unavailable for the LED mode)
- The window can be kept sticking on top without being affected by the operations of other windows and kept open without being affected by the scene or plan configuration.
- Up to 6 image layers can be displayed on one screen, including one virtual LED image layer and a background layer.
- The LED background color is adjustable. The resolution of background layer is up to 8192 × 8192.
- The tile mode can be saved in the scene.
- Video wall mirror configurable to mirror the content of one video wall area to another area.
- Users have the permission to manage the signal sources and video wall.
- Built-in matrix feature for opening a signal source on several windows simultaneously.
- Matrix protocol of ZT1.0, ZT2.0, Extron, Creator and HIK_CVBS_96P supported and up to 4 matrixes with maximum 512 input channels of each matrix supported.
- Supports crossing-window video roaming. (Unavailable for the tile mode)
- Supports adjusting the output to match the virtual output of client software with real output of controller.
- Up to 16 devices can be managed and up to 5 virtual video walls can be displayed by a client server.
- Remote control via iOS client server, Android client server and IE browser.
- Supports opening windows to display video signal, with the window position and size adjustable.
- Supports SADP searching active IP address and resetting the password of administrator.
- The fan speed of the chassis is self-adaptive to the temperature.
- Supports both the LED screen mode with small pixel pitch and the normal screen mode.
- Self-adaptive to the configured LED resolution.
- Supports custom resolution access of DP, DVI and HDMI signal sources and characters overlap.
- Device running status, sub-board status, and fan status can be checked.
- Supports remote interaction.
- Compatible with wireless projection.
- 4K outputs support joint display.
- Scene switching for local signal sources can be done in seconds without black screens.
- Image lossless collecting, transmitting and displaying without color cast, color bleed and word blur.
- Chassis
- ChassisStandard 4U chassis Standard 8U chassis
- Service Board Slot9 (6 × Input, 3 ×Output) 11 (6 × Input, 5 ×Output) 22 (12 × Input, 10 ×Output)
- Interface
- USB Interface1 × USB 2.0 (Reserved)
- Serial Interface2
- Network Interface1, 10M/100M/1000M self-adaptive Ethernet interface
- General
- Dimensions(W × D × H)
442.4 × 352 × 177 mm (17.4 × 13.9 × 7 inch)
442.4 × 352 × 354 mm (17.4 × 13.9 × 13.9 inch)
- Working Temperature+0° C to +50° C (+32° F to +122° F )
- ≤ 20 kg (full-loaded) ≤ 35 kg (full-loaded)
- Power Supply
100 to 240 VAC, 50/60 Hz
A build-in power supply
Build-in redundant power supply
- Power Consumption≤ 250 W (full-loaded) ≤ 450 W (full-loaded)
- Working Humidity10 to 90% (Non-condensing)
- Cascading
- Cascading Interface2, SYNC OUT/IN (reserved)
- Decoding
- Decoding Capability2-ch@8 MP (low frame rate), 2-ch@6 MP, 2-ch@5 MP, 8-ch@1080p,16-ch@720p, or 32-ch@D1
- Input and Output
- Video Input
4 × DVI interface
4 × VGA interface
4 × HDMI interface
4 × SDI interface, PAL/NTSC self-adaptive
4 × YPbPr interface
4 × DP interface
4 × HDBaseT interface
- Video Input Resolution
SDI Input: 720P@25Hz, 720P@30Hz, 720P@50Hz, 720P@60Hz, 1080P@25Hz,1080P@30Hz, 1080P@50Hz, 1080P@60Hz;DVI Input: 720P@50Hz, 720P@60Hz, 1080P@50Hz，1080P@60Hz, 1600 ×1200@60Hz, 1920 × 1200@60Hz
VGA Input: 720P@50Hz, 720P@60Hz, 1080P@50Hz, 1080P@60Hz, 1600 ×1200@60Hz, 1920 × 1200@60Hz
The VGA to DVI adaptor is required for VGA input.
HDMI Input: 720P@50Hz, 720P@60Hz, 1080P@50Hz, 1080P@60Hz, 1600 ×1200@60Hz, 1920 × 1200@60Hz, 3840 × 2160@30Hz
Only No. 1 and 3 interfaces support 3840 × 2160@30Hz.
SDI Input: 720P@25Hz, 720P@30Hz, 720P@50Hz, 720P@60Hz, 1080P@25Hz,1080P@30Hz, 1080P@50Hz, 1080P@60Hz
YPbPr Input: 576P@50Hz, 480P@60Hz, 720P@50Hz, 720P@60Hz, 1080P@50Hz,1080P@60Hz
The DVI to YPbPr adaptor is required for YPbPr input.
DP Input: 720P@50Hz, 720P@60Hz, 1080P@50Hz, 1080P@60Hz, 1600 ×1200@60Hz, 1920 × 1200@60Hz, 3840 × 2160@30Hz
Only No. 1 and 3 interfaces support 3840 × 2160@30Hz.
HDNaseT Input: 720P@50Hz, 720P@60Hz, 1080P@50Hz, 1080P@60Hz, 1600 ×1200@60Hz, 1920 × 1200@60Hz, 3840 × 2160@30Hz
Only No. 1 and 3 interfaces support 3840 × 2160@30Hz.
- Video Output
4 × VGA interface
4 × DVI interface
4 × HDMI interface
- Video Output Resolution
VGA Output: 1360 × 768@60Hz, 1400 × 1050@60Hz, 1280 × 720@60Hz, 1024 ×768@60Hz, 1920 × 1080@60Hz
The DVI to VGA adaptor is required for VGA output.
DVI Output: 1360 × 768@60Hz, 1400 × 1050@60Hz, 1280 × 720@60Hz, 1024 ×768@60Hz, 1920 × 1080@60Hz, 1920 × 1200@60Hz
HDMI Output: 1360 × 768@60Hz, 1400 × 1050@60Hz, 1280 × 720@60Hz, 1024 ×768@60Hz, 1920 × 1080@60Hz, 1920 × 1200@60Hz, 3840 ×2160@30Hz
