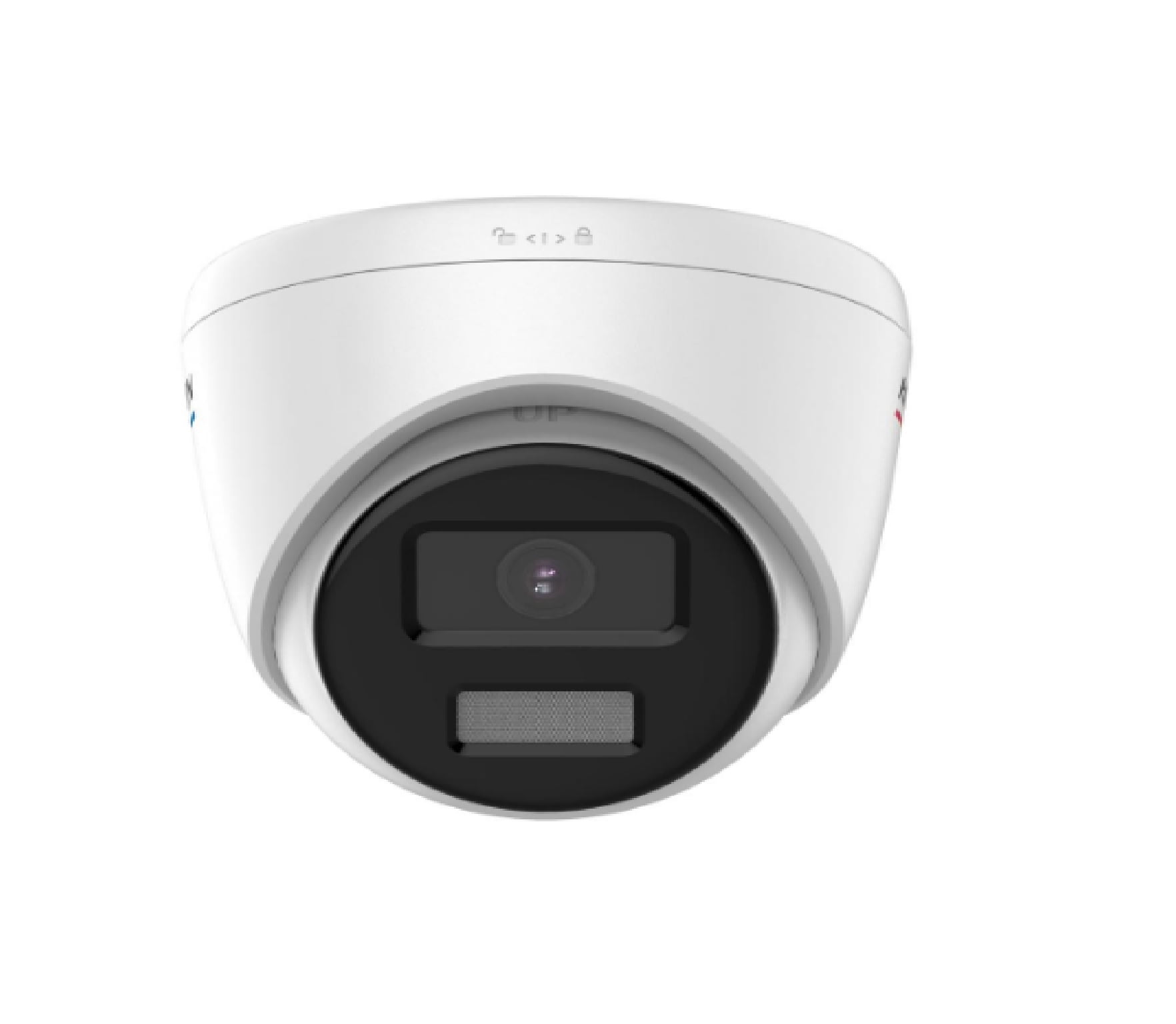

HIKVISION 2MP COLORVU MD 2.0 FIXED TURRET NETWORK CAMERA (DS-2CD1327G2-LUF)

₱4,570.00

High quality imaging with 2 MP resolution
24/7 colorful imaging
Support Human and Vehicle Detection
Water and dust resistant (IP67)
Efficient H.265+ compression technology
-F model supports on-board storage up to 512 GB (SD card slot) (Optional)
-U model supports built-in microphone for real-time audio security (Optional)

SKU: HIKVISION 2MP COLORVU MD 2.0 FIXED TURRET NETWORK CAMERA (DS-2CD1327G2-LUF) Categories: Hikvision, Hikvision Dome, Hikvision HD Analog and IP Cameras Tag: HIKVISION 2MP COLORVU MD 2.0 FIXED TURRET NETWORK CAMERA (DS-2CD1327G2-LUF)

Description

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time1/3 s to 1/100,000 s
Day & Night24/7 color imaging
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°
4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
Lens MountM12
Iris TypeFixed
ApertureF1.0
Depth Of Field
2.8 mm: 1.5 m to ∞
4 mm: 2.1 m to ∞

DORI
DORI
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region Of Interest (ROI)1 fixed region(s) for main stream

Audio
Audio Type-U: Mono sound
Environment Noise Filtering-U: Yes
Audio Sampling Rate-U: 8 kHz/16 kHz
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
ClientiVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone-U: Yes
Reset Key-F: Yes

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

General
Power
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic
Dimension
Ø109.9 mm × 103.6 mm (Ø4.3 × 4.1\”)”
Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight
-L: Approx. 370 g (0.8 lb.); -LUF: Approx. 380 g (0.8 lb.)
With Package Weight
-L: Approx. 600 g (1.3 lb.); -LUF: Approx. 620 g (1.4 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
