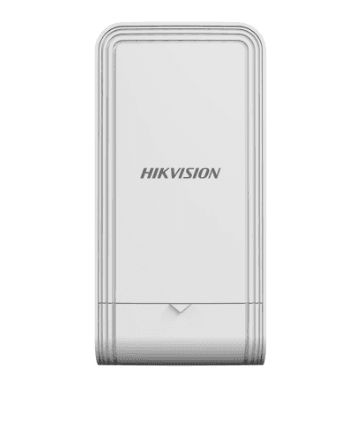

HIKVISION -2.4GHZ 300MBPS 1KM WIRELESS CPE (DS-3WF0FC-2N/O)

₱2,630.00

Outdoor 2.4GHz wireless bridge CPE, Max.distance 1km, 2×2 MIMO antenna with
300Mbps thoughput, 7dBi gain, 802.11n, Angle H: 35°, 2 100Mbps RJ45 ports, Support
12 VDC or Passive PoE Power supply, Support Web, iVMS-4200, HCP

SKU: HIKVISION -2.4GHZ 300MBPS 1KM WIRELESS CPE (DS-3WF0FC-2N/O) Categories: 2MP Resolution, Hikvision, Wireless Bridge Tag: HIKVISION -2.4GHZ 300MBPS 1KM WIRELESS CPE (DS-3WF0FC-2N/O)

Description

General
Product Dimensions (W × H × D)81 mm × 165 mm × 52 mm (3.62” × 7.36” × 2.28”)
Package Dimensions (W × H × D)132 mm × 228 mm × 91 mm (5.19″ × 8.97″ × 3.58″)
Net Weight0.19 kg (0.42 lb)
Gross Weight0.49 kg (1.08 lb)
Packing ListWireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,10/100 Mbps PoE Injector × 1,Binding Tape × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
Packing MethodSingle unit packing
Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
Working Humidity5% to 95% (no condensation)
Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity5% to 95% (no condensation)
Installation ModePole Mounting
Ingress ProtectionIP55
Power Consumption1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W

Wireless Parameter
Max. Transmission Rate of Air Interface≤ 300 Mbps
Wireless StandardIEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
Working Frequency Band2400 MHz ~ 2483.5 MHz
Receiving Sensitivity-87±2 dBm @HT40 MCS0
Antenna Gain7 dBi
Antenna Angle(H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
Transmitting Power23 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)
Throughput RatePTP: ,90 Mbps/0.2 KM(HT40),75 Mbps/0.5 KM(HT40),40 Mbps/1 KM(HT40),PTMP(1 to 4): ,20 Mbps/1 KM(HT40)

Hardware Parameter
Network Interface2 × 10/100 Mbps RJ45 ports
LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
ResetHardware resetting button
Power Supply12-24 VDC Passive PoE

Software Function
Application FunctionTDMA,DFS,TPC,IFM,IPM
Channel Width10/20/40 MHz
Channel SelectionAuto/manual selection
Security ModeWPA2-PSK
Security MechanismWireless network name hidden
Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
Management MethodHCP,Web,iVMS-4200,HPP
System LogSyslog,Control center information
UpgradeWeb,iVMS-4200,HCP,HPP
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Reboot device
2. Restore device
3. Display the topology information
4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate
5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
6. Bridge alignment
7. Spectrum scanning

Approval
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
